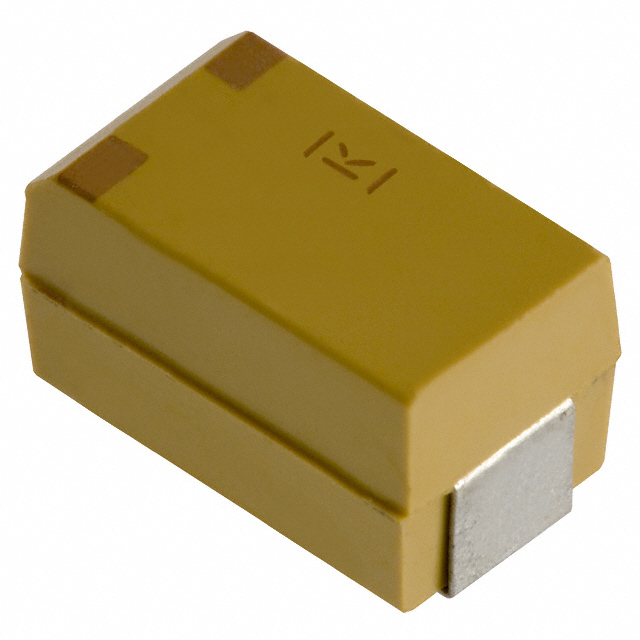

T510X476M035ATE055

Active

KEMET

CAPACITOR,47UF,35VDC,20-% TOL,20+% TOL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet T510X476M035ATE055

T510X476M035ATE055

Active

KEMET

CAPACITOR,47UF,35VDC,20-% TOL,20+% TOL

Deep-Dive with AI

DocumentsDatasheet T510X476M035ATE055

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T510X476M035ATE055

Capacitance	47 µF
ESR (Equivalent Series Resistance)	55 mOhm
Features	General Purpose
Height - Seated (Max) [Max]	0.169 "
Height - Seated (Max) [Max]	4.3 mm
Lifetime @ Temp.	2000 Hrs
Manufacturer Size Code	X
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	7343 Metric
Package / Case	2917
Size / Dimension [x]	0.287 "
Size / Dimension [x]	7.3 mm
Size / Dimension [y]	4.3 mm
Size / Dimension [y]	0.169 "
Tolerance	20 %
Type	Molded
Voltage - Rated	35 V

T510X Series

Part	Voltage - Rated	Capacitance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Package / Case	Manufacturer Size Code	Features	Operating Temperature [Min]	Operating Temperature [Max]	Type	Tolerance	Mounting Type	ESR (Equivalent Series Resistance)	Lifetime @ Temp.	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Grade	Ratings	Qualification
KEMET T510X227M016ATE040	16 V	220 µF	0.169 "	4.3 mm	7343 Metric	2917	X	General Purpose	-55 °C	125 °C	Molded	20 %	Surface Mount	40 mOhm	2000 Hrs	4.3 mm	0.287 "	7.3 mm	0.169 "
KEMET T510X476M035ATE055	35 V	47 µF	0.169 "	4.3 mm	7343 Metric	2917	X	General Purpose	-55 °C	125 °C	Molded	20 %	Surface Mount	55 mOhm	2000 Hrs	4.3 mm	0.287 "	7.3 mm	0.169 "
KEMET T510X226M035ATE100	35 V	22 µF	0.169 "	4.3 mm	7343 Metric	2917	X	General Purpose	-55 °C	125 °C	Molded	20 %	Surface Mount	100 mOhm	2000 Hrs	4.3 mm	0.287 "	7.3 mm	0.169 "
KEMET T510X227K016ATE025	16 V	220 µF	0.169 "	4.3 mm	7343 Metric	2917	X	General Purpose	-55 °C	125 °C	Molded	10 %	Surface Mount	25 mOhm	2000 Hrs	4.3 mm	0.287 "	7.3 mm	0.169 "
KEMET T510X157K016ATE040	16 V	150 µF	0.169 "	4.3 mm	7343 Metric	2917	X	General Purpose	-55 °C	125 °C	Molded	10 %	Surface Mount	40 mOhm	2000 Hrs	4.3 mm	0.287 "	7.3 mm	0.169 "
KEMET T510X337M010ATE035	10 V	330 µF	0.169 "	4.3 mm	7343 Metric	2917	X	General Purpose	-55 °C	125 °C	Molded	20 %	Surface Mount	35 mOhms	2000 Hrs	4.3 mm	0.287 "	7.3 mm	0.169 "
KEMET T510X686M025ATE045	25 VDC	68 µF	0.169 "	4.3 mm	7343 Metric	2917	X	General Purpose	-55 °C	125 °C	Molded	20 %	Surface Mount	45 mOhm	2000 Hrs	4.3 mm	0.287 "	7.3 mm	0.169 "
KEMET T510X337M010AHE035	10 V	330 µF	0.169 "	4.3 mm	7343 Metric	2917	X	General Purpose	-55 °C	125 °C	Molded	20 %	Surface Mount	35 mOhm	2000 Hrs	4.3 mm	0.287 "	7.3 mm	0.169 "
KEMET T510X687K006ATA023	6 VDC	680 µF	0.169 "	4.3 mm	7343 Metric	2917	X	Automotive	-55 °C	125 °C	Molded	10 %	Surface Mount	23 mOhm	2000 Hrs	4.3 mm	0.287 "	7.3 mm	0.169 "	Automotive	AEC-Q200	AEC-Q200
KEMET T510X106K050ATE090	50 VDC	10 µF	0.169 "	4.3 mm	7343 Metric	2917	X	General Purpose	-55 °C	125 °C	Molded	10 %	Surface Mount	90 mOhm	2000 Hrs	4.3 mm	0.287 "	7.3 mm	0.169 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 8.16
		10	$ 6.11
		50	$ 5.30
		100	$ 5.04
	Digi-Reel®	1	$ 8.16
		10	$ 6.11
		50	$ 5.30
		100	$ 5.04
	Tape & Reel (TR)	500	$ 4.62
		1000	$ 4.48
		1500	$ 4.42
Newark	Each (Supplied on Full Reel)	400	$ 4.55
		800	$ 4.42
		1600	$ 4.16
		2400	$ 3.96

Description

General part information

T510X Series

47 µF Molded Tantalum Capacitors 35 V 2917 (7343 Metric) 55mOhm
