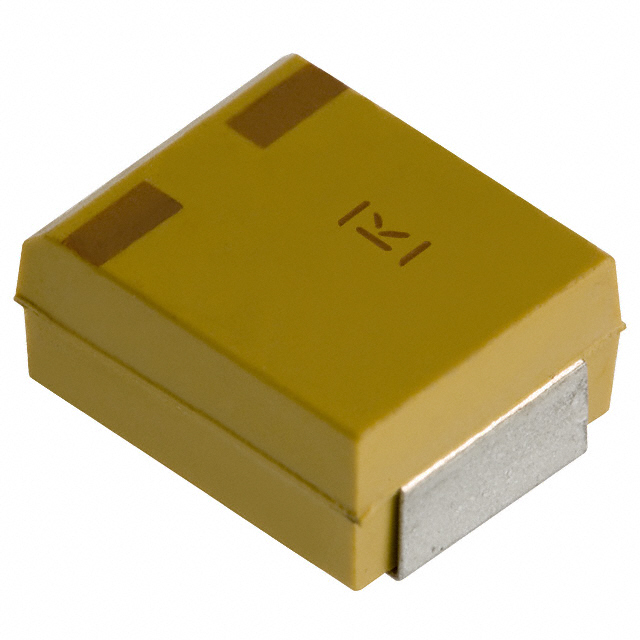

T510X157K016ATE040

Active

KEMET

CAPACITOR,150UF,16VDC,10-% TOL,10+% TOL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet T510X157K016ATE040 +1

T510X157K016ATE040

Active

KEMET

CAPACITOR,150UF,16VDC,10-% TOL,10+% TOL

Deep-Dive with AI

DocumentsDatasheet T510X157K016ATE040 +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T510X157K016ATE040

Capacitance	150 µF
ESR (Equivalent Series Resistance)	40 mOhm
Features	General Purpose
Height - Seated (Max) [Max]	0.169 "
Height - Seated (Max) [Max]	4.3 mm
Lifetime @ Temp.	2000 Hrs
Manufacturer Size Code	X
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	7343 Metric
Package / Case	2917
Size / Dimension [x]	0.287 "
Size / Dimension [x]	7.3 mm
Size / Dimension [y]	4.3 mm
Size / Dimension [y]	0.169 "
Tolerance	10 %
Type	Molded
Voltage - Rated	16 V

T510X Series

Part	Voltage - Rated	Capacitance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Package / Case	Manufacturer Size Code	Features	Operating Temperature [Min]	Operating Temperature [Max]	Type	Tolerance	Mounting Type	ESR (Equivalent Series Resistance)	Lifetime @ Temp.	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Grade	Ratings	Qualification
KEMET T510X227M016ATE040	16 V	220 µF	0.169 "	4.3 mm	7343 Metric	2917	X	General Purpose	-55 °C	125 °C	Molded	20 %	Surface Mount	40 mOhm	2000 Hrs	4.3 mm	0.287 "	7.3 mm	0.169 "
KEMET T510X476M035ATE055	35 V	47 µF	0.169 "	4.3 mm	7343 Metric	2917	X	General Purpose	-55 °C	125 °C	Molded	20 %	Surface Mount	55 mOhm	2000 Hrs	4.3 mm	0.287 "	7.3 mm	0.169 "
KEMET T510X226M035ATE100	35 V	22 µF	0.169 "	4.3 mm	7343 Metric	2917	X	General Purpose	-55 °C	125 °C	Molded	20 %	Surface Mount	100 mOhm	2000 Hrs	4.3 mm	0.287 "	7.3 mm	0.169 "
KEMET T510X227K016ATE025	16 V	220 µF	0.169 "	4.3 mm	7343 Metric	2917	X	General Purpose	-55 °C	125 °C	Molded	10 %	Surface Mount	25 mOhm	2000 Hrs	4.3 mm	0.287 "	7.3 mm	0.169 "
KEMET T510X157K016ATE040	16 V	150 µF	0.169 "	4.3 mm	7343 Metric	2917	X	General Purpose	-55 °C	125 °C	Molded	10 %	Surface Mount	40 mOhm	2000 Hrs	4.3 mm	0.287 "	7.3 mm	0.169 "
KEMET T510X337M010ATE035	10 V	330 µF	0.169 "	4.3 mm	7343 Metric	2917	X	General Purpose	-55 °C	125 °C	Molded	20 %	Surface Mount	35 mOhms	2000 Hrs	4.3 mm	0.287 "	7.3 mm	0.169 "
KEMET T510X686M025ATE045	25 VDC	68 µF	0.169 "	4.3 mm	7343 Metric	2917	X	General Purpose	-55 °C	125 °C	Molded	20 %	Surface Mount	45 mOhm	2000 Hrs	4.3 mm	0.287 "	7.3 mm	0.169 "
KEMET T510X337M010AHE035	10 V	330 µF	0.169 "	4.3 mm	7343 Metric	2917	X	General Purpose	-55 °C	125 °C	Molded	20 %	Surface Mount	35 mOhm	2000 Hrs	4.3 mm	0.287 "	7.3 mm	0.169 "
KEMET T510X687K006ATA023	6 VDC	680 µF	0.169 "	4.3 mm	7343 Metric	2917	X	Automotive	-55 °C	125 °C	Molded	10 %	Surface Mount	23 mOhm	2000 Hrs	4.3 mm	0.287 "	7.3 mm	0.169 "	Automotive	AEC-Q200	AEC-Q200
KEMET T510X106K050ATE090	50 VDC	10 µF	0.169 "	4.3 mm	7343 Metric	2917	X	General Purpose	-55 °C	125 °C	Molded	10 %	Surface Mount	90 mOhm	2000 Hrs	4.3 mm	0.287 "	7.3 mm	0.169 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	500	$ 4.51
Newark	Each (Supplied on Full Reel)	400	$ 4.55
		800	$ 4.42
		1600	$ 4.16
		2400	$ 3.96

Description

General part information

T510X Series

150 µF Molded Tantalum Capacitors 16 V 2917 (7343 Metric) 40mOhm @ 100kHz

Documents

Technical documentation and resources

Datasheet

T510X157K016ATE040

Manufacturer Catalogue EN

Datasheet
