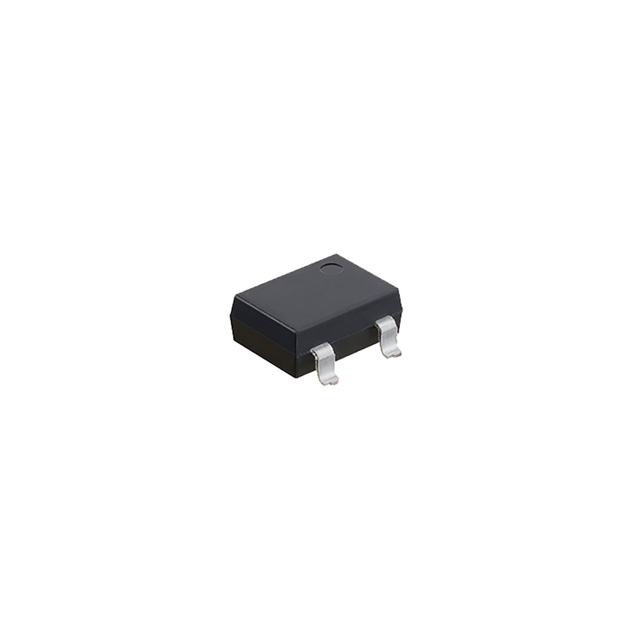

AQV258H5A

Active

Panasonic Electric Works

SSR RELAY SPST-NO 20MA 0-1500V

Search across all available documentation for this part.

Active

Panasonic Electric Works

SSR RELAY SPST-NO 20MA 0-1500V

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Package / Case	Package / Case	Load Current	Supplier Device Package	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Load [Max]	Voltage - Input	Termination Style	On-State Resistance (Max) [Max]	Mounting Type	Package / Case
Panasonic Electric Works AQV258H5A	7.62 mm	0.3 in 5 Leads	6-SMD	20 mA	6-SMD	AC DC	85 °C	-40 °C	1500 V	1.32 VDC	Gull Wing	500 Ohms	Surface Mount
Panasonic Electric Works AQV258A	0.3 in		6-SMD	20 mA	6-SMD	AC DC	85 °C	-40 °C	1500 V	1.14 VDC	Gull Wing	500 Ohms	Surface Mount	7.62 mm
Panasonic Electric Works AQV258H5AX	7.62 mm	0.3 in 5 Leads	6-SMD	20 mA	6-SMD	AC DC	85 °C	-40 °C	1500 V	1.32 VDC	Gull Wing	500 Ohms	Surface Mount
Panasonic Electric Works AQV258AZ	0.3 in		6-SMD	20 mA	6-SMD	AC DC	85 °C	-40 °C	1500 V	1.14 VDC	Gull Wing	500 Ohms	Surface Mount	7.62 mm
Panasonic Electric Works AQV258H5	7.62 mm	0.3 in 5 Leads	6-DIP	20 mA	6-DIP	AC DC	85 °C	-40 °C	1500 V	1.32 VDC	PC Pin	500 Ohms	Through Hole
Panasonic Electric Works AQV258H5AZ	7.62 mm	0.3 in 5 Leads	6-SMD	20 mA	6-SMD	AC DC	85 °C	-40 °C	1500 V	1.32 VDC	Gull Wing	500 Ohms	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Solid State SPST-NO (1 Form A) 6-SMD (0.300", 7.62mm), 5 Leads

Technical documentation and resources

No documents available
