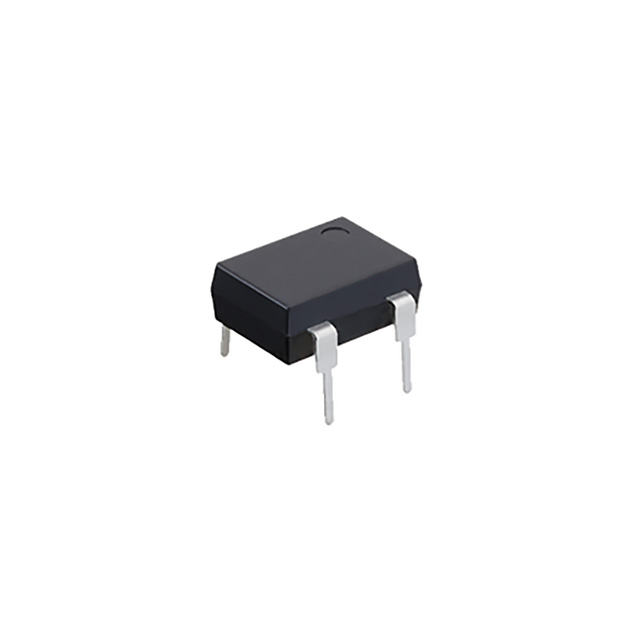

AQV258H5

Active

Panasonic Electric Works

SSR RELAY SPST-NO 20MA 0-1500V

Search across all available documentation for this part.

Active

Panasonic Electric Works

SSR RELAY SPST-NO 20MA 0-1500V

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Package / Case	Package / Case	Load Current	Supplier Device Package	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Load [Max]	Voltage - Input	Termination Style	On-State Resistance (Max) [Max]	Mounting Type	Package / Case
Panasonic Electric Works AQV258H5A	7.62 mm	0.3 in 5 Leads	6-SMD	20 mA	6-SMD	AC DC	85 °C	-40 °C	1500 V	1.32 VDC	Gull Wing	500 Ohms	Surface Mount
Panasonic Electric Works AQV258A	0.3 in		6-SMD	20 mA	6-SMD	AC DC	85 °C	-40 °C	1500 V	1.14 VDC	Gull Wing	500 Ohms	Surface Mount	7.62 mm
Panasonic Electric Works AQV258H5AX	7.62 mm	0.3 in 5 Leads	6-SMD	20 mA	6-SMD	AC DC	85 °C	-40 °C	1500 V	1.32 VDC	Gull Wing	500 Ohms	Surface Mount
Panasonic Electric Works AQV258AZ	0.3 in		6-SMD	20 mA	6-SMD	AC DC	85 °C	-40 °C	1500 V	1.14 VDC	Gull Wing	500 Ohms	Surface Mount	7.62 mm
Panasonic Electric Works AQV258H5	7.62 mm	0.3 in 5 Leads	6-DIP	20 mA	6-DIP	AC DC	85 °C	-40 °C	1500 V	1.32 VDC	PC Pin	500 Ohms	Through Hole
Panasonic Electric Works AQV258H5AZ	7.62 mm	0.3 in 5 Leads	6-SMD	20 mA	6-SMD	AC DC	85 °C	-40 °C	1500 V	1.32 VDC	Gull Wing	500 Ohms	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	50	$ 9.03

General part information

Solid State SPST-NO (1 Form A) 6-DIP (0.300", 7.62mm), 5 Leads

Technical documentation and resources

No documents available
