1571999-4

Active

TE Connectivity Raychem Cable Protection

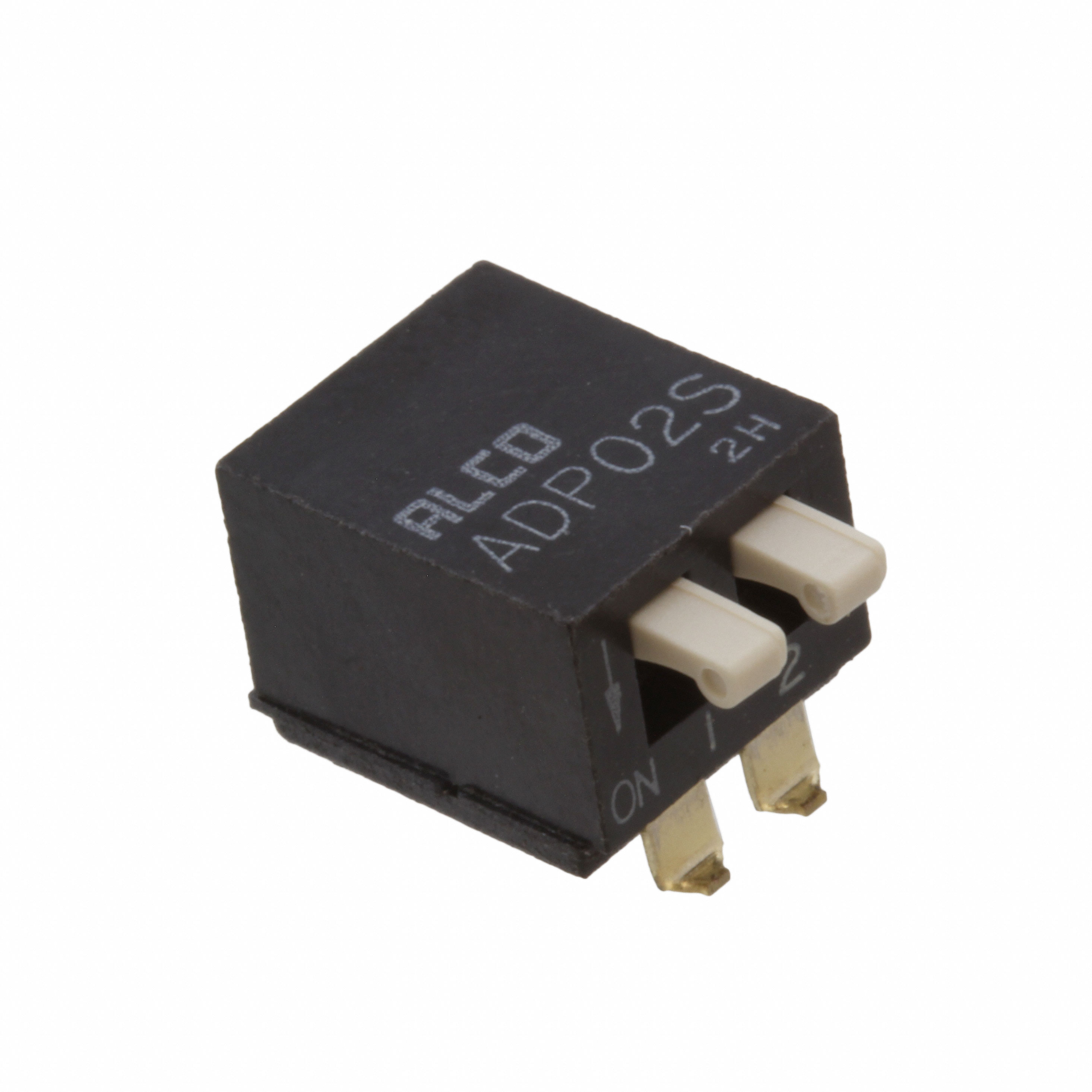

SWITCH DIP OFF ON SPST 2 PIANO 0.1A 24VDC GULL WING 2.54MM SMD T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsADE _ADP_ADF_Datasheet

1571999-4

Active

TE Connectivity Raychem Cable Protection

SWITCH DIP OFF ON SPST 2 PIANO 0.1A 24VDC GULL WING 2.54MM SMD T/R

Deep-Dive with AI

DocumentsADE _ADP_ADF_Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1571999-4

Actuator Level	Raised
Actuator Type	Piano
Body Material	Polyphenylene Sulfide (PPS)
Circuit	SPST
Contact Finish	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	25 mA
Electrical Life	1000 Cycles
Height Above Board	6.93 mm
Height Above Board	0.273 in
Length [x]	7 mm
Length [x]	0.276 in
Mechanical Life	1000 Cycles
Mounting Type	Surface Mount, Right Angle
Number of Positions	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Pitch	Full
Pitch [x]	0.1 in
Pitch [x]	2.54 mm
Termination Style	Gull Wing
Voltage Rating	24 VDC
Washable	True

ALCOSWITCH DIP GDH Series

Part	Contact Finish	Mechanical Life	Electrical Life	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Termination Style	Voltage Rating	Actuator Type	Height Above Board	Height Above Board	Circuit	Pitch [x]	Pitch	Pitch [x]	Current Rating (Amps)	Contact Material	Length [x]	Length [x]	Number of Positions	Body Material	Actuator Level	Length	Length	Height Above Board [z]	Height Above Board [z]
TE Connectivity Raychem Cable Protection 1-1571999-9	Gold	1000 Cycles	1000 Cycles	-30 ░C	85 °C	Surface Mount Right Angle	Gull Wing	24 VDC	Piano	6.93 mm	0.273 in	SPST	0.1 in	Full	2.54 mm	25 mA	Copper Alloy	0.678 in	17.22 mm	6	Polyphenylene Sulfide (PPS)	Raised
TE Connectivity Raychem Cable Protection 1571999-4	Gold	1000 Cycles	1000 Cycles	-30 ░C	85 °C	Surface Mount Right Angle	Gull Wing	24 VDC	Piano	6.93 mm	0.273 in	SPST	0.1 in	Full	2.54 mm	25 mA	Copper Alloy	0.276 in	7 mm	2	Polyphenylene Sulfide (PPS)	Raised
TE Connectivity Raychem Cable Protection 4-1571999-2						Surface Mount			Piano			SPST								2		Raised
TE Connectivity Raychem Cable Protection 1-1571999-4	Gold	1000 Cycles	1000 Cycles	-30 ░C	85 °C	Surface Mount Right Angle	Gull Wing	24 VDC	Piano	6.93 mm	0.273 in	SPST	0.1 in	Full	2.54 mm	25 mA	Copper Alloy				Polyphenylene Sulfide (PPS)	Raised	14.68 mm	0.578 "
TE Connectivity Raychem Cable Protection 1571999-6	Gold	1000 Cycles	1000 Cycles	-30 ░C	85 °C	Through Hole Right Angle	PC Pin	24 VDC	Piano			SPST	0.1 in	Full	2.54 mm	25 mA	Copper Alloy			4	Polyphenylene Sulfide (PPS)	Raised			0.287 in	7.3 mm
TE Connectivity Raychem Cable Protection 3-1571999-9						Surface Mount			Piano			SPST								10		Raised

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	500	$ 1.34
		5000	$ 1.34
		10000	$ 1.18
		25000	$ 1.07
Digikey	Cut Tape (CT)	1	$ 3.18
		10	$ 3.00
		25	$ 2.73
		100	$ 2.36
		250	$ 2.14
		500	$ 1.99
		1000	$ 1.84
		2500	$ 1.68
	Tape & Reel (TR)	5000	$ 1.34

Description

General part information

ALCOSWITCH DIP GDH Series

DIP Switch, Gold Contact Plating, Black, Polyphenylene Sulfide (PPS), 2 Switch, -30 – 85 °C, Piano (Side Actuated), 1 A Contact Rating, ALCOSWITCH DIP

Documents

Technical documentation and resources

ADE _ADP_ADF_Datasheet

Datasheets & Catalog Pages
