TE Connectivity Raychem Cable Protection

SWITCH PIANO DIP SPST 0.025A 24V

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

SWITCH PIANO DIP SPST 0.025A 24V

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish	Mechanical Life	Electrical Life	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Termination Style	Voltage Rating	Actuator Type	Height Above Board	Height Above Board	Circuit	Pitch [x]	Pitch	Pitch [x]	Current Rating (Amps)	Contact Material	Length [x]	Length [x]	Number of Positions	Body Material	Actuator Level	Length	Length	Height Above Board [z]	Height Above Board [z]
TE Connectivity Raychem Cable Protection 1-1571999-9	Gold	1000 Cycles	1000 Cycles	-30 ░C	85 °C	Surface Mount Right Angle	Gull Wing	24 VDC	Piano	6.93 mm	0.273 in	SPST	0.1 in	Full	2.54 mm	25 mA	Copper Alloy	0.678 in	17.22 mm	6	Polyphenylene Sulfide (PPS)	Raised
TE Connectivity Raychem Cable Protection 1571999-4	Gold	1000 Cycles	1000 Cycles	-30 ░C	85 °C	Surface Mount Right Angle	Gull Wing	24 VDC	Piano	6.93 mm	0.273 in	SPST	0.1 in	Full	2.54 mm	25 mA	Copper Alloy	0.276 in	7 mm	2	Polyphenylene Sulfide (PPS)	Raised
TE Connectivity Raychem Cable Protection 4-1571999-2						Surface Mount			Piano			SPST								2		Raised
TE Connectivity Raychem Cable Protection 1-1571999-4	Gold	1000 Cycles	1000 Cycles	-30 ░C	85 °C	Surface Mount Right Angle	Gull Wing	24 VDC	Piano	6.93 mm	0.273 in	SPST	0.1 in	Full	2.54 mm	25 mA	Copper Alloy				Polyphenylene Sulfide (PPS)	Raised	14.68 mm	0.578 "
TE Connectivity Raychem Cable Protection 1571999-6	Gold	1000 Cycles	1000 Cycles	-30 ░C	85 °C	Through Hole Right Angle	PC Pin	24 VDC	Piano			SPST	0.1 in	Full	2.54 mm	25 mA	Copper Alloy			4	Polyphenylene Sulfide (PPS)	Raised			0.287 in	7.3 mm
TE Connectivity Raychem Cable Protection 3-1571999-9						Surface Mount			Piano			SPST								10		Raised

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	5000	$ 1.16

General part information

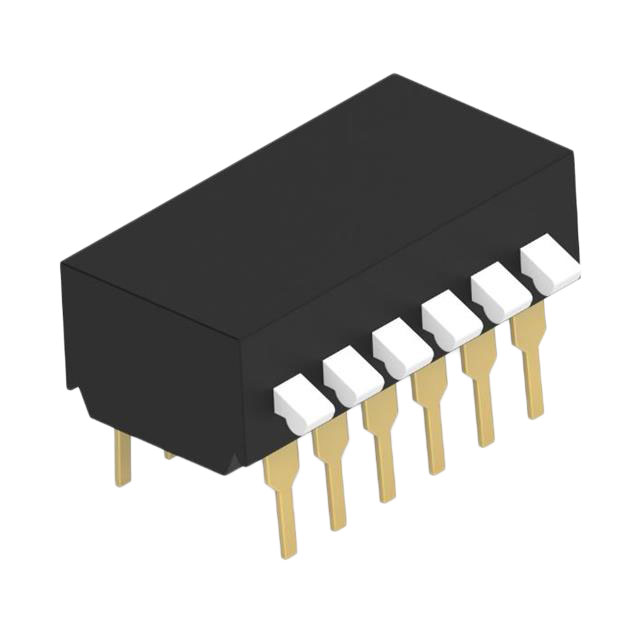

Dip Switch SPST 6 Position Surface Mount, Right Angle Piano Actuator 25mA 24VDC
