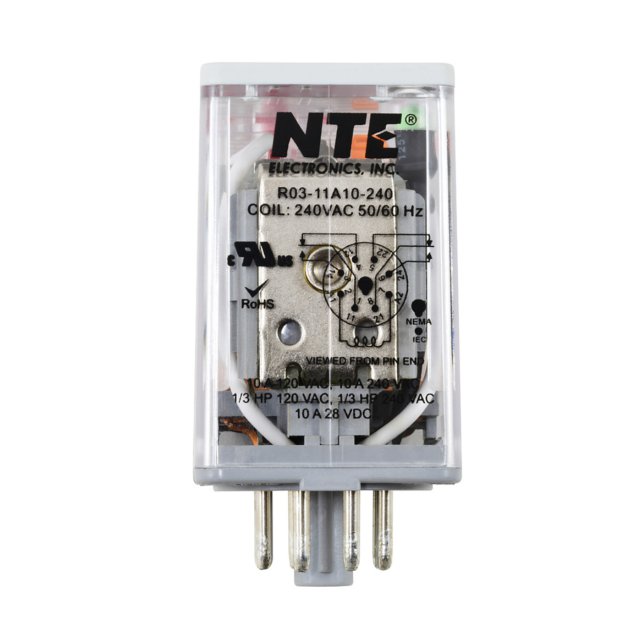

Specification	R03-11A10-240

Coil Voltage	240 V
Contact Form	Form, 2 Form C, C, 2, DPDT
Contact Rating (Current)	10 A
Features	Mechanical Indicator, Lighted Indicator, Test Button
Operate Time	20 ms
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Pin Count	8
Relay Type	General Purpose
Release Time	20 ms
Termination Style	Plug In

R03-11 Series

Part	Pin Count	Termination Style	Features	Relay Type	Operating Temperature (Min)	Operating Temperature (Max)	Release Time	Contact Rating (Current)	Operate Time	Coil Voltage	Contact Form
NTE Electronics, Inc R03-11D10-24	8	Plug In	Lighted Indicator Mechanical Indicator Test Button	General Purpose	-40 °C	85 °C	20 ms	10 A	20 ms	24 VDC	2 2 Form C C DPDT Form
NTE Electronics, Inc R03-11A10-120	8	Plug In	Lighted Indicator Mechanical Indicator Test Button	General Purpose	-40 °C	85 °C	20 ms	10 A	20 ms	120 V	2 2 Form C C DPDT Form
NTE Electronics, Inc R03-11D10-48	8	Plug In	Lighted Indicator Mechanical Indicator Test Button	General Purpose	-40 °C	85 °C	20 ms	10 A	20 ms	48 V	2 2 Form C C DPDT Form
NTE Electronics, Inc R03-11A10-240	8	Plug In	Lighted Indicator Mechanical Indicator Test Button	General Purpose	-40 °C	85 °C	20 ms	10 A	20 ms	240 V	2 2 Form C C DPDT Form
NTE Electronics, Inc R03-11D10-12	8	Plug In	Lighted Indicator Mechanical Indicator Test Button	General Purpose	-40 °C	85 °C	20 ms	10 A	20 ms	12 VAC	2 2 Form C C DPDT Form
