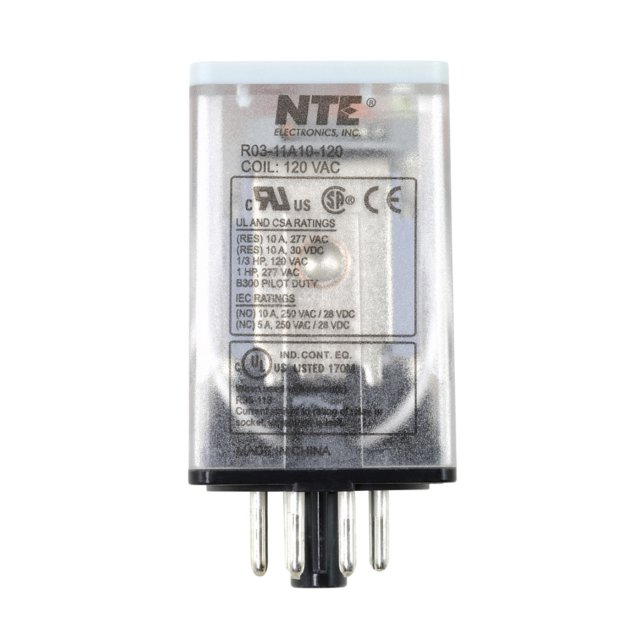

R03-11A10-120

Active

NTE Electronics, Inc

RELAY GEN PURPOSE DPDT 10A 120V

Search across all available documentation for this part.

Active

NTE Electronics, Inc

RELAY GEN PURPOSE DPDT 10A 120V

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Release Time	Relay Type	Coil Voltage	Operate Time	Termination Style	Contact Rating (Current)	Contact Form
NTE Electronics, Inc R03-11D10-24	85 °C	-40 °C	20 ms	General Purpose	24 VDC	20 ms	Plug In 8 Pin (Octal)	10 A	DPDT (2 Form C)
NTE Electronics, Inc R03-11A10-120	85 °C	-40 °C	20 ms	General Purpose	120 VAC	20 ms	Plug In 8 Pin (Octal)	10 A	DPDT (2 Form C)
NTE Electronics, Inc R03-11A10-240	85 °C	-40 °C	20 ms	General Purpose	240 VAC	20 ms	Plug In 8 Pin (Octal)	10 A	DPDT (2 Form C)
NTE Electronics, Inc R03-11D10-12	85 °C	-40 °C	20 ms	General Purpose	12 VDC	20 ms	Plug In 8 Pin (Octal)	10 A	DPDT (2 Form C)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

General Purpose Relay DPDT (2 Form C) 120VAC Coil

Technical documentation and resources

No documents available
