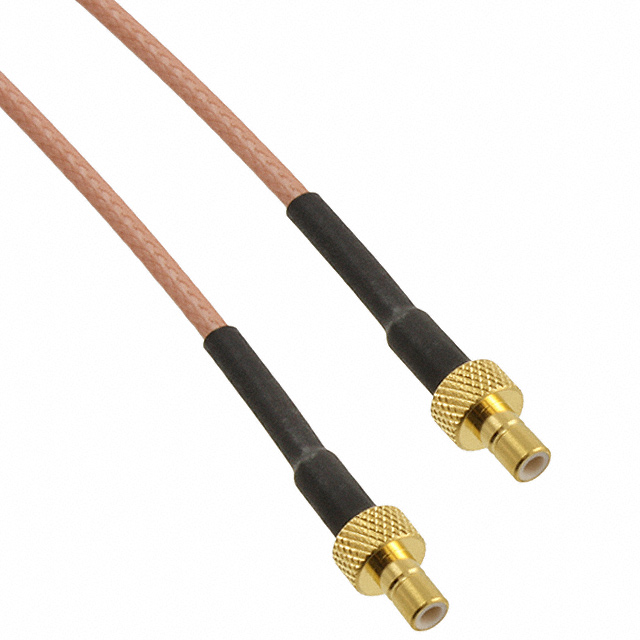

73072-BB-24

Active

Pomona Electronics

CBL ASSY SMB JACK TO JACK 24"

Search across all available documentation for this part.

Active

Pomona Electronics

CBL ASSY SMB JACK TO JACK 24"

Technical Specifications

Parameters and characteristics for this part

Part	2nd Connector Mounting Type	Features	1st Contact Gender	Color	1st Connector Mounting Type	1st Connector	Overall Impedance	2nd Contact Gender	Cable Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Max [Max]	Length	Length	Cable Type	2nd Connector	Style	Length
Pomona Electronics 73072-VV-24	Free Hanging (In-Line)	Shielded	Male	Copper	Free Hanging (In-Line)	SMB Jack	75 Ohms	Male	75 Ohms	-65 ░C	165 °C	2 GHz	24 "	609.6 mm	RG-179B	SMB Jack	SMB to SMB
Pomona Electronics 73072-BB-6	Free Hanging (In-Line)	Shielded	Male	Copper	Free Hanging (In-Line)	SMB Jack	50 Ohms	Male	50 Ohms	-65 ░C	165 °C	3 GHz	6 in	152.4 mm	RG-316	SMB Jack	SMB to SMB
Pomona Electronics 73072-BB-24	Free Hanging (In-Line)	Shielded	Male	Copper	Free Hanging (In-Line)	SMB Jack	50 Ohms	Male	50 Ohms	-65 ░C	165 °C	3 GHz	24 "	609.6 mm	RG-316	SMB Jack	SMB to SMB
Pomona Electronics 73072-VV-48	Free Hanging (In-Line)	Shielded	Male	Copper	Free Hanging (In-Line)	SMB Jack	75 Ohms	Male	75 Ohms	-65 ░C	165 °C	2 GHz	48 in	1200 mm	RG-179B	SMB Jack	SMB to SMB	4 ft
Pomona Electronics 73072-VV-60	Free Hanging (In-Line)	Shielded	Male	Copper	Free Hanging (In-Line)	SMB Jack	75 Ohms	Male	75 Ohms	-65 ░C	165 °C	2 GHz	5 '	1.5 m	RG-179B	SMB Jack	SMB to SMB	5 ft
Pomona Electronics 73072-VV-36	Free Hanging (In-Line)	Shielded	Male	Copper	Free Hanging (In-Line)	SMB Jack	75 Ohms	Male	75 Ohms	-65 ░C	165 °C	2 GHz	36 in	91.44 cm	RG-179B	SMB Jack	SMB to SMB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial SMB to SMB RG-316 24.00" (609.60mm)
