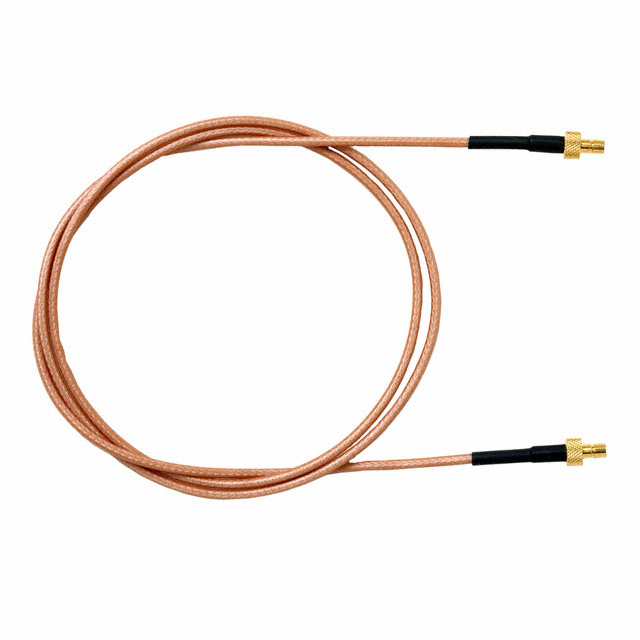

Specification	73072-BB-6

1st Connector	SMB Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	SMB Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG, 316
Color	Copper
Features	Shielded
Frequency - Max	3 GHz
Length	0.5 ft
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Overall Impedance	50 Ohms
Style	SMB

73072 Series

Part	Cable Impedance	Cable Type	Operating Temperature (Min)	Operating Temperature (Max)	Style	Overall Impedance	Length	Frequency - Max	2nd Connector	Color	Features	2nd Connector Mounting Type	1st Connector	1st Contact Gender	1st Connector Mounting Type	2nd Contact Gender	Length (ft)
Pomona Electronics 73072-VV-24	75 Ohms	179B RG	-65 °C	165 °C	SMB	75 Ohms	24 in	2 GHz	SMB Jack	Copper	Shielded	Free Hanging (In-Line)	SMB Jack	Male	Free Hanging (In-Line)	Male
Pomona Electronics 73072-BB-6	50 Ohms	316 RG	-65 °C	165 °C	SMB	50 Ohms	0.5 ft	3 GHz	SMB Jack	Copper	Shielded	Free Hanging (In-Line)	SMB Jack	Male	Free Hanging (In-Line)	Male
Pomona Electronics 73072-BB-24	50 Ohms	316 RG	-65 °C	165 °C	SMB	50 Ohms	24 in	3 GHz	SMB Jack	Copper	Shielded	Free Hanging (In-Line)	SMB Jack	Male	Free Hanging (In-Line)	Male
Pomona Electronics 73072-VV-48	75 Ohms	179B RG	-65 °C	165 °C	SMB	75 Ohms	48 in	2 GHz	SMB Jack	Copper	Shielded	Free Hanging (In-Line)	SMB Jack	Male	Free Hanging (In-Line)	Male
Pomona Electronics 73072-VV-60	75 Ohms	179B RG	-65 °C	165 °C	SMB	75 Ohms	1524 mm	2 GHz	SMB Jack	Copper	Shielded	Free Hanging (In-Line)	SMB Jack	Male	Free Hanging (In-Line)	Male	5 ft
Pomona Electronics 73072-BB-36	50 Ohms	316 RG	-65 °C	165 °C	SMB	50 Ohms	36 in	3 GHz	SMB Jack	Copper	Shielded	Free Hanging (In-Line)	SMB Jack	Male	Free Hanging (In-Line)	Male
Pomona Electronics 73072-BB-48	50 Ohms	316 RG	-65 °C	165 °C	SMB	50 Ohms	48 in	3 GHz	SMB Jack	Copper	Shielded	Free Hanging (In-Line)	SMB Jack	Male	Free Hanging (In-Line)	Male
Pomona Electronics 73072-BB-12	50 Ohms	316 RG	-65 °C	165 °C	SMB	50 Ohms	12 in	3 GHz	SMB Jack	Copper	Shielded	Free Hanging (In-Line)	SMB Jack	Male	Free Hanging (In-Line)	Male
Pomona Electronics 73072-VV-36	75 Ohms	179B RG	-65 °C	165 °C	SMB	75 Ohms	36 in	2 GHz	SMB Jack	Copper	Shielded	Free Hanging (In-Line)	SMB Jack	Male	Free Hanging (In-Line)	Male
