DCNHR50QF24
ObsoleteDCNHR 50A 450V P AUX 24VCOIL/ BULK
DCNHR50QF24
ObsoleteDCNHR 50A 450V P AUX 24VCOIL/ BULK
Description
General part information
DCNHR50QF24 Series

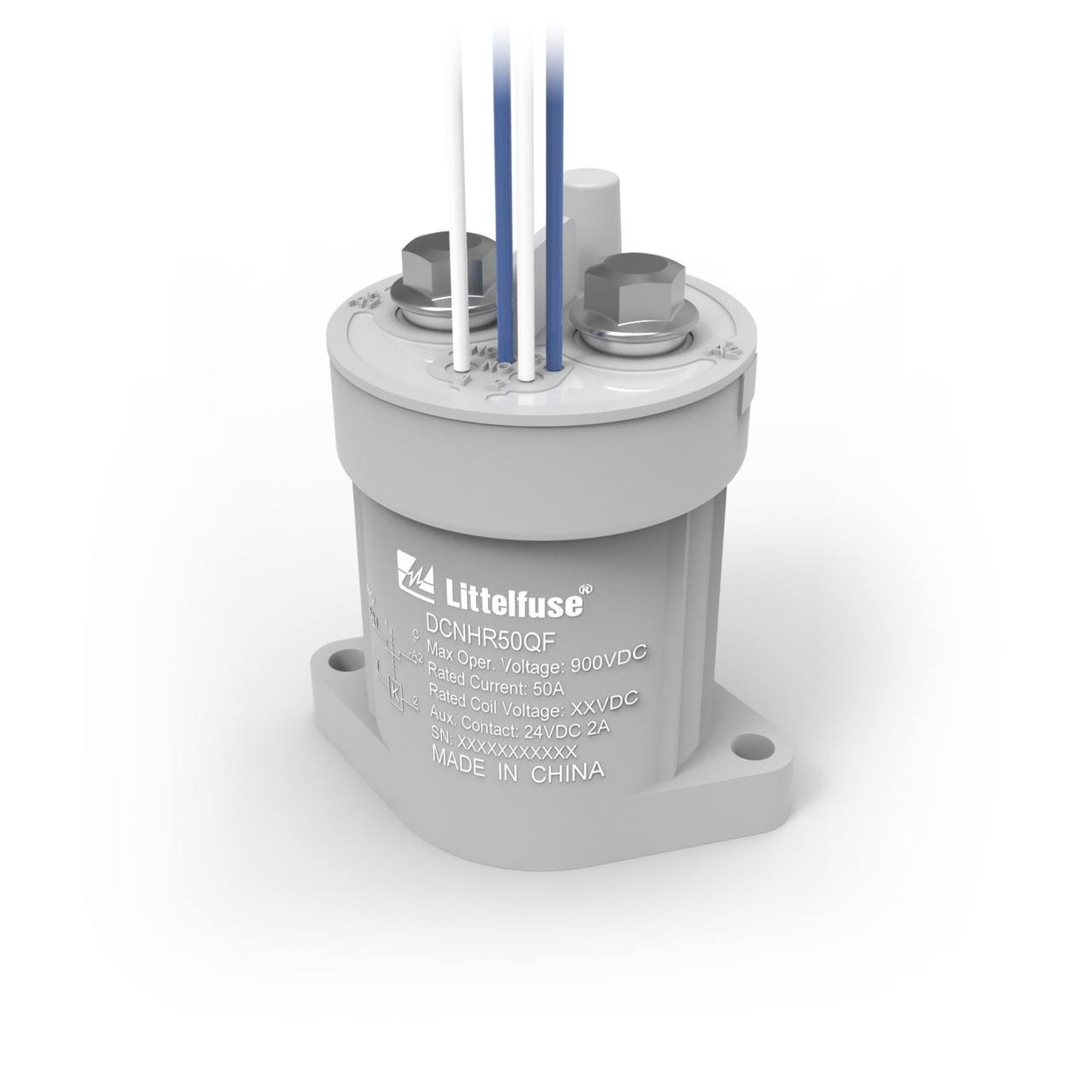

The DCNHR Series 900V Max High-Voltage DC Contactor Relay is normally open with a low-power coil in a corrosion-resistant housing for use in harsh vehicle environments. The contactor's permanent magnet helps to achieve a high-voltage DC cutoff. This DCNHR Series contactor relay (DCNHR50QF24) is for 50A contact switching. It includes an auxiliary contact and features polarized main contacts and a 24V coil.
Technical Specifications
Parameters and characteristics for this part
| Specification | DCNHR50QF24 |
|---|---|
| Coil Voltage | 24 VDC |
| Contact Form | SPST-NO |
| Contact Rating (Current) | 50 A |
| Features | Auxiliary Contacts |
| Form A Count | 1 |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 16.8 VDC |
| Must Release Voltage | 2 VDC |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Switching Voltage DC (Max) | 900 VDC |
| Termination Style | Wire Leads, Stud |
