DCNHR50QF24 Series

DCNHR 50A 450V P Aux 24Vcoil

Catalog

DCNHR 50A 450V P Aux 24Vcoil

Part	Operating Temperature (Min)	Operating Temperature (Max)	Must Release Voltage	Mounting Type	Termination Style	Form A Count	Contact Form	Coil Voltage	Features	Contact Rating (Current)	Switching Voltage DC (Max)	Must Operate Voltage
LITTELFUSE DCNHR50QF24	-40 °C	85 °C	2 VDC	Chassis Mount	Stud Wire Leads	1	SPST-NO	24 VDC	Auxiliary Contacts	50 A	900 VDC	16.8 VDC

Catalog

DCNHR 50A 450V P Aux 24Vcoil

Description

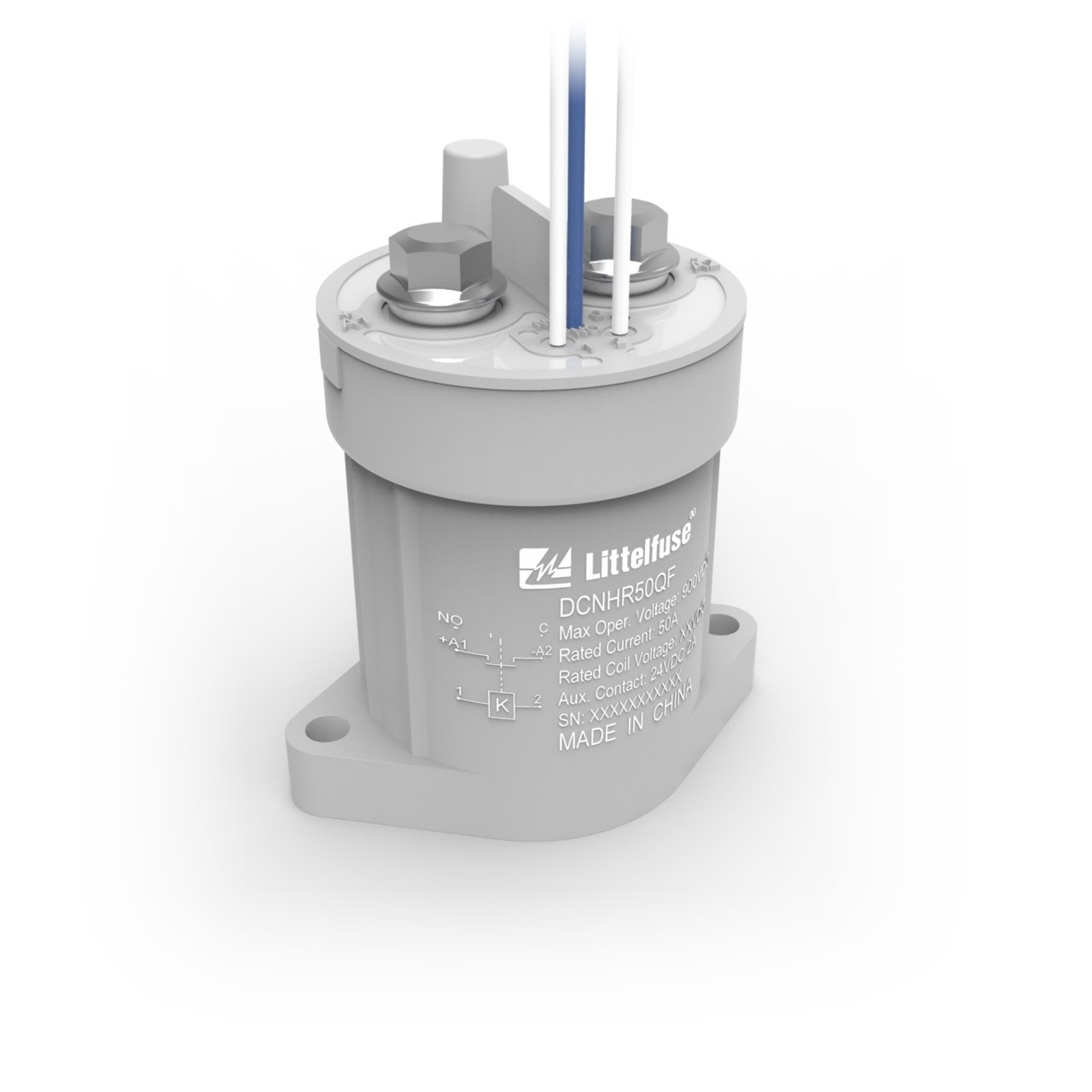

The DCNHR Series 900V Max High-Voltage DC Contactor Relay is normally open with a low-power coil in a corrosion-resistant housing for use in harsh vehicle environments. The contactor's permanent magnet helps to achieve a high-voltage DC cutoff. This DCNHR Series contactor relay (DCNHR50QF24) is for 50A contact switching. It includes an auxiliary contact and features polarized main contacts and a 24V coil.
