STEVAL-MKI136V1
ActiveL3GD20H ADAPTER BOARD FOR STANDARD DIL 24 SOCKET
Deep-Dive with AI
Search across all available documentation for this part.
STEVAL-MKI136V1
ActiveL3GD20H ADAPTER BOARD FOR STANDARD DIL 24 SOCKET
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | STEVAL-MKI136V1 |
|---|---|
| Contents | Board(s) |
| Function | Gyroscope |
| Interconnect System | DIL24 |
| Platform | Professional MEMS Tool |
| Suggested Programming Environment | Unico |
| Type | Sensor |
| Utilized IC / Part | L3GD20H |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 21.28 | |
Description
General part information
STEVAL-MKI136V1 Series

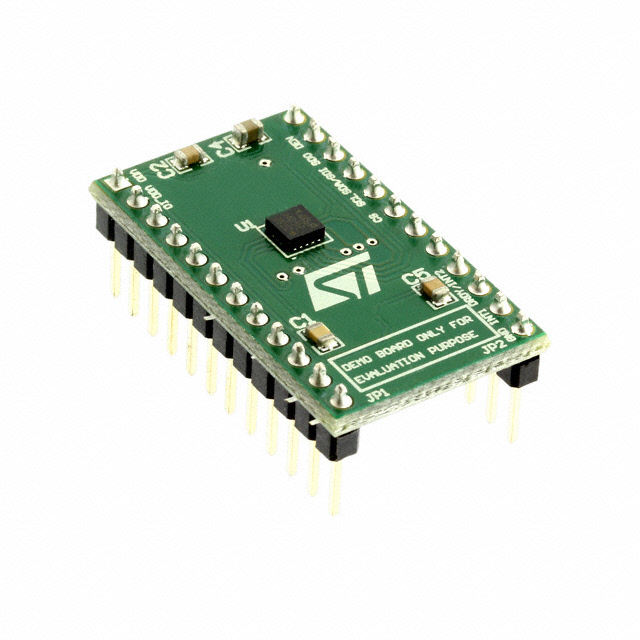

The STEVAL-MKI136V1 is an adapter board designed to facilitate the evaluation of MEMS devices in the L3GD20H product family. The board offers an effective solution for fast system prototyping and device evaluation directly within the user’s own application.
The STEVAL-MKI136V1 can be plugged into a standard DIL 24 socket. The adapter provides the complete L3GD20H pinout and comes ready-to-use with the required decoupling capacitors on the VDD power supply line.
