STEVAL-MKI136V1 Series

L3GD20H adapter board for standard DIL 24 socket

Catalog

L3GD20H adapter board for standard DIL 24 socket

Part	Interconnect System	Function	Utilized IC / Part	Platform	Type	Suggested Programming Environment	Contents	Bandwidth [Min]	Bandwidth [Max]	Range °/s	Range °/s [Max]	Range °/s [Min]	Features	Operating Temperature [Max]	Operating Temperature [Min]	Axis [x]	Axis [z]	Axis [y]	Package / Case	Output Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Current - Supply	Sensitivity (LSB/(°/s)) [Min]	Sensitivity (LSB/(°/s)) [Max]
STMicroelectronics STEVAL-MKI136V1	DIL24	Gyroscope	L3GD20H	Professional MEMS Tool	Sensor	Unico	Board(s)
STMicroelectronics L3GD20TR					Digital			47.5 Hz	380 Hz	500 2000	250 °/s	-250 °/s	Adjustable Bandwidth Selectable Scale Sleep Mode Temperature Sensor	85 °C	-40 °C	Pitch	Yaw	Roll	16-VFLGA	I2C SPI	2.4 V	3.6 V	6.1 mA	8.75 LSB/(°/s)	70 LSB/(°/s)

Catalog

L3GD20H adapter board for standard DIL 24 socket

Description

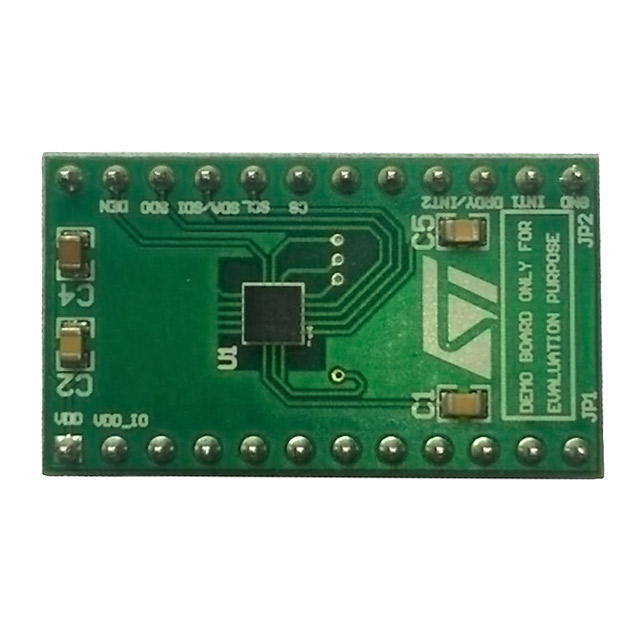

The STEVAL-MKI136V1 is an adapter board designed to facilitate the evaluation of MEMS devices in the L3GD20H product family. The board offers an effective solution for fast system prototyping and device evaluation directly within the user’s own application. The STEVAL-MKI136V1 can be plugged into a standard DIL 24 socket. The adapter provides the complete L3GD20H pinout and comes ready-to-use with the required decoupling capacitors on the VDD power supply line.
