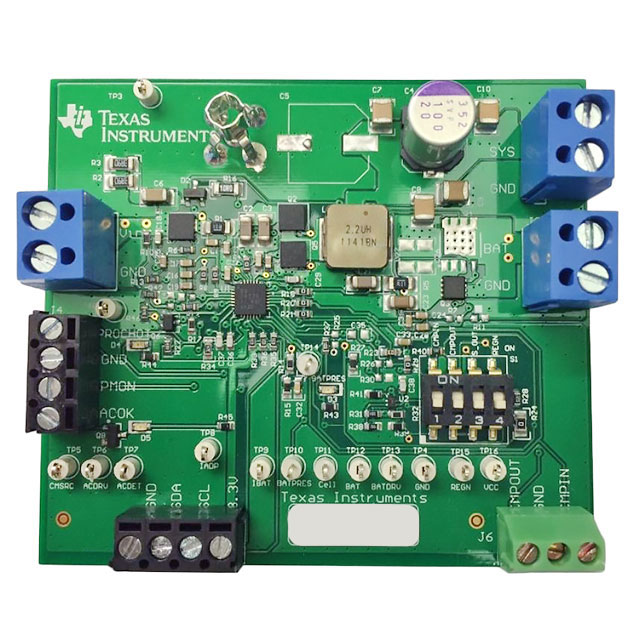

BQ24773EVM-540
ActiveNVDC BATTERY CHARGE CONTROLLER W
Deep-Dive with AI
Search across all available documentation for this part.
BQ24773EVM-540
ActiveNVDC BATTERY CHARGE CONTROLLER W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BQ24773EVM-540 | BQ24773 Series |
|---|---|---|
| Battery Chemistry | - | Multi-Chemistry |
| Function | Battery Charger | Multi-Function Controller, Battery Charger |
| Interface | - | I2C |
| Mounting Type | - | Surface Mount |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 28-WFQFN Exposed Pad |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 28-WQFN (4x4) |
| Type | Power Management | Power Management |
| Utilized IC / Part | BQ24773 | BQ24773 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 114.52 | |
BQ24773 Series
I2C 1-4 cell NVDC Buck battery charge controller with system monitor & processor hot indicator
| Part | Package / Case | Function | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Interface | Battery Chemistry | Mounting Type | Type | Supplied Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ24773RUYR | 28-WFQFN Exposed Pad | Multi-Function Controller | 28-WQFN (4x4) | 85 °C | -40 °C | I2C | Multi-Chemistry | Surface Mount | |||
Texas Instruments BQ24773EVM-540 | Battery Charger | Power Management | Board(s) | BQ24773 |
Description
General part information
BQ24773 Series
The bq2477x is high-efficiency, synchronous, NVDC-1 battery charge controllers, offering low component count for space-constraint, multi-chemistry battery charging applications.
The power path management allows the system to be regulated at battery voltage but does not drop below system minimum voltage (programmable). With this feature, the system keeps operating even when the battery is completely discharged or removed. The power path management allows the battery to provide supplement current to the system to keep the input supply from being overloaded.
The bq2477x provides drivers and power path management for N-channel ACFET and reverse blocking FET. The devices provides driver to control NVDC operation of external P-channel battery FET. It also drives high-side and low-side MOSFETs of the switching regulator.
