AUIRF2804S-7P

Obsolete

Infineon Technologies

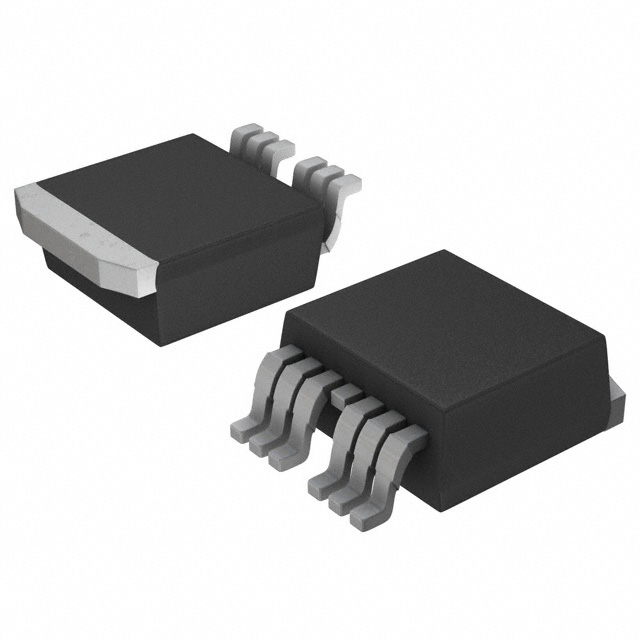

MOSFET N-CH 40V 240A D2PAK

Search across all available documentation for this part.

Obsolete

Infineon Technologies

MOSFET N-CH 40V 240A D2PAK

Technical Specifications

Parameters and characteristics for this part

Specification	AUIRF2804S-7P

Current - Continuous Drain (Id) @ 25°C	240 A
Drain to Source Voltage (Vdss)	40 V
Drive Voltage (Max Rds On, Min Rds On)	10 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs	260 nC
Grade	Automotive
Input Capacitance (Ciss) (Max) @ Vds	6930 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C
Package / Case	TO-263CB, TO-263-7, D2PAK
Power Dissipation (Max)	330 W
Qualification	AEC-Q101
Rds On (Max) @ Id, Vgs	1.6 mOhm
Supplier Device Package	D2PAK (7-Lead)
Technology	MOSFET (Metal Oxide)
Vgs (Max)	20 V
Vgs(th) (Max) @ Id	4 V

Part	Vgs (Max)	Package / Case	Rds On (Max) @ Id, Vgs	Mounting Type	Input Capacitance (Ciss) (Max) @ Vds [Max]	Vgs(th) (Max) @ Id	Supplier Device Package	Gate Charge (Qg) (Max) @ Vgs [Max]	Power Dissipation (Max) [Max]	Drive Voltage (Max Rds On, Min Rds On)	Current - Continuous Drain (Id) @ 25°C	Drain to Source Voltage (Vdss)	Technology	Operating Temperature [Min]	Operating Temperature [Max]	FET Type	Qualification	Power Dissipation (Max)	Input Capacitance (Ciss) (Max) @ Vds	Grade	Gate Charge (Qg) (Max) @ Vgs
Infineon Technologies AUIRF2804L	20 V	I2PAK TO-262-3 Long Leads TO-262AA	2 mOhm	Through Hole	6450 pF	4 V	TO-262	240 nC	300 W	10 V	195 A	40 V	MOSFET (Metal Oxide)	-55 °C	175 ░C	N-Channel
Infineon Technologies AUIRF2804S-7P	20 V	D2PAK TO-263-7 TO-263CB	1.6 mOhm	Surface Mount		4 V	D2PAK (7-Lead)			10 V	240 A	40 V	MOSFET (Metal Oxide)	-55 °C	175 ░C	N-Channel	AEC-Q101	330 W	6930 pF	Automotive	260 nC
Infineon Technologies AUIRF2804STRL	20 V	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	2 mOhm	Surface Mount	6450 pF	4 V	D2PAK	240 nC	300 W	10 V	195 A	40 V	MOSFET (Metal Oxide)	-55 °C	175 ░C	N-Channel
Infineon Technologies AUIRF2804WL	20 V	TO-262-3 Wide Leads	1.8 mOhm	Through Hole		4 V	TO-262-3 Wide	225 nC	300 W	10 V	240 A	40 V	MOSFET (Metal Oxide)	-55 °C	175 ░C	N-Channel			7978 pF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

N-Channel 40 V 240A (Tc) 330W (Tc) Surface Mount D2PAK (7-Lead)
