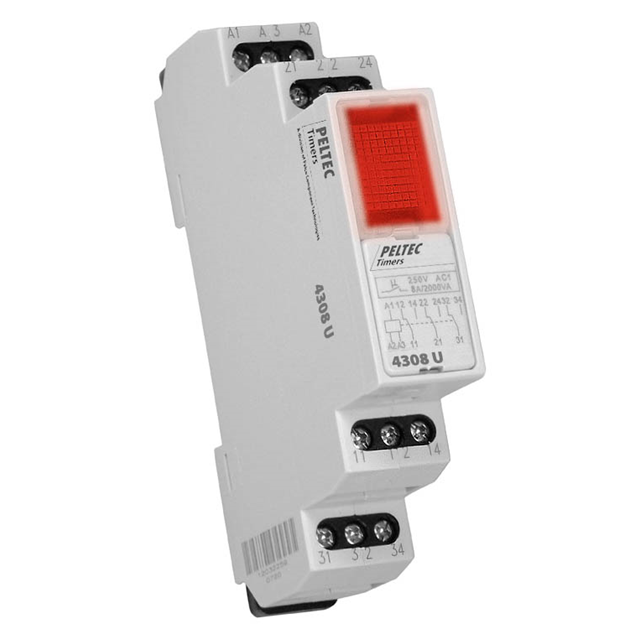

4308U

Active

Peltec Timers and Controls

RELAY GEN PURP 3PDT 8A 12-240V

Search across all available documentation for this part.

Active

Peltec Timers and Controls

RELAY GEN PURP 3PDT 8A 12-240V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 49.77

General part information

General Purpose Relay 3PDT (3 Form C) 12 ~ 240VAC/DC Coil DIN Rail

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	4308U	- Series

Circuit	-	2
Coil Type	Non Latching	Non Latching
Coil Voltage [Max]	240 VAC	240 VAC
Coil Voltage [Min]	12 VAC/DC	12 VAC/DC
Contact Form	3PDT (3 Form C)	3PDT (3 Form C)
Contact Rating (Current)	8 A	8 A
Contact Rating @ Voltage	-	16 - 250 A
Delay Time	-	0.05 - 0.1 Sec
Delay Time	-	10 - 720 Days
Features	Diode	Diode
Function	-	Programmable (Multi-Function)
Mounting Type	DIN Rail	DIN Rail, Socketable
Operating Temperature [Max]	55 °C	55 °C
Operating Temperature [Min]	-20 C	-20 C
Relay Type	General Purpose	Mechanical Relay, General Purpose
Switching Voltage	250 VAC, 24 VDC	24 - 250 VAC
Termination Style	Screw Terminal	Screw Terminal, Plug In, 11 Pin (Octal)
Timing Adjustment Method	-	Screwdriver Slot, Hand Dial
Timing Initiate Method	-	Input Voltage, Trigger Signal
Voltage - Supply	-	240 VAC
Voltage - Supply	-	12 VAC

RELAY TIME DELAY 240HR 16A 250V

Part	Contact Rating @ Voltage	Relay Type	Mounting Type	Function	Timing Adjustment Method	Voltage - Supply [Max]	Voltage - Supply [Min]	Delay Time [Min]	Delay Time [Max]	Timing Initiate Method	Termination Style	Circuit	Coil Voltage [Min]	Coil Voltage [Max]	Features	Operating Temperature [Max]	Operating Temperature [Min]	Coil Type	Contact Form	Switching Voltage	Contact Rating (Current)
Peltec Timers and Controls 191	16 A, 24 VDC, 250 VAC	Mechanical Relay	DIN Rail	Programmable (Multi-Function)	Screwdriver Slot	240 VAC	12 VAC	0.1 Sec	10 Days	Input Voltage	Screw Terminal
Peltec Timers and Controls 505	16 A, 24 VDC, 250 VAC	Mechanical Relay	Socketable	Programmable (Multi-Function)	Hand Dial	240 VAC	12 VAC	0.05 Sec	720 Hrs	Input Voltage, Trigger Signal	Plug In, 11 Pin (Octal)	2
Peltec Timers and Controls 4308U		General Purpose	DIN Rail								Screw Terminal		12 VAC/DC	240 VAC	Diode	55 °C	-20 C	Non Latching	3PDT (3 Form C)	24 VDC, 250 VAC	8 A
Peltec Timers and Controls 503	16 A, 24 VDC, 250 VAC	Mechanical Relay	Socketable	Programmable (Multi-Function)	Hand Dial	240 VAC	12 VAC	0.05 Sec	720 Hrs	Input Voltage, Trigger Signal	Plug In, 11 Pin (Octal)	2
