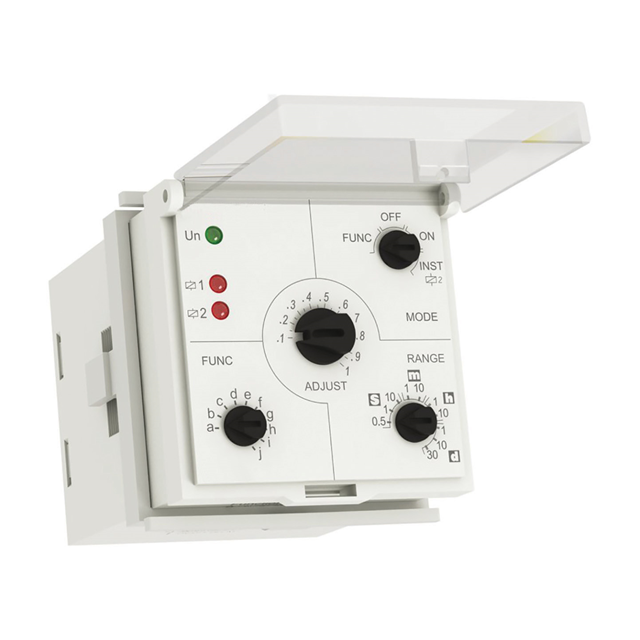

505

Active

Peltec Timers and Controls

RELAY TIME DELAY 720HR 16A 250V

Search across all available documentation for this part.

Active

Peltec Timers and Controls

RELAY TIME DELAY 720HR 16A 250V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	505	- Series

Circuit	2	2
Coil Type	-	Non Latching
Coil Voltage	-	12 VAC/DC
Coil Voltage	-	240 VAC
Contact Form	-	3PDT (3 Form C)
Contact Rating (Current)	-	8 A
Contact Rating @ Voltage	16 A, 24 VDC, 250 VAC	16 - 250 A
Delay Time [Max]	720 Hrs	10 - 720 Days
Delay Time [Min]	0.05 Sec	0.05 - 0.1 Sec
Features	-	Diode
Function	Programmable (Multi-Function)	Programmable (Multi-Function)
Mounting Type	Socketable	DIN Rail, Socketable
Operating Temperature	-	55 °C
Operating Temperature	-	-20 C
Relay Type	Mechanical Relay	Mechanical Relay, General Purpose
Switching Voltage	-	24 - 250 VAC
Termination Style	Plug In, 11 Pin (Octal)	Screw Terminal, Plug In, 11 Pin (Octal)
Timing Adjustment Method	Hand Dial	Screwdriver Slot, Hand Dial
Timing Initiate Method	Trigger Signal, Input Voltage	Input Voltage, Trigger Signal
Voltage - Supply [Max]	240 VAC	240 VAC
Voltage - Supply [Min]	12 VAC	12 VAC

RELAY TIME DELAY 240HR 16A 250V

Part	Contact Rating @ Voltage	Relay Type	Mounting Type	Function	Timing Adjustment Method	Voltage - Supply [Max]	Voltage - Supply [Min]	Delay Time [Min]	Delay Time [Max]	Timing Initiate Method	Termination Style	Circuit	Coil Voltage [Min]	Coil Voltage [Max]	Features	Operating Temperature [Max]	Operating Temperature [Min]	Coil Type	Contact Form	Switching Voltage	Contact Rating (Current)
Peltec Timers and Controls 191	16 A, 24 VDC, 250 VAC	Mechanical Relay	DIN Rail	Programmable (Multi-Function)	Screwdriver Slot	240 VAC	12 VAC	0.1 Sec	10 Days	Input Voltage	Screw Terminal
Peltec Timers and Controls 505	16 A, 24 VDC, 250 VAC	Mechanical Relay	Socketable	Programmable (Multi-Function)	Hand Dial	240 VAC	12 VAC	0.05 Sec	720 Hrs	Input Voltage, Trigger Signal	Plug In, 11 Pin (Octal)	2
Peltec Timers and Controls 4308U		General Purpose	DIN Rail								Screw Terminal		12 VAC/DC	240 VAC	Diode	55 °C	-20 C	Non Latching	3PDT (3 Form C)	24 VDC, 250 VAC	8 A
Peltec Timers and Controls 503	16 A, 24 VDC, 250 VAC	Mechanical Relay	Socketable	Programmable (Multi-Function)	Hand Dial	240 VAC	12 VAC	0.05 Sec	720 Hrs	Input Voltage, Trigger Signal	Plug In, 11 Pin (Octal)	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Programmable (Multi-Function) Time Delay Relay SPDT (1 Form C) x 2 0.05 Sec ~ 720 Hrs Delay 16A @ 250VAC/24VDC Socketable
