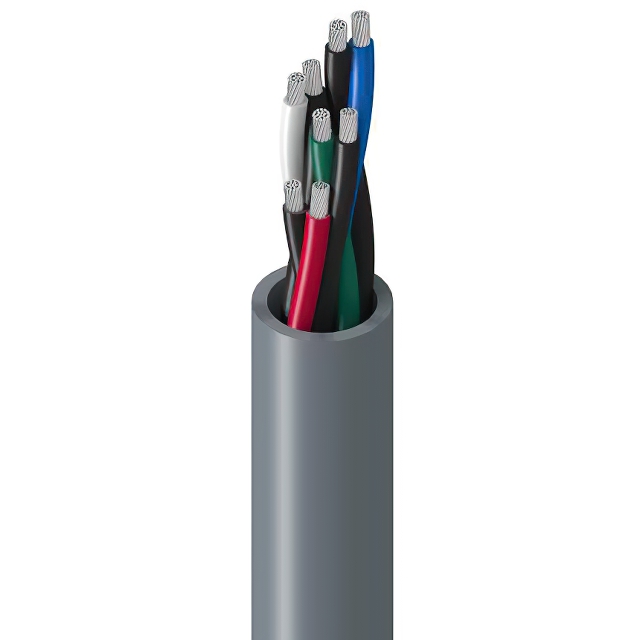

Specification	9157 060100

Cable Type	Multi-Pair
Conductor Arrangement	Twisted
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Tinned, Copper
Conductor Strand Count	16
Conductor Strand Gauge	30
Jacket (Insulation) Diameter	0.381 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.032 in
Jacket Color	Chrome
Length	100 ft
Number of Conductors	8
Number of Conductors - Pair	4
Operating Temperature (Max)	80 °C
Operating Temperature (Min)	-20 °C
Ratings	UL, 2464, Style
Usage	Instrumentation, Control, Audio
Voltage	300 V
Wire Gauge	18 AWG

9157 Series

Part	Usage	Ratings	Operating Temperature (Min)	Operating Temperature (Max)	Number of Conductors	Conductor Arrangement	Number of Conductors - Pair	Conductor Strand Gauge	Conductor Strand Count	Conductor Material	Jacket (Insulation) Material	Length	Cable Type	Jacket Color	Wire Gauge	Conductor Insulation	Jacket (Insulation) Diameter	Jacket (Insulation) Thickness	Voltage
Belden Inc. 9157 060100	Audio Control Instrumentation	2464 Style UL	-20 °C	80 °C	8	Twisted	4	30	16	Copper Tinned	Poly-Vinyl Chloride (PVC)	100 ft	Multi-Pair	Chrome	18 AWG	Poly-Vinyl Chloride (PVC)	0.381 in	0.032 in	300 V
Belden Inc. 9157 0601000	Audio Control Instrumentation	2464 Style UL	-20 °C	80 °C	8	Twisted	4	30	16	Copper Tinned	Poly-Vinyl Chloride (PVC)	1000 ft	Multi-Pair	Chrome	18 AWG	Poly-Vinyl Chloride (PVC)	0.381 in	0.032 in	300 V
