9157 0601000

Active

Belden Inc.

MULTI-PAIR 8CON 18AWG CHRM

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 8CON 18AWG CHRM

Technical Specifications

Parameters and characteristics for this part

Specification	9157 0601000

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	16
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	9.68 mm
Jacket (Insulation) Diameter [diameter]	0.381 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Chrome
Length	1000 ft
Length	304.8 m
Number of Conductors	8
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2464
Usage	Audio, Instrumentation, Control
Voltage	300 V
Wire Gauge	18 AWG

Part	Length [x]	Length [x]	Jacket (Insulation) Material	Conductor Insulation	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge	Usage	Number of Conductors	Voltage	Ratings	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Jacket Color	Cable Type	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length
Belden Inc. 9157 060100	30.5 m	100 ft	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	16	30 AWG	18 AWG	Audio Control Instrumentation	8	300 V	UL Style 2464	9.68 mm	0.381 in	Copper Tinned	Chrome	Multi-Pair	-20 C	80 C
Belden Inc. 9157 0601000			Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	16	30 AWG	18 AWG	Audio Control Instrumentation	8	300 V	UL Style 2464	9.68 mm	0.381 in	Copper Tinned	Chrome	Multi-Pair	-20 C	80 C	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 5.25

General part information

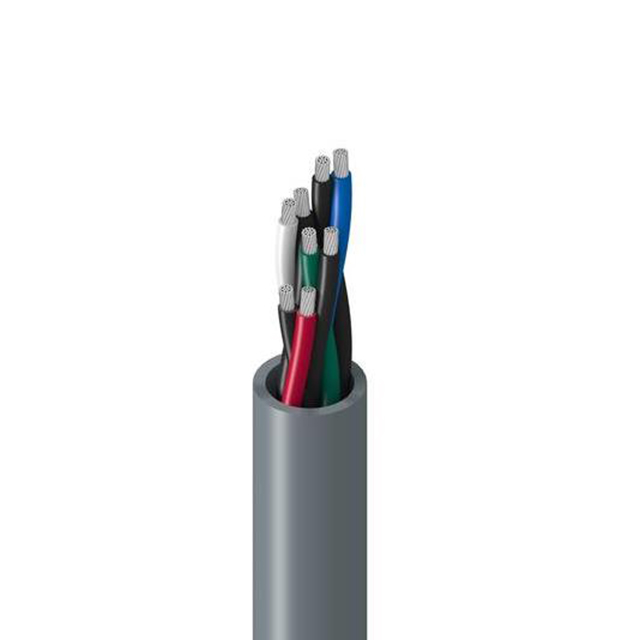

8 (4 Pair Twisted) Conductor Multi-Pair Cable Chrome 18 AWG 1000.0' (304.8m)
