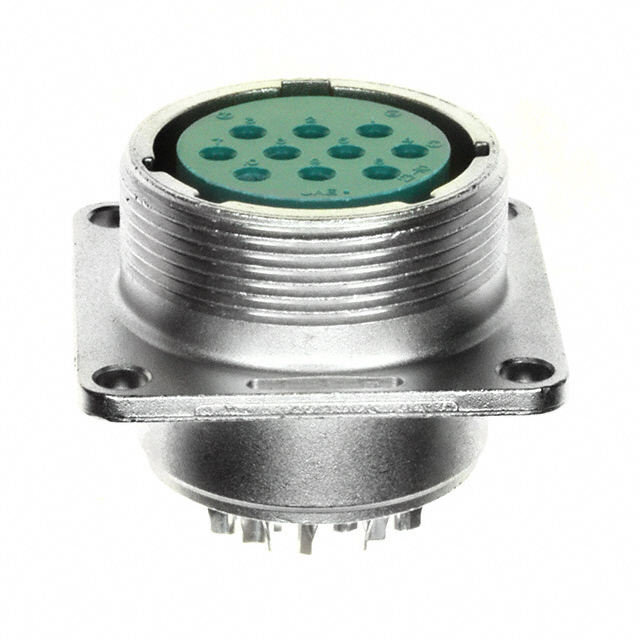

Specification	SRCN2A21-10S

Applications	Communication Systems, Telecommunications, Test Equipment & Measurement
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating	10 A
Fastening Type	Threaded
Insert Material	Plastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Mounting Type	Panel Mount
Number of Positions	10
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Orientation	N (Normal)
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Aluminum Alloy
Shell Size - Insert Length	21 mm
Shell Size - Insert Width	10 mm
Termination	Solder Cup
Voltage Rating (AC)	250 VAC
Voltage Rating (DC)	350 VDC

SRCN2A21 Series

Part	Applications	Orientation	Fastening Type	Number of Positions	Primary Material	Shell Material	Shell Size - Insert Length	Shell Size - Insert Width	Operating Temperature (Max)	Operating Temperature (Min)	Contact Material	Material Flammability Rating	Connector Type	Shell Finish	Current Rating	Mounting Feature	Insert Material	Color	Termination	Voltage Rating (DC)	Voltage Rating (AC)	Mounting Type	Contact Finish - Mating	Current Rating Options
JAE Electronics SRCN2A21-16S-TH-N	Communication Systems Telecommunications Test Equipment & Measurement	N (Normal)	Threaded	16	Metal	Aluminum Alloy	21 mm	16 mm	85 °C	-25 °C	Copper Alloy	UL94 V-0	Female Sockets Receptacle	Nickel
JAE Electronics SRCN2A21-16P	Communication Systems Telecommunications Test Equipment & Measurement	N (Normal)	Threaded	16	Metal	Aluminum Alloy	21 mm	16 mm	85 °C	-25 °C	Copper Alloy	UL94 V-0	Male Pins Receptacle	Nickel	5 A	Flange	Plastic	Silver	Solder Cup	350 VDC	250 VAC	Panel Mount	Silver
JAE Electronics SRCN2A21-10S	Communication Systems Telecommunications Test Equipment & Measurement	N (Normal)	Threaded	10	Metal	Aluminum Alloy	21 mm	10 mm	85 °C	-25 °C	Copper Alloy	UL94 V-0	Female Sockets Receptacle	Nickel	10 A	Flange	Plastic	Silver	Solder Cup	350 VDC	250 VAC	Panel Mount	Silver
JAE Electronics SRCN2A21-18S	Communication Systems Telecommunications Test Equipment & Measurement	N (Normal)	Threaded	18	Metal	Aluminum Alloy	21 mm	18 mm	85 °C	-25 °C	Copper Alloy	UL94 V-0	Female Sockets Receptacle	Nickel		Flange	Plastic	Silver	Solder Cup	350 VDC	250 VAC	Panel Mount	Silver	10A 5A
JAE Electronics SRCN2A21-16S	Communication Systems Telecommunications Test Equipment & Measurement	N (Normal)	Threaded	16	Metal	Aluminum Alloy	21 mm	16 mm	85 °C	-25 °C	Copper Alloy	UL94 V-0	Female Sockets Receptacle	Nickel	5 A	Flange	Plastic	Silver	Solder Cup	350 VDC	250 VAC	Panel Mount	Silver
JAE Electronics SRCN2A21-10P	Communication Systems Telecommunications Test Equipment & Measurement	N (Normal)	Threaded	10	Metal	Aluminum Alloy	21 mm	10 mm	85 °C	-25 °C	Copper Alloy	UL94 V-0	Male Pins Receptacle	Nickel	10 A	Flange	Plastic	Silver	Solder Cup	350 VDC	250 VAC	Panel Mount	Silver
JAE Electronics SRCN2A21-16S-R
