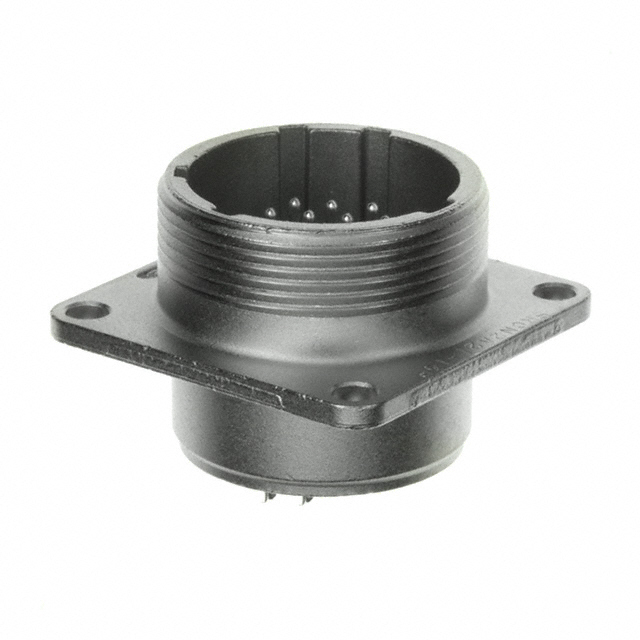

SRCN2A21-16P

Active

JAE Electronics

CONN RCPT MALE 16P SOLDER CUP

Search across all available documentation for this part.

Active

JAE Electronics

CONN RCPT MALE 16P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	SRCN2A21-16P

Applications	Communication Systems, Telecommunications, Test Equipment & Measurement
Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Insert Material	Plastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Number of Positions	16
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	N
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Aluminum Alloy
Shell Size - Insert	21-16
Voltage Rating	350 V, 250 VAC

Part	Applications	Material Flammability Rating	Contact Material	Shell Finish	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert	Number of Positions	Connector Type	Shell Material	Primary Material	Contact Finish - Mating	Insert Material	Voltage Rating	Color	Mounting Feature	Current Rating (Amps)	Number of Positions
JAE Electronics SRCN2A21-16S-TH-N	Communication Systems Telecommunications Test Equipment & Measurement	UL94 V-0	Copper Alloy	Nickel	N	-25 °C	85 °C	21-16	16	Receptacle Female Sockets	Aluminum Alloy	Metal
JAE Electronics SRCN2A21-16P	Communication Systems Telecommunications Test Equipment & Measurement	UL94 V-0	Copper Alloy	Nickel	N	-25 °C	85 °C	21-16	16	Male Pins Receptacle	Aluminum Alloy	Metal	Silver	Plastic	250 VAC 350 V	Silver	Flange	5 A
JAE Electronics SRCN2A21-10S	Communication Systems Telecommunications Test Equipment & Measurement	UL94 V-0	Copper Alloy	Nickel	N	-25 °C	85 °C	21-10		Receptacle Female Sockets	Aluminum Alloy	Metal	Silver	Plastic	250 VAC 350 V	Silver	Flange	10 A	10
JAE Electronics SRCN2A21-10P	Communication Systems Telecommunications Test Equipment & Measurement	UL94 V-0	Copper Alloy	Nickel	N	-25 °C	85 °C	21-10		Male Pins Receptacle	Aluminum Alloy	Metal	Silver	Plastic	250 VAC 350 V	Silver	Flange	10 A	10
JAE Electronics SRCN2A21-16S-R

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

16 Position Circular Connector Receptacle, Male Pins Solder Cup
