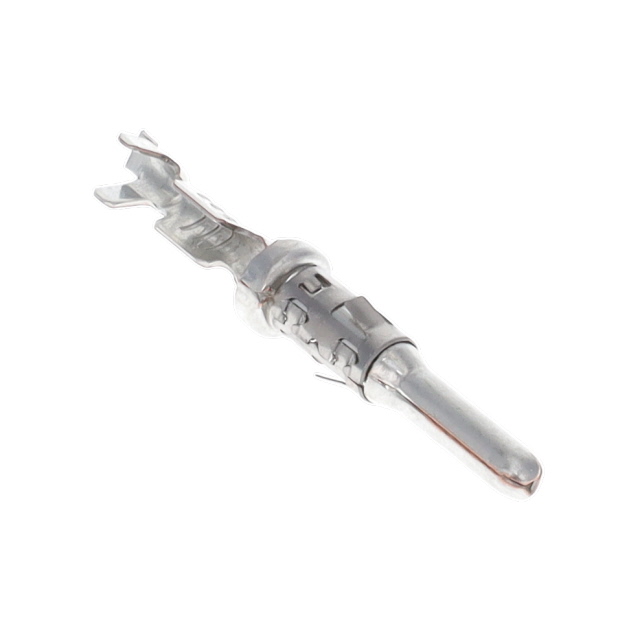

031-8717-020 - 031-8717-020

031-8717-020

Active

ITT Cannon, LLC

CONNECTOR CONTACT,PIN,CRIMP TERMINAL

Deep-Dive with AI

Search across all available documentation for this part.

031-8717-020 - 031-8717-020

031-8717-020

Active

ITT Cannon, LLC

CONNECTOR CONTACT,PIN,CRIMP TERMINAL

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	031-8717-020

Contact Finish	Tin
Contact Material	Copper Alloy
Contact Termination	Crimp
Pin or Socket	Pin
Type	Power, Stamped
Wire Gauge [Max]	20 AWG
Wire Gauge [Min]	17.5 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.76
		10	$ 0.64
		25	$ 0.62
		50	$ 0.60
		100	$ 0.58
		300	$ 0.53
		500	$ 0.47
		1000	$ 0.42
		2500	$ 0.38
Newark	Each	1000	$ 0.43

Description

General part information

031-8 Series

Pin Contact Tin Crimp 18-20 AWG Power, Stamped

Documents

Technical documentation and resources

No documents available

031-8 Series

Part	Contact Finish	Type	Contact Termination	Pin or Socket	Wire Gauge [Max]	Wire Gauge [Min]	Contact Type	Wire Gauge or Range - mm²	Contact Material	Contact Size	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - AWG	Termination Finish
ITT Cannon, LLC 031-8717-122	Tin	Power Stamped	Crimp	Socket	14 AWG	12 AWG
ITT Cannon, LLC 031-8646-010	Silver	Power Machined	Crimp				Socket	6 mm²	Copper Alloy
ITT Cannon, LLC 031-8556-130	Silver	Machined Signal	Crimp				Socket		Copper Alloy	16	196.9 µin	5 µm	22 AWG	26 AWG	0.38 mm²	0.14 mm²
ITT Cannon, LLC 031-8519-006	Gold	Machined Signal	Crimp				Socket		Copper Alloy	8	19.7 µin	0.5 µm					8 AWG
ITT Cannon, LLC 031-8717-020	Tin	Power Stamped	Crimp	Pin	20 AWG	17.5 AWG			Copper Alloy
ITT Cannon, LLC 031-8717-121	Tin	Power Stamped	Crimp				Socket						14 AWG	16 AWG	2.5 mm²	1.5 mm²		Tin
ITT Cannon, LLC 031-8717-047	Tin	Machined	Crimp				Pin		Copper Alloy				14 AWG	16 AWG	2.5 mm²	1.5 mm²
ITT Cannon, LLC 031-8521-000	Silver	Machined Signal	Crimp				Socket		Copper Alloy	0 (3)	196.9 µin	5 µm					0 AWG
ITT Cannon, LLC 031-8531-011	Silver	Power Machined	Crimp				Socket	25 mm²	Brass	0 (3)							4 AWG	Brass
ITT Cannon, LLC 031-8717-120	Tin	Power Stamped	Crimp	Socket	20 AWG	17.5 AWG			Copper Alloy
