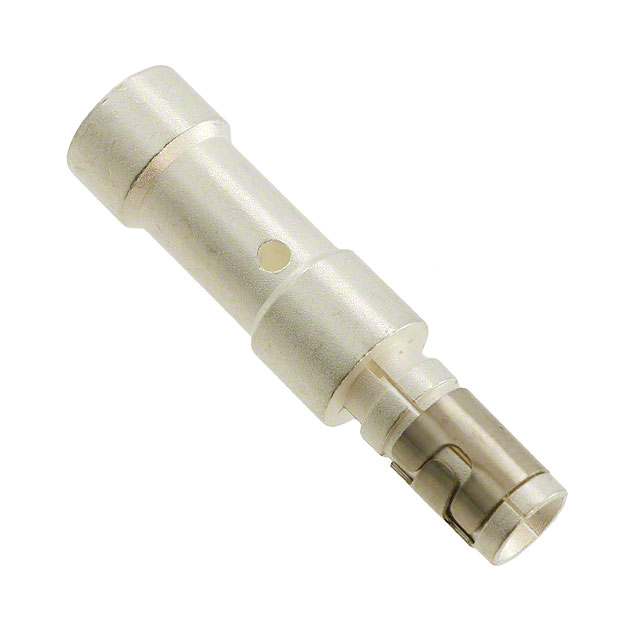

031-8646-010

Active

CONTACT SOCKET CRIMP SILVER

Active

CONTACT SOCKET CRIMP SILVER

Description

General part information

Socket Contact Size Crimp Silver

Parameters and characteristics for this part

Part	Pin or Socket	Contact Finish	Type	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Contact Termination	Contact Type	Wire Gauge or Range - mm²	Contact Material	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)	Contact Size	Wire Gauge or Range - mm² (Maximum)	Wire Gauge or Range - mm² (Minimum)	Contact Finish Thickness	Wire Gauge or Range - AWG	Wire Gauge or Range - AWG	Termination Finish
ITT Cannon, LLC 031-8717-122	Socket	Tin	Power Stamped	14 AWG	12 AWG	Crimp
ITT Cannon, LLC 031-8646-010		Silver	Machined Power			Crimp	Socket	6 mm²	Copper Alloy
ITT Cannon, LLC 031-8556-130		Silver	Machined Signal			Crimp	Socket		Copper Alloy	25.5 AWG	22 AWG	16 S	0.38 mm²	0.14 mm²	196.9 µin
ITT Cannon, LLC 031-8519-006		Gold	Machined Signal			Crimp	Socket		Copper Alloy			8			19.7 µin	8 AWG	8 AWG
ITT Cannon, LLC 031-8717-020	Pin	Tin	Power Stamped	20.5 AWG	18 AWG	Crimp			Copper Alloy
ITT Cannon, LLC 031-8717-121		Tin	Power Stamped			Crimp	Socket			16 AWG	14 AWG		2.5 mm²	1.5 mm²				Tin
ITT Cannon, LLC 031-8717-047		Tin	Machined			Crimp	Pin		Copper Alloy	16 AWG	14 AWG		2.5 mm²	1.5 mm²
ITT Cannon, LLC 031-8521-000		Silver	Machined Signal			Crimp	Socket	50 mm²	Copper Alloy			0			196.9 µin		0 AWG
ITT Cannon, LLC 031-8531-011		Silver	Machined Power			Crimp	Socket	25 mm²	Brass			0				4 AWG	4 AWG	Brass
ITT Cannon, LLC 031-8531-013		Silver	Machined Power			Crimp	Socket	50 mm²	Brass			0						Brass
