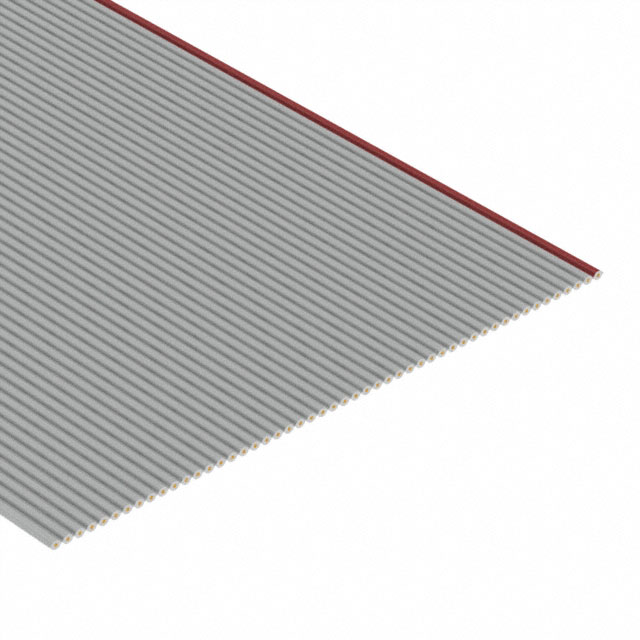

C3365/50 300SF
Obsolete3M (TC)
CBL RIBN 50COND 0.05 GRAY 300'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
C3365/50 300SF
Obsolete3M (TC)
CBL RIBN 50COND 0.05 GRAY 300'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | C3365/50 300SF |
|---|---|
| Cable Type | Flat Cable |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 7 |
| Conductor Strand [custom] | 36 AWG |
| Features | Zippable, Splice Free |
| First Conductor Mark | Red |
| Insulation Resistance | 10 GOhm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Gray |
| Length | 91.44 m |
| Length | 300 ft |
| Number of Conductors | 50 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -20 C |
| Pitch [x] | 0.05 in |
| Pitch [x] | 1.27 mm |
| Ratings | UL Style 2651 |
| Ribbon Thickness | 0.89 mm |
| Ribbon Thickness | 0.035 in |
| Ribbon Width | 63.5 mm |
| Ribbon Width | 2.5 " |
| Shielding | Unshielded |
| Voltage | 300 V |
| Wire Gauge | 28 AWG |
C3365 Series
| Part | Wire Gauge | Features | Jacket (Insulation) Material | Cable Type | Ratings | Jacket Color | Number of Conductors | Shielding | Length [x] | Length [x] | Ribbon Width | Ribbon Width | Operating Temperature [Min] | Operating Temperature [Max] | First Conductor Mark | Conductor Strand [custom] | Conductor Strand [custom] | Pitch [x] | Pitch [x] | Conductor Material | Voltage | Ribbon Thickness | Ribbon Thickness | Insulation Resistance | Length | Length | Ribbon Width [y] | Ribbon Width [y] | Ribbon Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3M (TC) | 28 AWG | Zippable | Poly-Vinyl Chloride (PVC) | Flat Cable | UL Style 2651 | Gray | 15 | Unshielded | 100 ft | 30.48 m | 0.75 " | 19.05 mm | -20 C | 105 ░C | Red | 7 | 36 AWG | 0.05 in | 1.27 mm | Copper Tinned | 300 V | 0.89 mm | 0.035 in | 10 GOhm | |||||
3M (TC) | 28 AWG | Zippable | Poly-Vinyl Chloride (PVC) | Flat Cable | UL Style 2651 | Gray | 34 | Unshielded | -20 C | 105 ░C | Red | 7 | 36 AWG | 0.05 in | 1.27 mm | Copper Tinned | 300 V | 0.89 mm | 0.035 in | 10 GOhm | 91.44 m | 300 ft | 1.7 in | 43.18 mm | |||||
3M (TC) | 28 AWG | Splice Free Zippable | Poly-Vinyl Chloride (PVC) | Flat Cable | UL Style 2651 | Gray | 20 | Unshielded | 1 in | -20 C | 105 ░C | Red | 7 | 36 AWG | 0.05 in | 1.27 mm | Copper Tinned | 300 V | 0.89 mm | 0.035 in | 10 GOhm | 91.44 m | 300 ft | 25.4 mm | |||||
3M (TC) | 28 AWG | Zippable | Poly-Vinyl Chloride (PVC) | Flat Cable | UL Style 2651 | Gray | 8 | Unshielded | 100 ft | 30.48 m | 0.4 in | 10.16 mm | -20 C | 105 ░C | Red | 7 | 36 AWG | 0.05 in | 1.27 mm | Copper Tinned | 300 V | 0.89 mm | 0.035 in | 10 GOhm | |||||
3M (TC) | 28 AWG | Zippable | Poly-Vinyl Chloride (PVC) | Flat Cable | UL Style 2651 | Gray | 20 | Unshielded | 1 in | -20 C | 105 ░C | Red | 7 | 36 AWG | 0.05 in | 1.27 mm | Copper Tinned | 300 V | 0.89 mm | 0.035 in | 10 GOhm | 91.44 m | 300 ft | 25.4 mm | |||||
3M (TC) | 28 AWG | Zippable | Poly-Vinyl Chloride (PVC) | Flat Cable | UL Style 2651 | Gray | 16 | Unshielded | -20 C | 105 ░C | Red | 7 | 36 AWG | 0.05 in | 1.27 mm | Copper Tinned | 300 V | 0.89 mm | 0.035 in | 10 GOhm | 152.4 m | 6000 in | 0.8 in | 20.32 mm | |||||
3M (TC) | 28 AWG | Splice Free Zippable | Poly-Vinyl Chloride (PVC) | Flat Cable | UL Style 2651 | Gray | 44 | Unshielded | 100 ft | 30.48 m | 2.2 in | 55.88 mm | -20 C | 105 ░C | Red | 7 | 36 AWG | 0.05 in | 1.27 mm | Copper Tinned | 300 V | 0.89 mm | 0.035 in | 10 GOhm | |||||
3M (TC) | 28 AWG | Splice Free Zippable | Poly-Vinyl Chloride (PVC) | Flat Cable | UL Style 2651 | Gray | 60 | Unshielded | 100 ft | 30.48 m | 3 in | 76.2 mm | -20 C | 105 ░C | Red | 7 | 36 AWG | 0.05 in | 1.27 mm | Copper Tinned | 300 V | 0.89 mm | 0.035 in | 10 GOhm | |||||
3M (TC) | 28 AWG | Zippable | Poly-Vinyl Chloride (PVC) | Flat Cable | UL Style 2651 | Gray | 16 | Unshielded | 100 ft | 30.48 m | -20 C | 105 ░C | Red | 7 | 36 AWG | 0.05 in | 1.27 mm | Copper Tinned | 300 V | 0.89 mm | 0.035 in | 10 GOhm | 0.8 in | 20.32 mm | |||||
3M (TC) | 28 AWG | Splice Free Zippable | Poly-Vinyl Chloride (PVC) | Flat Cable | UL Style 2651 | Gray | 50 | Unshielded | 2.5 " | 63.5 mm | -20 C | 105 ░C | Red | 7 | 36 AWG | 0.05 in | 1.27 mm | Copper Tinned | 300 V | 0.89 mm | 0.035 in | 10 GOhm | 91.44 m | 300 ft |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
C3365 Series
Flat Ribbon Cable Gray 50 Conductors 0.050" (1.27mm) Flat Cable 300.0' (91.44m)
