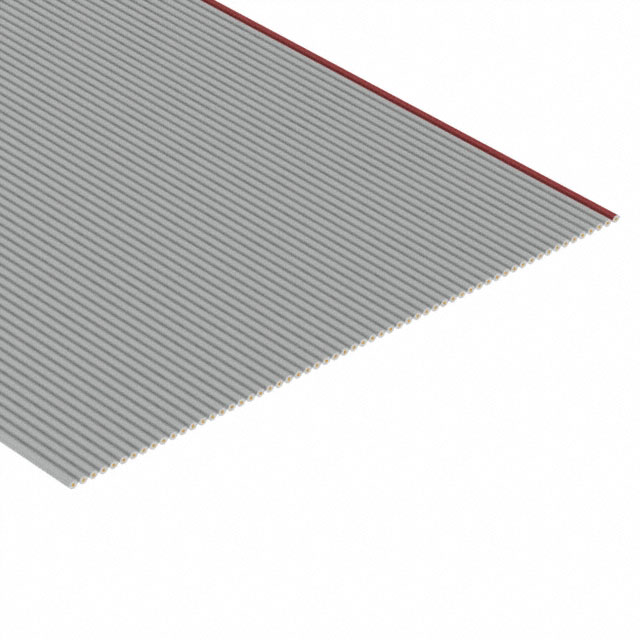

C3365/60 100SF

Active

3M (TC)

CBL RIBN 60COND 0.05 GRAY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

C3365/60 100SF

Active

3M (TC)

CBL RIBN 60COND 0.05 GRAY

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C3365/60 100SF

Cable Type	Flat Cable
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	36 AWG
Features	Zippable, Splice Free
First Conductor Mark	Red
Insulation Resistance	10 GOhm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length [x]	100 ft
Length [x]	30.48 m
Number of Conductors	60
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Ratings	UL Style 2651
Ribbon Thickness	0.89 mm
Ribbon Thickness	0.035 in
Ribbon Width	76.2 mm
Ribbon Width	3 in
Shielding	Unshielded
Voltage	300 V
Wire Gauge	28 AWG

C3365 Series

Part	Wire Gauge	Features	Jacket (Insulation) Material	Cable Type	Ratings	Jacket Color	Number of Conductors	Shielding	Length [x]	Length [x]	Ribbon Width	Ribbon Width	Operating Temperature [Min]	Operating Temperature [Max]	First Conductor Mark	Conductor Strand [custom]	Conductor Strand [custom]	Pitch [x]	Pitch [x]	Conductor Material	Voltage	Ribbon Thickness	Ribbon Thickness	Insulation Resistance	Length	Length	Ribbon Width [y]	Ribbon Width [y]	Ribbon Width
3M (TC) C3365/15 100	28 AWG	Zippable	Poly-Vinyl Chloride (PVC)	Flat Cable	UL Style 2651	Gray	15	Unshielded	100 ft	30.48 m	0.75 "	19.05 mm	-20 C	105 ░C	Red	7	36 AWG	0.05 in	1.27 mm	Copper Tinned	300 V	0.89 mm	0.035 in	10 GOhm
3M (TC) C3365/34 300	28 AWG	Zippable	Poly-Vinyl Chloride (PVC)	Flat Cable	UL Style 2651	Gray	34	Unshielded					-20 C	105 ░C	Red	7	36 AWG	0.05 in	1.27 mm	Copper Tinned	300 V	0.89 mm	0.035 in	10 GOhm	91.44 m	300 ft	1.7 in	43.18 mm
3M (TC) C3365/20 300SF	28 AWG	Splice Free Zippable	Poly-Vinyl Chloride (PVC)	Flat Cable	UL Style 2651	Gray	20	Unshielded				1 in	-20 C	105 ░C	Red	7	36 AWG	0.05 in	1.27 mm	Copper Tinned	300 V	0.89 mm	0.035 in	10 GOhm	91.44 m	300 ft			25.4 mm
3M (TC) C3365/08	28 AWG	Zippable	Poly-Vinyl Chloride (PVC)	Flat Cable	UL Style 2651	Gray	8	Unshielded	100 ft	30.48 m	0.4 in	10.16 mm	-20 C	105 ░C	Red	7	36 AWG	0.05 in	1.27 mm	Copper Tinned	300 V	0.89 mm	0.035 in	10 GOhm
3M (TC) C3365/20 300	28 AWG	Zippable	Poly-Vinyl Chloride (PVC)	Flat Cable	UL Style 2651	Gray	20	Unshielded				1 in	-20 C	105 ░C	Red	7	36 AWG	0.05 in	1.27 mm	Copper Tinned	300 V	0.89 mm	0.035 in	10 GOhm	91.44 m	300 ft			25.4 mm
3M (TC) C3365/16 500	28 AWG	Zippable	Poly-Vinyl Chloride (PVC)	Flat Cable	UL Style 2651	Gray	16	Unshielded					-20 C	105 ░C	Red	7	36 AWG	0.05 in	1.27 mm	Copper Tinned	300 V	0.89 mm	0.035 in	10 GOhm	152.4 m	6000 in	0.8 in	20.32 mm
3M (TC) C3365/44 100SF	28 AWG	Splice Free Zippable	Poly-Vinyl Chloride (PVC)	Flat Cable	UL Style 2651	Gray	44	Unshielded	100 ft	30.48 m	2.2 in	55.88 mm	-20 C	105 ░C	Red	7	36 AWG	0.05 in	1.27 mm	Copper Tinned	300 V	0.89 mm	0.035 in	10 GOhm
3M (TC) C3365/60 100SF	28 AWG	Splice Free Zippable	Poly-Vinyl Chloride (PVC)	Flat Cable	UL Style 2651	Gray	60	Unshielded	100 ft	30.48 m	3 in	76.2 mm	-20 C	105 ░C	Red	7	36 AWG	0.05 in	1.27 mm	Copper Tinned	300 V	0.89 mm	0.035 in	10 GOhm
3M (TC) C3365/16 100	28 AWG	Zippable	Poly-Vinyl Chloride (PVC)	Flat Cable	UL Style 2651	Gray	16	Unshielded	100 ft	30.48 m			-20 C	105 ░C	Red	7	36 AWG	0.05 in	1.27 mm	Copper Tinned	300 V	0.89 mm	0.035 in	10 GOhm			0.8 in	20.32 mm
3M (TC) C3365/50 300SF	28 AWG	Splice Free Zippable	Poly-Vinyl Chloride (PVC)	Flat Cable	UL Style 2651	Gray	50	Unshielded			2.5 "	63.5 mm	-20 C	105 ░C	Red	7	36 AWG	0.05 in	1.27 mm	Copper Tinned	300 V	0.89 mm	0.035 in	10 GOhm	91.44 m	300 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	300	$ 2.62

Description

General part information

C3365 Series

Flat Ribbon Cable Gray 60 Conductors 0.050" (1.27mm) Flat Cable 100.0' (30.48m)
