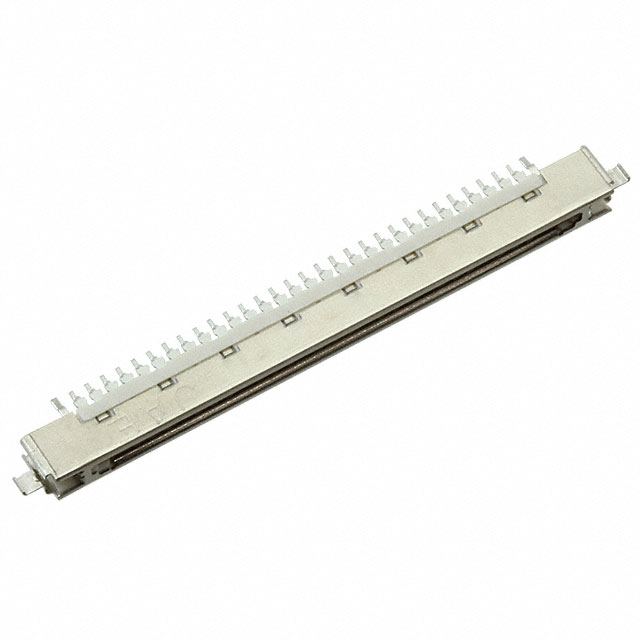

FI-XB30SSLA-HF15
ActiveJAE Electronics
CONN RCPT 30P 0.039 GOLD SMD R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FI-XB30SSLA-HF15
ActiveJAE Electronics
CONN RCPT 30P 0.039 GOLD SMD R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FI-XB30SSLA-HF15 |
|---|---|
| Applications | General Purpose |
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 0.099 µm |
| Contact Finish Thickness - Mating | 3.9 µin |
| Contact Material | Copper Alloy |
| Contact Type | Non-Gendered |
| Current Rating (Amps) | 1 A |
| Fastening Type | Friction Lock |
| Features | Shielded, Grounding Pins, Solder Retention |
| Insulation Color | Beige |
| Insulation Material | Plastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount, Right Angle, Bottom Mount, Board Cutout |
| Number of Positions | 30 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.039 in |
| Pitch - Mating | 1 mm |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 200 V |
FI-XB30 Series
| Part | Contact Type | Features | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions Loaded | Current Rating (Amps) | Contact Material | Voltage Rating | Contact Finish - Mating | Mounting Type | Style | Termination | Number of Rows | Insulation Material | Number of Positions | Contact Finish - Post | Applications | Insulation Color | Material Flammability Rating | Pitch - Mating | Pitch - Mating | Fastening Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | For Use With/Related Products |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
JAE Electronics | Non-Gendered | Grounding Pins Shielded Solder Retention | Receptacle | -40 °C | 80 C | All | 1 A | Copper Alloy | 200 V | Gold | Board Cutout Bottom Mount Reverse Mount Right Angle Surface Mount | Board to Cable/Wire | Solder | 1 | Plastic | 30 | Tin | General Purpose | Black | UL94 V-0 | 0.039 in | 1 mm | Friction Lock | 0.099 µm | 3.9 µin | |
JAE Electronics | Non-Gendered | Grounding Pins Shielded Solder Retention | Receptacle | -40 °C | 80 C | All | 1 A | Copper Alloy | 200 V | Gold | Board Cutout Bottom Mount Reverse Mount Right Angle Surface Mount | Board to Cable/Wire | Solder | 1 | Plastic | 30 | Tin | General Purpose | Black | UL94 V-0 | 0.039 in | 1 mm | Friction Lock | 0.099 µm | 3.9 µin | |
JAE Electronics | 30 | FI-X Series | ||||||||||||||||||||||||
JAE Electronics | Non-Gendered | Grounding Pins Shielded Solder Retention | Receptacle | -40 °C | 80 C | All | 1 A | Copper Alloy | 200 V | Gold | Board Cutout Bottom Mount Right Angle Surface Mount | Board to Cable/Wire | Solder | 1 | Plastic | 30 | Tin | General Purpose | Beige | UL94 V-0 | 0.039 in | 1 mm | Friction Lock | 0.099 µm | 3.9 µin | |
JAE Electronics | Non-Gendered | Grounding Pins Shielded Solder Retention | Receptacle | -40 °C | 80 C | All | 1 A | Copper Alloy | 200 V | Gold | Board Cutout Bottom Mount Right Angle Surface Mount | Board to Cable/Wire | Solder | 1 | Plastic | 30 | Tin | General Purpose | Beige | UL94 V-0 | 0.039 in | 1 mm | Friction Lock | 0.099 µm | 3.9 µin | |
JAE Electronics | Non-Gendered | Grounding Pins Shielded Solder Retention | Receptacle | -40 °C | 80 C | All | 1 A | Copper Alloy | 200 V | Gold | Board Cutout Bottom Mount Right Angle Surface Mount | Board to Cable/Wire | Solder | 1 | Plastic | 30 | Tin | General Purpose | Beige | UL94 V-0 | 0.039 in | 1 mm | Friction Lock | 0.3 µm | 12 µin | |
JAE Electronics | ||||||||||||||||||||||||||
JAE Electronics | Non-Gendered | Grounding Pins Shielded Solder Retention | Receptacle | -40 °C | 80 C | All | 1 A | Copper Alloy | 200 V | Gold | Board Cutout Bottom Mount Right Angle Surface Mount | Board to Cable/Wire | Solder | 1 | Plastic | 30 | Tin | General Purpose | Beige | UL94 V-0 | 0.039 in | 1 mm | Friction Lock |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 21.39 | |
| 10 | $ 16.48 | |||
| Digi-Reel® | 1 | $ 21.39 | ||
| 10 | $ 16.48 | |||
| Tape & Reel (TR) | 120 | $ 12.66 | ||
Description
General part information
FI-XB30 Series
30 Position Receptacle Connector 0.039" (1.00mm) Board Cutout, Bottom Mount, Surface Mount, Right Angle Gold
