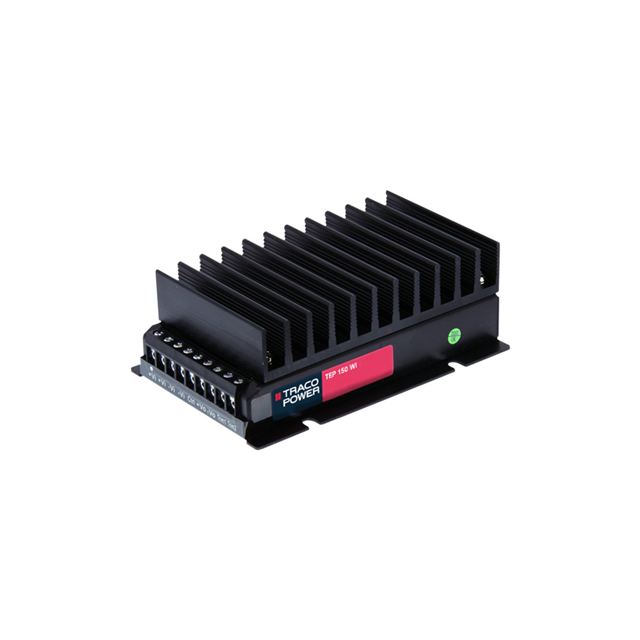

Specification	TEP 150-4812WI

Applications	Railway, ITE (Commercial)
Approval Agency	CB, cURus
Current - Output (Max)	12.5 A
Efficiency	88 %
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature (Max)	75 °C
Operating Temperature (Min)	-40 °C
Power (Watts)	150 W
Size / Dimension Height	1.6 in
Size / Dimension Length	3.86 in
Size / Dimension Width	2.07 in
Type	Enclosed
Voltage - Input (Max)	75 V
Voltage - Input (Min)	18 V
Voltage - Isolation	2.25 kV
Voltage - Output 1	12 V

TEP 150 Series

Part	Current - Output (Max)	Voltage - Input (Max)	Number of Outputs	Efficiency	Voltage - Output 1	Size / Dimension Length	Size / Dimension Height	Size / Dimension Width	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Isolation	Applications	Type	Power (Watts)	Voltage - Input (Min)	Mounting Type	Approval Agency
Traco Power TEP 150-2418WI	3.2 A	36 V	1	86 %	48 V	3.86 in	1.41 in	2.07 in	75 °C	-40 °C	2.25 kV	ITE (Commercial) Railway	Enclosed	154 W	9 V	Chassis Mount	CB cURus
Traco Power TEP 150-4812WI	12.5 A	75 V	1	88 %	12 V	3.86 in	1.6 in	2.07 in	75 °C	-40 °C	2.25 kV	ITE (Commercial) Railway	Enclosed	150 W	18 V	Chassis Mount	CB cURus
Traco Power TEP 150-7216WI	5.4 A	160 VDC	1	89 %	28 V	3.86 in	1.6 in	2.07 in	75 °C	-40 °C	2.25 kV	ITE (Commercial) Railway	Enclosed	151 W	43 V	Chassis Mount	CB cURus
Traco Power TEP 150-7213WI-F	10 A	160 VDC	1	89 %	15 V	6.32 in	1.6 in	2.07 in	75 °C	-40 °C	2.25 kV	ITE (Commercial) Railway	Enclosed	150 W	43 V	Chassis Mount	CB CE cURus
Traco Power TEP 150-7212WI-F	12.5 A	160 VDC	1	88 %	12 V	6.32 in	1.6 in	2.07 in	75 °C	-40 °C	2.25 kV	ITE (Commercial) Railway	Enclosed	150 W	43 V	Chassis Mount	CB CE cURus
Traco Power TEP 150-4815WI	6.3 A	75 V	1	89 %	24 V	3.86 in	1.41 in	2.07 in	75 °C	-40 °C	2.25 kV	ITE (Commercial) Railway	Enclosed	151 W	18 V	Chassis Mount	CB cURus
Traco Power TEP 150-4813WI-F	10 A	75 V	1	89 %	15 V	6.32 in	1.6 in	2.07 in	75 °C	-40 °C	2.25 kV	ITE (Commercial) Railway	Enclosed	150 W	18 V	Chassis Mount	CB CE cURus
Traco Power TEP 150-2418WI-F	3.2 A	36 V	1	86 %	48 V	6.32 in	1.6 in	2.07 in	75 °C	-40 °C	2.25 kV	ITE (Commercial) Railway	Enclosed	154 W	9 V	Chassis Mount	CB CE cURus

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet

TEP 150-4812WI | Datasheet

TEP 150WI Certs

TEP 150WI Series Certs
