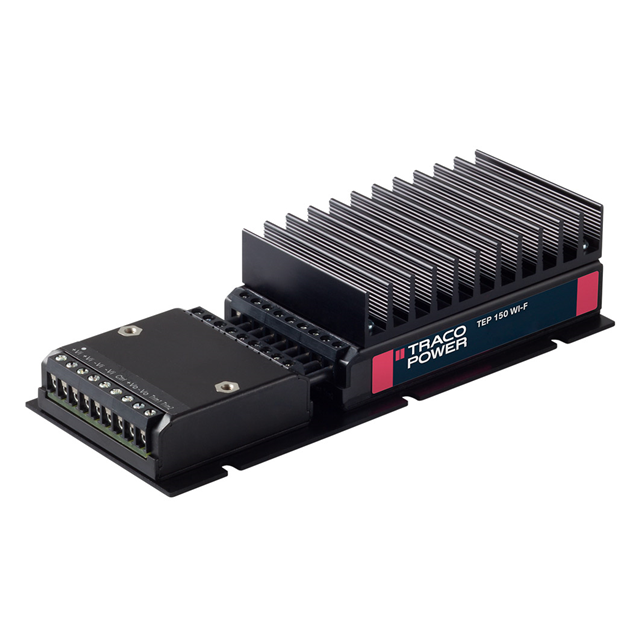

TEP 150-2418WI-F

Active

Traco Power

DC/DC CONVERTER 48V 154W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTEP 150WI Certs TEP 150WI Series Certs +1

TEP 150-2418WI-F

Active

Traco Power

DC/DC CONVERTER 48V 154W

Deep-Dive with AI

DocumentsTEP 150WI Certs TEP 150WI Series Certs +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TEP 150-2418WI-F

Applications	Railway, ITE (Commercial)
Approval Agency	CB, cURus, CE
Current - Output (Max) [Max]	3.2 A
Efficiency	86 %
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-40 °C
Power (Watts)	154 W
Size / Dimension [x]	6.32 "
Size / Dimension [x]	160.5 mm
Size / Dimension [y]	52.6 mm
Size / Dimension [y]	2.07 in
Size / Dimension [z]	40.6 mm
Size / Dimension [z]	1.6 "
Type	Enclosed
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	9 V
Voltage - Isolation	2250 VDC
Voltage - Output 1	48 V

TEP 150 Series

Part	Voltage - Output 1	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Voltage - Input (Max) [Max]	Applications	Voltage - Input (Min) [Min]	Power (Watts)	Current - Output (Max) [Max]	Type	Number of Outputs	Approval Agency	Voltage - Isolation	Mounting Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]
Traco Power TEP 150-2418WI	48 V	3.86 in	98 mm	2.07 in	35.7 mm	1.41 in	52.6 mm	-40 °C	75 ░C	86 %	36 V	ITE (Commercial) Railway	9 V	154 W	3.2 A	Enclosed	1	CB cURus	2250 VDC	Chassis Mount
Traco Power TEP 150-4812WI	12 V		98 mm		40.6 mm		52.6 mm	-40 °C	75 ░C	88 %	75 V	ITE (Commercial) Railway	18 V	150 W	12.5 A	Enclosed	1	CB cURus	2250 VDC	Chassis Mount	3.86 "	1.6 "	2.07 in
Traco Power TEP 150-7213WI-F	15 V	6.32 "	160.5 mm	2.07 in	40.6 mm	1.6 "	52.6 mm	-40 °C	75 ░C	89 %	160 V	ITE (Commercial) Railway	43 V	150 W	10 A	Enclosed	1	CB CE cURus	2250 VDC	Chassis Mount
Traco Power TEP 150-7212WI-F	12 V	6.32 "	160.5 mm	2.07 in	40.6 mm	1.6 "	52.6 mm	-40 °C	75 ░C	88 %	160 V	ITE (Commercial) Railway	43 V	150 W	12.5 A	Enclosed	1	CB CE cURus	2250 VDC	Chassis Mount
Traco Power TEP 150-4815WI	24 V	3.86 in	98 mm	2.07 in	35.7 mm	1.41 in	52.6 mm	-40 °C	75 ░C	89 %	75 V	ITE (Commercial) Railway	18 V	151 W	6.3 A	Enclosed	1	CB cURus	2250 VDC	Chassis Mount
Traco Power TEP 150-4813WI-F	15 V	6.32 "	160.5 mm	2.07 in	40.6 mm	1.6 "	52.6 mm	-40 °C	75 ░C	89 %	75 V	ITE (Commercial) Railway	18 V	150 W	10 A	Enclosed	1	CB CE cURus	2250 VDC	Chassis Mount
Traco Power TEP 150-2418WI-F	48 V	6.32 "	160.5 mm	2.07 in	40.6 mm	1.6 "	52.6 mm	-40 °C	75 ░C	86 %	36 V	ITE (Commercial) Railway	9 V	154 W	3.2 A	Enclosed	1	CB CE cURus	2250 VDC	Chassis Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 322.40
		10	$ 280.09
		25	$ 270.84
		50	$ 239.39
