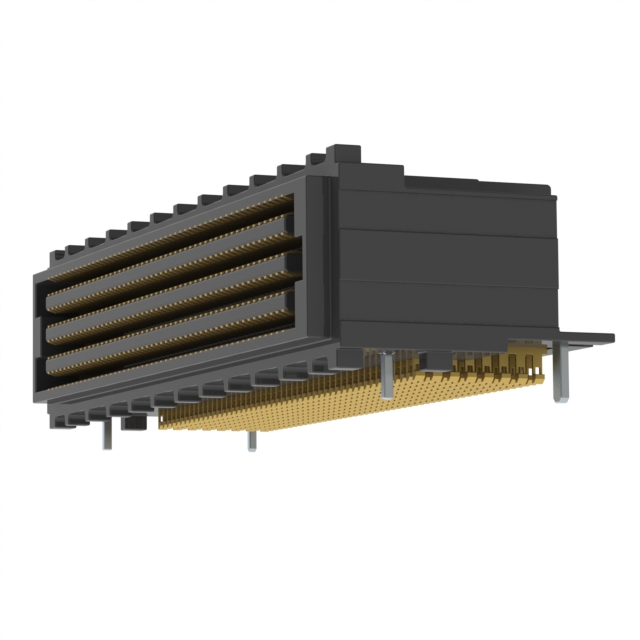

SEAF8-50-1-S-08-2-RA

Active

Samtec Inc.

MEZZANINE CONN, R/A RCPT, 400POS, 8ROW ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Samtec Inc.

MEZZANINE CONN, R/A RCPT, 400POS, 8ROW ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish	Pitch [x]	Pitch [x]	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Number of Positions	Connector Type	Features	Height Above Board	Height Above Board	Mated Stacking Heights
Samtec Inc. SEAF8-50-1-S-10-2-RA	Gold	0.8 mm	0.031 in	Surface Mount Right Angle	0.76 Ám	30 Áin	10	500	High Density Array Female
Samtec Inc. SEAF8-50-1-S-08-2-RA	Gold	0.8 mm	0.031 in	Surface Mount Right Angle	0.76 Ám	30 Áin	8	400	High Density Array Female
Samtec Inc. SEAF8-50-05.0-S-04-2-K	Gold	0.8 mm	0.031 in	Surface Mount	0.76 Ám	30 Áin			High Density Array Female	Board Guide Pick and Place	4.57 mm	0.18 in	7 mm 10 mm
Samtec Inc. SEAF8-50-05.0-S-06-2	Gold	0.8 mm	0.031 in	Surface Mount	0.76 Ám	30 Áin	6	300	High Density Array Female		4.57 mm	0.18 in	7 mm 10 mm
Samtec Inc. SEAF8-50-05.0-S-10-2-K	Gold	0.8 mm	0.031 in	Surface Mount	0.76 Ám	30 Áin	10	500	High Density Array Female	Board Guide Pick and Place	4.57 mm	0.18 in	7 mm 10 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

400 Position Connector High Density Array, Female Surface Mount, Right Angle Gold
