SEAF8-50 Series

Catalog

MEZZANINE CONNECTOR, ARRAY, FEMALE, 0.8 MM, 10 ROWS, 500 CONTACTS, SURFACE MOUNT RIGHT ANGLE

Part	Contact Finish	Pitch	Number of Rows	Contact Finish Thickness	Mounting Type	Number of Positions	Connector Type	Features	Height Above Board	Mated Stacking Height Options
Samtec Inc. SEAF8-50-1-S-10-2-RA	Gold	0.031 in	10	30 µin	Right Angle Surface Mount	500	FEMALE High Density Array
Samtec Inc. SEAF8-50-1-S-08-2-RA	Gold	0.031 in	8	30 µin	Right Angle Surface Mount	400	FEMALE High Density Array
Samtec Inc. SEAF8-50-05.0-S-04-2-K	Gold	0.031 in	4	30 µin	Surface Mount	200	FEMALE High Density Array	Board Guide Pick and Place	0.18 in	10mm 7mm
Samtec Inc. SEAF8-50-05.0-S-06-2	Gold	0.031 in	6	30 µin	Surface Mount	300	FEMALE High Density Array		0.18 in	10mm 7mm
Samtec Inc. SEAF8-50-05.0-S-10-2-RA	Gold	0.031 in	10	30 µin	Right Angle Surface Mount	500	FEMALE High Density Array

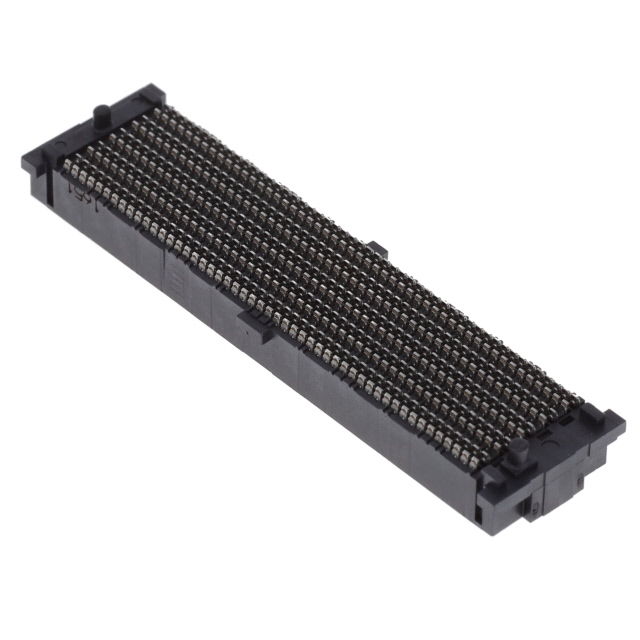

Samtec Inc. SEAF8-50-05.0-L-10-2-K	Gold	0.031 in	10	10 Ąin	Surface Mount	500	FEMALE High Density Array	Board Guide Pick and Place	0.18 in	10mm 7mm
Samtec Inc. SEAF8-50-05.0-S-10-2-K	Gold	0.031 in	10	30 µin	Surface Mount	500	FEMALE High Density Array	Board Guide Pick and Place	0.18 in	10mm 7mm
