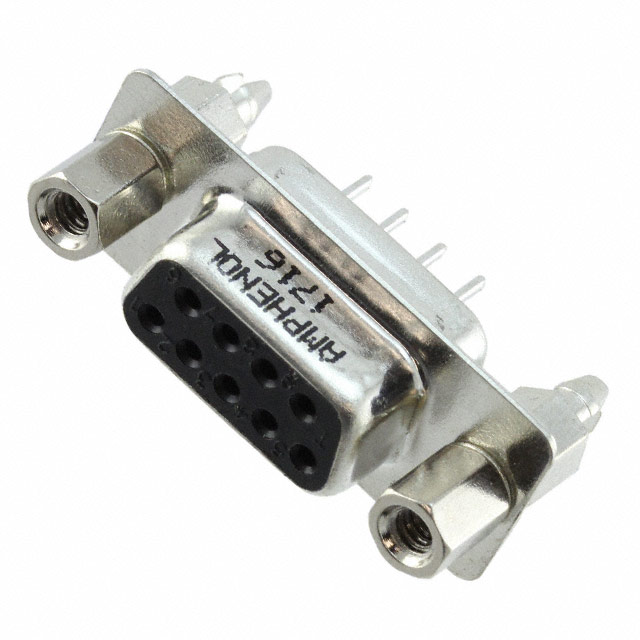

L77SDEH09SOL2RM8C309
ActiveAmphenol ICC (Commercial Products)
CONN D-SUB RCPT 9POS VERT SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | L77SDEH09SOL2RM8C309 |
|---|---|
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Form | Stamped |
| Contact Material | Phosphor Bronze |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Thermoplastic, Glass Filled |
| Flange Feature | Board Side (4-40), Mating Side, Female Screwlock (4-40) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
| Termination | Solder |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.43 | |
| 10 | $ 2.11 | |||
| 25 | $ 2.02 | |||
| 40 | $ 1.98 | |||
| 90 | $ 1.89 | |||
| 270 | $ 1.71 | |||
| 450 | $ 1.57 | |||
| 990 | $ 1.35 | |||
| 2430 | $ 1.26 | |||
Description
General part information
L77SDEH09 Series
9 Position D-Sub Receptacle, Female Sockets Connector
