L77SDEH09SOL2RM5C309

Active

Amphenol ICC (Commercial Products)

CONN D-SUB RCPT 9POS VERT SOLDER

Search across all available documentation for this part.

Active

Amphenol ICC (Commercial Products)

CONN D-SUB RCPT 9POS VERT SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	L77SDEH09SOL2RM5C309

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Form	Stamped
Contact Material	Phosphor Bronze
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Thermoplastic, Glass Filled
Flange Feature	Board Side, 4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Solder
Voltage Rating	250 VDC

Part	Contact Form	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Voltage Rating	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Connector Style	Termination	Current Rating (Amps)	Number of Rows	Mounting Type	Flange Feature	Color	Material Flammability Rating	Connector Type	Number of Positions	Contact Material	Contact Type	Contact Finish Thickness
Amphenol ICC (Commercial Products) L77SDEH09SOL2RM8C309	Stamped	-55 °C	125 °C	Thermoplastic Glass Filled	DE E	1	250 VDC	Gold	0.76 Ám	30 Áin	D-Sub	Solder	3 A	2	Through Hole	Board Side (4-40) Mating Side Female Screwlock (4-40)	Black	UL94 V-0	Receptacle Female Sockets	9	Phosphor Bronze	Signal
Amphenol ICC (Commercial Products) L77SDEH09SOL2RM8G	Stamped	-55 °C	125 °C	Thermoplastic Glass Filled	DE E	1	250 VDC	Gold			D-Sub	Solder	3 A	2	Through Hole	Board Side (4-40) Mating Side Female Screwlock (4-40)	Black	UL94 V-0	Receptacle Female Sockets	9	Phosphor Bronze	Signal	Flash
Amphenol ICC (Commercial Products) L77SDEH09SOL2RM5C309	Stamped	-55 °C	125 °C	Thermoplastic Glass Filled	DE E	1	250 VDC	Gold	0.76 Ám	30 Áin	D-Sub	Solder	3 A	2	Through Hole	4-40 Board Side	Black	UL94 V-0	Receptacle Female Sockets	9	Phosphor Bronze	Signal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

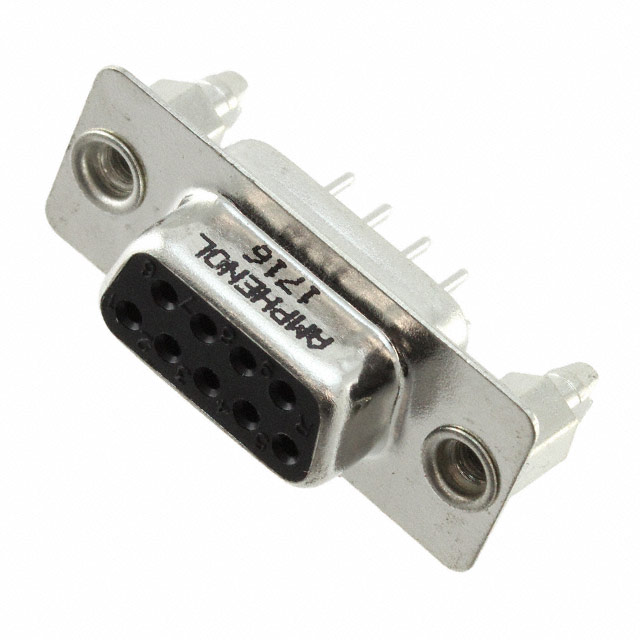

9 Position D-Sub Receptacle, Female Sockets Connector
