TP-POE-HP-48G

Active

Tycon Systems Inc.

56V 50W HIGH POWER GIGABIT PASSI

Deep-Dive with AI

Search across all available documentation for this part.

TP-POE-HP-48G

Active

Tycon Systems Inc.

56V 50W HIGH POWER GIGABIT PASSI

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 85.91
		10	$ 83.22
		25	$ 80.54
		50	$ 73.83
		100	$ 71.41

Description

General part information

TP-POE Series

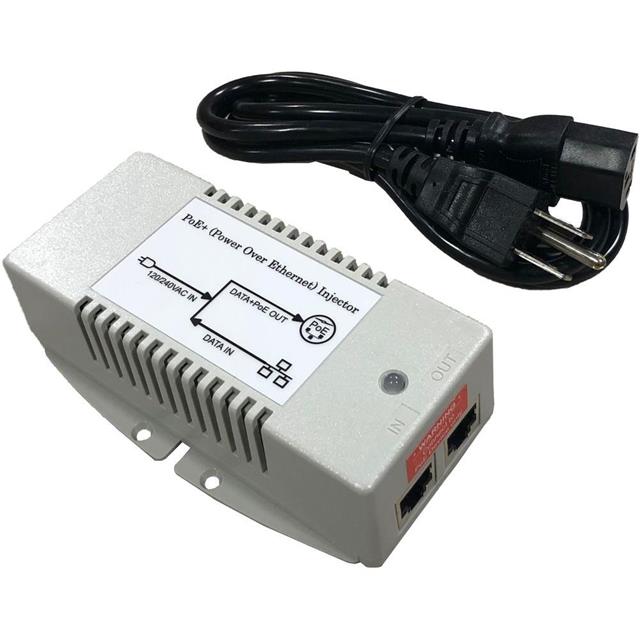

48V Power Over Ethernet (POE) 1 Port Passive Injector 10/100/1000 Mbps Data Rate

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TP-POE-HP-48G	TP-POE Series

Approval Agency	-	FCC, CE, FCC, TUV, TUV, UL, CSA
Compliance	-	IEEE802.3at, IEEE802.3af
Current - Output	-	1 - 800 mA
Data Rate	10 Mbps, 1000 Mbps, 100 Mbps	10 - 1000 Mbps
Data Rate	-	10 Mbps
Data Rate	-	100 Mbps
Efficiency	85 %	78 - 85 %
Efficiency	-	Level VI
Features	SCP, OCP, OVP	OCP, SCP, OVP
Input Connector	IEC 320-C8 (Power), RJ45 (Data)	RJ45 (Data, Power), IEC 320-C8 (Power), RJ45 (Data), IEC 320-C13 (Power)
Mounting Type	Desktop	Desktop
Note	-	AC Power Cord Sold Separately
Number of Ports	1	1
Operating Temperature [Max]	60 °C	50 - 80 °C
Operating Temperature [Min]	-30 ░C	-40 - -20 C
Output Connector	RJ45 (Data, Power)	RJ45 (Data, Power)
Power (Watts) - Per Port	50 W	15.8 - 100 W
Size / Dimension	-	35.6 - 45.7 mm
Size / Dimension	-	27.9 - 116.8 mm
Size / Dimension [x]	4.92 in	3.4 - 5.9 "
Size / Dimension [x]	125 mm	86.4 - 149.9 mm
Size / Dimension [y]	2.95 in	1.1 - 4.6 in
Size / Dimension [y]	75 mm	75 - 76.2 mm
Size / Dimension [z]	1.5 "	1.4 - 1.8 "
Size / Dimension [z]	38 mm	35.6 - 38 mm
Standard Number	-	60950-1
Type	Passive Injector	Passive Injector, Midspan Injector
Voltage - Input [Max]	264 VAC	36 - 264 VAC
Voltage - Input [Min]	90 VAC	22 - 100 VAC
Voltage - Output	48 V	18 - 56 V

TP-POE Series

24V 12W 10/100MB PASSIVE POE POW

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input [Max]	Voltage - Input [Min]	Mounting Type	Current - Output	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Efficiency	Output Connector	Approval Agency	Voltage - Output	Features	Type	Input Connector	Data Rate [Min]	Data Rate [Max]	Number of Ports	Power (Watts) - Per Port	Data Rate	Size / Dimension [y]	Size / Dimension [z]	Standard Number	Compliance
Tycon Systems Inc. TP-POE-24-12W	50 °C	-20 C	240 VAC	100 VAC	Desktop	500 mA	45.7 mm	27.9 mm	1.8 "	92.7 mm	3.65 "	1.1 in	83 %	RJ45 (Data, Power)	CE, FCC	24 V	OCP, SCP	Passive Injector	RJ45 (Data, Power)	10 Mbps	100 Mbps	1
Tycon Systems Inc. TP-POE-HP-48G	60 °C	-30 ░C	264 VAC	90 VAC	Desktop				1.5 "	125 mm	4.92 in	2.95 in	85 %	RJ45 (Data, Power)		48 V	OCP, OVP, SCP	Passive Injector	IEC 320-C8 (Power), RJ45 (Data)			1	50 W	10 Mbps, 100 Mbps, 1000 Mbps	75 mm	38 mm
Tycon Systems Inc. TP-POE-24G	60 °C	-30 ░C	264 VAC	90 VAC	Desktop	800 mA			1.4 "	86.4 mm	3.4 "	3 "	85 %	RJ45 (Data, Power)	FCC, TUV	24 V	OCP, OVP, SCP	Passive Injector	RJ45 (Data, Power)			1		10 Mbps, 100 Mbps, 1000 Mbps	76.2 mm	35.6 mm	60950-1	IEEE802.3af, IEEE802.3at
Tycon Systems Inc. TP-POE-HP-48DX2	50 °C	-25 °C	264 VAC	90 VAC	Desktop	450 mA	38.1 mm	76.2 mm	1.5 "	124.5 mm	4.9 in	3 "	80 %	RJ45 (Data, Power)		56 V	OCP, OVP, SCP	Passive Injector	IEC 320-C13 (Power), RJ45 (Data)	10 Mbps	100 Mbps	1	50 W					IEEE802.3af, IEEE802.3at
Tycon Systems Inc. TP-POE-24	60 °C	-30 ░C	264 VAC	90 VAC	Desktop	800 mA			1.4 "	86.4 mm	3.4 "	3 "	85 %	RJ45 (Data, Power)	FCC, TUV	24 V	OCP, OVP, SCP	Passive Injector	RJ45 (Data, Power)			1		10 Mbps, 100 Mbps, 1000 Mbps	76.2 mm	35.6 mm		IEEE802.3af, IEEE802.3at
Tycon Systems Inc. TP-POE-1824	60 °C	-30 ░C	60 V	36 V	Desktop	670 mA			1.4 "	86.4 mm	3.4 "	3 "		RJ45 (Data, Power)	FCC, TUV	18 V, 24 V	OCP, OVP, SCP	Passive Injector	RJ45 (Data, Power)	10 Mbps	100 Mbps	1			76.2 mm	35.6 mm		IEEE802.3af, IEEE802.3at
Tycon Systems Inc. TP-POE++10G	50 °C	-20 C	240 VAC	100 VAC	Desktop	1 A	35.6 mm	63.5 mm	1.4 "	139.7 mm	5.5 in	2.5 in	84 %	RJ45 (Data, Power)	CE, FCC	56 V	OCP, SCP	Midspan Injector	RJ45 (Data, Power)			1	56 W	10 Mbps, 100 Mbps, 1000 Mbps				IEEE802.3at
Tycon Systems Inc. TP-POE-HP-56G-FBN	60 °C	-40 °C	264 VAC	90 VAC	Desktop	1.07 A	38.1 mm	76.2 mm	1.5 "	124.5 mm	4.9 in	3 "	80 %	RJ45 (Data, Power)	FCC, TUV	56 V	OCP, OVP, SCP	Passive Injector	RJ45 (Data, Power)			1	60 W	10 Mbps, 100 Mbps, 1000 Mbps
Tycon Systems Inc. TP-POE-48D	60 °C	-30 ░C	264 VAC	90 VAC	Desktop	330 mA			1.4 "	86.4 mm	3.4 "	3 "	85 %	RJ45 (Data, Power)	FCC, TUV	48 V	OCP, OVP, SCP	Passive Injector	RJ45 (Data, Power)			1	15.8 W	10 Mbps, 100 Mbps, 1000 Mbps	76.2 mm	35.6 mm		IEEE802.3af, IEEE802.3at
Tycon Systems Inc. TP-POE-HP-48GD	60 °C	-30 ░C	264 VAC	90 VAC	Desktop		38.1 mm	76.2 mm	1.5 "	124.5 mm	4.9 in	3 "	85 %	RJ45 (Data, Power)	FCC, TUV	56 V	OCP, OVP, SCP	Passive Injector	RJ45 (Data, Power)			1	35 W	10 Mbps, 100 Mbps, 1000 Mbps			60950-1	IEEE802.3af, IEEE802.3at
