TP-POE-HP-48DX2

Obsolete

Tycon Systems Inc.

110/220VAC IN, QTY 2 25W 802.3AF

Deep-Dive with AI

Search across all available documentation for this part.

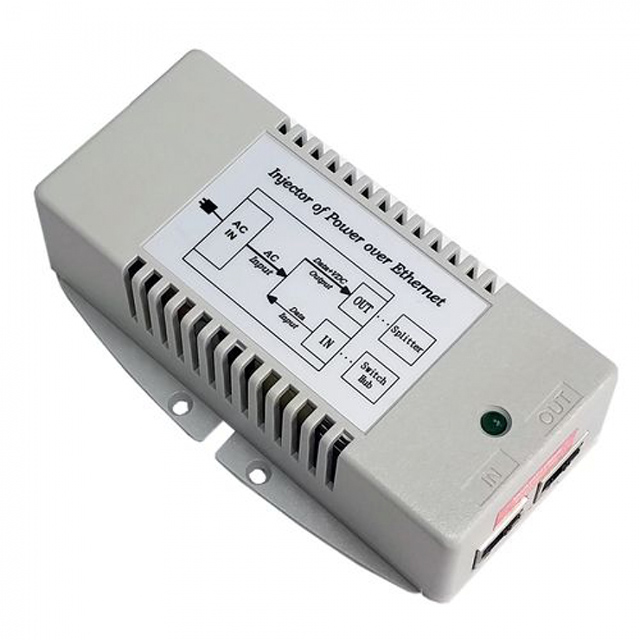

TP-POE-HP-48DX2

Obsolete

Tycon Systems Inc.

110/220VAC IN, QTY 2 25W 802.3AF

Deep-Dive with AI

Specifications Pricing Series Description Documents
