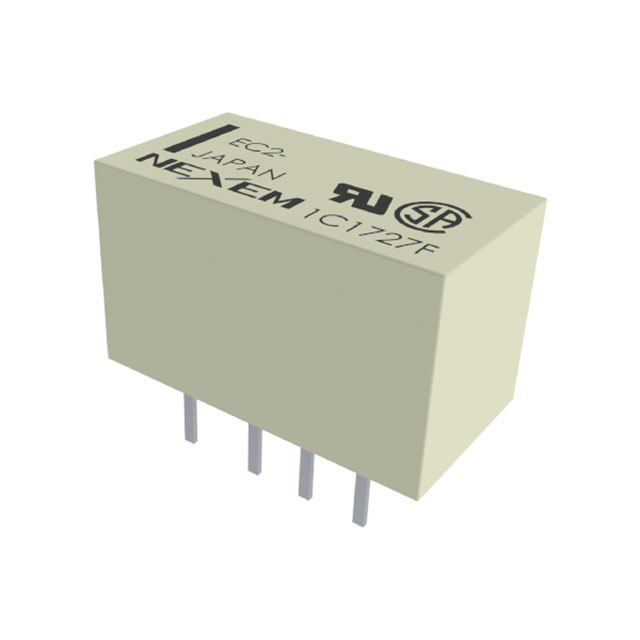

EC2-4.5SNJ
ActiveKEMET
RELAY
Deep-Dive with AI
Search across all available documentation for this part.
EC2-4.5SNJ
ActiveKEMET
RELAY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EC2-4.5SNJ |
|---|---|
| null | |
EC2-4.5 Series
| Part | Contact Form | Operate Time | Relay Type | Coil Voltage | Contact Rating (Current) | Approval Agency | Load - Max Switching | Termination Style | Coil Current | Release Time | Contact Material | Coil Resistance | Must Operate Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Coil Type | Mounting Type | Switching Voltage | Must Release Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
KEMET | DPDT (2 Form C) | 2 ms | General Purpose | 4.5 VDC | 2 A | CSA TUV UL | 440 W 500 VA | PC Pin | 31.1 mA | 1 ms | Gold Alloy Silver Alloy | 145 Ohms | 3.38 VDC | 85 °C | -40 °C | Latching Dual Coil | Through Hole | 220 VDC 250 VAC | |
KEMET | |||||||||||||||||||
KEMET | DPDT (2 Form C) | 2 ms | General Purpose | 4.5 VDC | 2 A | CSA TUV UL | 440 W 500 VA | PC Pin | 31.1 mA | 1 ms | Gold Alloy Silver Alloy | 145 Ohms | 3.38 VDC | 85 °C | -40 °C | Non Latching | Through Hole | 220 VDC 250 VAC | 0.45 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 61 | $ 1.17 | |
Description
General part information
EC2-4.5 Series
Relay
Documents
Technical documentation and resources
No documents available
