BFB04512MD-F00

Active

Delta Electronics

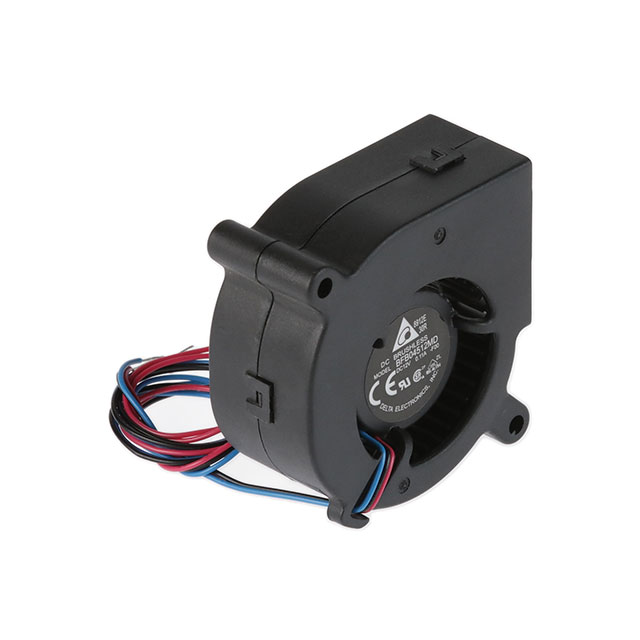

FAN BLOWER 45X20MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BFB04512MD-F00

Active

Delta Electronics

FAN BLOWER 45X20MM 12VDC WIRE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BFB04512MD-F00

Air Flow	0.118 m³/min
Air Flow	4.2 CFM
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	70 mA
Fan Type	Blower
Features	Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	20000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	21 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	840 mW
RPM	3300 RPM
Size / Dimension	Square/Rounded
Size / Dimension [x]	45 mm
Size / Dimension [z]	45 mm
Static Pressure	67 Pa
Static Pressure	0.269 in H2O
Termination	3 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.8 VDC
Voltage Range [Min]	5 VDC
Weight	0.038 lb
Weight	17.24 g
Width [y]	20 mm

BFB04512 Series

Part	Width [y]	Size / Dimension [z]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Approval Agency	Air Flow	Air Flow	Voltage Range [Max]	Voltage Range [Min]	Current Rating (Amps)	RPM	Lifetime @ Temp.	Noise	Material - Blade	Material - Frame	Features	Power (Watts)	Termination	Weight	Weight	Voltage - Rated	Bearing Type	Fan Type	Static Pressure	Static Pressure	Size / Dimension
Delta Electronics BFB04512HHA-DV52	10.3 mm	45 mm	45 mm	70 °C	70 °C	-10 °C	-10 °C	CE CSA UL VDE	0.101 m³/min	3.6 CFM	13.5 VDC	5 VDC	140 mA	6100 RPM	3600 Hrs	36 dB	Plastic	Plastic	Locked Rotor Protection PWM Control Speed Sensor (Tach)	1.68 W	4 Wire Leads	0.04 lb	18.14 g	12 VDC	Ball	Blower
Delta Electronics BFB04512HHA-AR00	10 mm	45 mm	45 mm	70 °C	70 °C	-10 °C	-10 °C	CE CSA UL VDE	0.092 m³/min	3.3 CFM	13.2 VDC	7 V		6500 RPM	30000 Hrs	35.5 dB	Plastic	Plastic	Locked Rotor Sensor		3 Wire Leads	0.029 lb	13.15 g	12 VDC	Ball	Blower
Delta Electronics BFB04512HA-CF00	10.3 mm	45 mm	45 mm	70 °C	70 °C	-10 °C	-10 °C	CE CSA UL VDE	0.084 m³/min	3 CFM	13.2 VDC	5 VDC		5150 RPM	30000 Hrs	30.5 dB	Plastic	Plastic	Locked Rotor Protection Speed Sensor (Tach)		3 Wire Leads	0.04 lb	18.14 g	12 VDC	Ball	Blower	97.4 Pa	0.391 in H2O
Delta Electronics BFB04512MD-F00	20 mm	45 mm	45 mm	70 °C	70 °C	-10 °C	-10 °C	CE CSA UL VDE	0.118 m³/min	4.2 CFM	13.8 VDC	5 VDC	70 mA	3300 RPM	20000 Hrs	21 dB(A)	Plastic	Plastic	Locked Rotor Protection Speed Sensor (Tach)	840 mW	3 Wire Leads	0.038 lb	17.24 g	12 VDC	Ball	Blower	67 Pa	0.269 in H2O	Square/Rounded
Delta Electronics BFB04512HHA-C	10.3 mm	45 mm	45 mm	70 °C	70 °C	-10 °C	-10 °C	CE CSA UL VDE	0.098 mł/min	3.5 CFM	13.2 VDC	5 VDC		5900 RPM	30000 Hrs	35.5 dB	Plastic	Plastic		1.56 W	2 Wire Leads	0.04 lb	18.14 g	12 VDC	Ball	Blower	139.5 Pa	0.56 in H2O
Delta Electronics BFB04512HD-R00	20 mm	45 mm	45 mm	70 °C	70 °C	-10 °C	-10 °C	CE CSA UL VDE	0.137 m³/min	4.9 CFM	13.8 VDC	5 VDC	100 mA	3800 RPM	20000 Hrs	24.5 dB(A)	Plastic	Plastic	Locked Rotor Sensor	1.2 W	3 Wire Leads	0.038 lb	17.24 g	12 VDC	Ball	Blower	91.2 Pa	0.366 in H2O	Square/Rounded
Delta Electronics BFB04512HHA-CZ0T
Delta Electronics BFB04512HA-C	10.3 mm	45 mm	45 mm	70 °C	70 °C	-10 °C	-10 °C	CE CSA UL VDE	0.084 m³/min	3 CFM	13.2 VDC	5 VDC		5150 RPM	30000 Hrs	30.5 dB	Plastic	Plastic			2 Wire Leads	0.04 lb	18.14 g	12 VDC	Ball	Blower	97.4 Pa	0.391 in H2O
Delta Electronics BFB04512MD	20 mm	45 mm	45 mm	70 °C	70 °C	-10 °C	-10 °C	CE CSA UL VDE	0.118 m³/min	4.2 CFM	13.8 VDC	5 VDC	70 mA	3300 RPM	20000 Hrs	21 dB(A)	Plastic	Plastic		840 mW	2 Wire Leads	0.038 lb	17.24 g	12 VDC	Ball	Blower	67 Pa	0.269 in H2O	Square/Rounded
Delta Electronics BFB04512VHDX01	20 mm	45 mm	45 mm	70 °C	70 °C	-10 °C	-10 °C	CSA UR VDE	0.168 m³/min	6 CFM	13.2 VDC	5 VDC		4500 RPM	70000 Hrs	30.5 dB	Plastic	Plastic	Locked Rotor Protection Speed Sensor (Tach)	1.92 W	3 Wire Leads	0.038 lb	17.24 g	12 VDC	Ball	Blower	138.7 Pa	0.557 in H2O	Square/Rounded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 14.59
		10	$ 11.97
		25	$ 11.06
		50	$ 10.41
		100	$ 9.80
		250	$ 9.05
		500	$ 9.01

Description

General part information

BFB04512 Series

Fan Blower 12VDC Square/Rounded - 45mm L x 45mm H Ball 4.2 CFM (0.118m³/min) 3 Wire Leads
