BFB04512HHA-DV52

Active

Delta Electronics

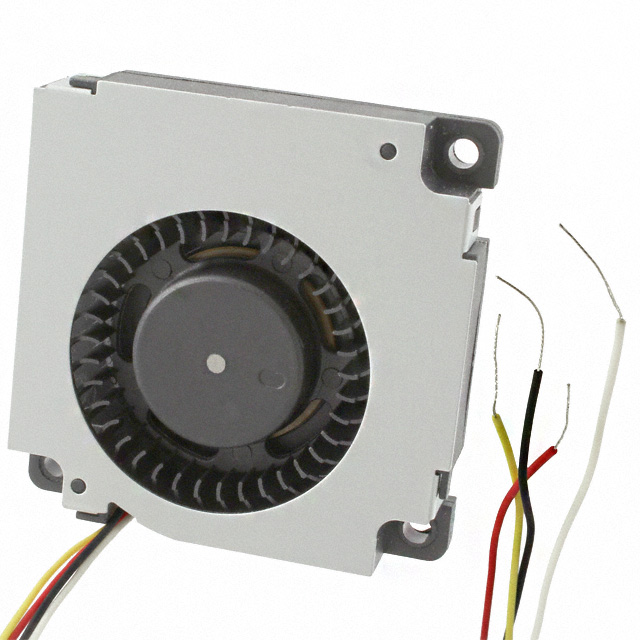

FAN BLOWER 45X10.3MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFans, Electric - Component UL Cert Fans VDE Cert +2

BFB04512HHA-DV52

Active

Delta Electronics

FAN BLOWER 45X10.3MM 12VDC WIRE

Deep-Dive with AI

DocumentsFans, Electric - Component UL Cert Fans VDE Cert +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BFB04512HHA-DV52

Air Flow	0.101 m³/min
Air Flow	3.6 CFM
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	140 mA
Fan Type	Blower
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Lifetime @ Temp.	3600 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	36 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	1.68 W
RPM	6100 RPM
Size / Dimension [x]	45 mm
Size / Dimension [z]	45 mm
Termination	4 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.5 VDC
Voltage Range [Min]	5 VDC
Weight	0.04 lb
Weight	18.14 g
Width [y]	10.3 mm

BFB04512 Series

Part	Width [y]	Size / Dimension [z]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Approval Agency	Air Flow	Air Flow	Voltage Range [Max]	Voltage Range [Min]	Current Rating (Amps)	RPM	Lifetime @ Temp.	Noise	Material - Blade	Material - Frame	Features	Power (Watts)	Termination	Weight	Weight	Voltage - Rated	Bearing Type	Fan Type	Static Pressure	Static Pressure	Size / Dimension
Delta Electronics BFB04512HHA-DV52	10.3 mm	45 mm	45 mm	70 °C	70 °C	-10 °C	-10 °C	CE CSA UL VDE	0.101 m³/min	3.6 CFM	13.5 VDC	5 VDC	140 mA	6100 RPM	3600 Hrs	36 dB	Plastic	Plastic	Locked Rotor Protection PWM Control Speed Sensor (Tach)	1.68 W	4 Wire Leads	0.04 lb	18.14 g	12 VDC	Ball	Blower
Delta Electronics BFB04512HHA-AR00	10 mm	45 mm	45 mm	70 °C	70 °C	-10 °C	-10 °C	CE CSA UL VDE	0.092 m³/min	3.3 CFM	13.2 VDC	7 V		6500 RPM	30000 Hrs	35.5 dB	Plastic	Plastic	Locked Rotor Sensor		3 Wire Leads	0.029 lb	13.15 g	12 VDC	Ball	Blower
Delta Electronics BFB04512HA-CF00	10.3 mm	45 mm	45 mm	70 °C	70 °C	-10 °C	-10 °C	CE CSA UL VDE	0.084 m³/min	3 CFM	13.2 VDC	5 VDC		5150 RPM	30000 Hrs	30.5 dB	Plastic	Plastic	Locked Rotor Protection Speed Sensor (Tach)		3 Wire Leads	0.04 lb	18.14 g	12 VDC	Ball	Blower	97.4 Pa	0.391 in H2O
Delta Electronics BFB04512MD-F00	20 mm	45 mm	45 mm	70 °C	70 °C	-10 °C	-10 °C	CE CSA UL VDE	0.118 m³/min	4.2 CFM	13.8 VDC	5 VDC	70 mA	3300 RPM	20000 Hrs	21 dB(A)	Plastic	Plastic	Locked Rotor Protection Speed Sensor (Tach)	840 mW	3 Wire Leads	0.038 lb	17.24 g	12 VDC	Ball	Blower	67 Pa	0.269 in H2O	Square/Rounded
Delta Electronics BFB04512HHA-C	10.3 mm	45 mm	45 mm	70 °C	70 °C	-10 °C	-10 °C	CE CSA UL VDE	0.098 mł/min	3.5 CFM	13.2 VDC	5 VDC		5900 RPM	30000 Hrs	35.5 dB	Plastic	Plastic		1.56 W	2 Wire Leads	0.04 lb	18.14 g	12 VDC	Ball	Blower	139.5 Pa	0.56 in H2O
Delta Electronics BFB04512HD-R00	20 mm	45 mm	45 mm	70 °C	70 °C	-10 °C	-10 °C	CE CSA UL VDE	0.137 m³/min	4.9 CFM	13.8 VDC	5 VDC	100 mA	3800 RPM	20000 Hrs	24.5 dB(A)	Plastic	Plastic	Locked Rotor Sensor	1.2 W	3 Wire Leads	0.038 lb	17.24 g	12 VDC	Ball	Blower	91.2 Pa	0.366 in H2O	Square/Rounded
Delta Electronics BFB04512HHA-CZ0T
Delta Electronics BFB04512HA-C	10.3 mm	45 mm	45 mm	70 °C	70 °C	-10 °C	-10 °C	CE CSA UL VDE	0.084 m³/min	3 CFM	13.2 VDC	5 VDC		5150 RPM	30000 Hrs	30.5 dB	Plastic	Plastic			2 Wire Leads	0.04 lb	18.14 g	12 VDC	Ball	Blower	97.4 Pa	0.391 in H2O
Delta Electronics BFB04512MD	20 mm	45 mm	45 mm	70 °C	70 °C	-10 °C	-10 °C	CE CSA UL VDE	0.118 m³/min	4.2 CFM	13.8 VDC	5 VDC	70 mA	3300 RPM	20000 Hrs	21 dB(A)	Plastic	Plastic		840 mW	2 Wire Leads	0.038 lb	17.24 g	12 VDC	Ball	Blower	67 Pa	0.269 in H2O	Square/Rounded
Delta Electronics BFB04512VHDX01	20 mm	45 mm	45 mm	70 °C	70 °C	-10 °C	-10 °C	CSA UR VDE	0.168 m³/min	6 CFM	13.2 VDC	5 VDC		4500 RPM	70000 Hrs	30.5 dB	Plastic	Plastic	Locked Rotor Protection Speed Sensor (Tach)	1.92 W	3 Wire Leads	0.038 lb	17.24 g	12 VDC	Ball	Blower	138.7 Pa	0.557 in H2O	Square/Rounded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 16.47
		10	$ 15.72
		25	$ 14.22
		50	$ 13.10
		100	$ 11.75
		250	$ 10.85
		500	$ 10.10

Description

General part information

BFB04512 Series

Fan Blower 12VDC Square - 45mm L x 45mm H Ball 3.6 CFM (0.101m³/min) 4 Wire Leads
