UF18JC12-BTHR4

Active

Mechatronics Fan Group

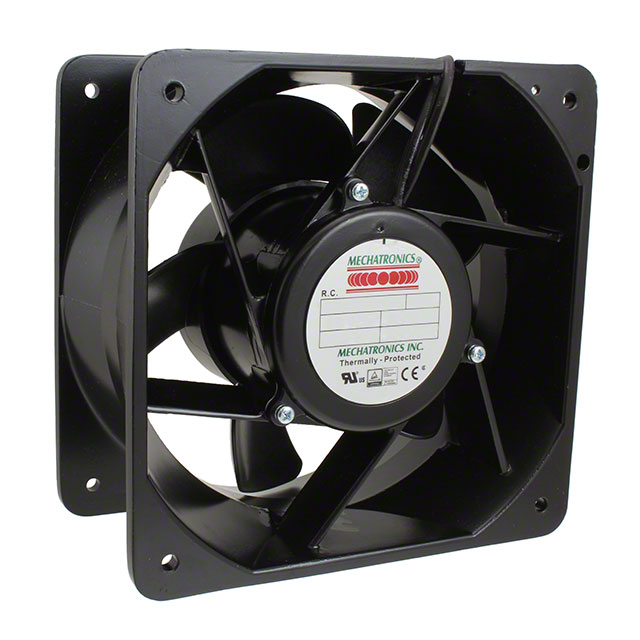

FAN AXIAL 180X90MM 115VAC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAC Axial Part Numbering Guide Installation Instructions +1

UF18JC12-BTHR4

Active

Mechatronics Fan Group

FAN AXIAL 180X90MM 115VAC

Deep-Dive with AI

DocumentsAC Axial Part Numbering Guide Installation Instructions +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UF18JC12-BTHR4	UF18J Series

Air Flow	12.88 m³/min	12.88 m³/min
Air Flow	460 CFM	460 CFM
Approval Agency	CE, cUL, TUV, UL	CE, cUL, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	0.63 A	0.31 - 0.63 A
Current Rating (Amps)	-	0.63 A
Current Rating (Amps)	-	0.31 A
Fan Type	Tubeaxial	Tubeaxial
Features	Thermal Overload Protector (TOP), Permanent Split Capacitor Motor	Thermal Overload Protector (TOP), Permanent Split Capacitor Motor, Dual Voltage
Material - Blade	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Material - Frame	Aluminum	Aluminum
Noise	59 dB(A)	59 dB(A)
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-40 °C	-40 °C
Operating Temperature [Min]	-40 °C	-40 °C
Power (Watts)	72 W	72 W
RPM	3400 RPM	3400 RPM
Size / Dimension	Square	Square
Size / Dimension [x]	180 mm	180 mm
Size / Dimension [y]	180 mm	180 mm
Static Pressure	1.06 in H2O	1.06 in H2O
Static Pressure	264 Pa	264 Pa
Termination	2 Terminals	2 Wire Leads, 4 Wire Leads, 2 Terminals
Voltage - Rated	115 VAC	115 - 230 VAC
Voltage - Rated	-	230 VAC
Voltage - Rated	-	115 VAC
Weight	4.8 lbs	4.8 lbs
Weight	2.2 kg	2.2 kg
Width [x]	90 mm	90 mm

UF18J Series

FAN AXIAL 180X90MM 230VAC WIRE

Part	Weight	Weight	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension	Current Rating (Amps)	Features	Fan Type	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Static Pressure	Static Pressure	RPM	Power (Watts)	Voltage - Rated	Air Flow	Air Flow	Noise	Material - Frame	Termination	Bearing Type	Width [x]	Approval Agency	Material - Blade	Voltage - Rated [Max]	Voltage - Rated [Min]	Current Rating (Amps) [Max]	Current Rating (Amps) [Min]
Mechatronics Fan Group UF18JC23-BWHR4	4.8 lbs	2.2 kg	180 mm	180 mm	Square	0.31 A	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	Tubeaxial	70 °C	70 °C	-40 °C	-40 °C	1.06 in H2O	264 Pa	3400 RPM	72 W	230 VAC	12.88 m³/min	460 CFM	59 dB(A)	Aluminum	2 Wire Leads	Ball	90 mm	CE, cUL, TUV, UL	Polybutylene Terephthalate (PBT)
Mechatronics Fan Group UF18JC12/23-BWHR	4.8 lbs	2.2 kg	180 mm	180 mm	Square		Dual Voltage, Permanent Split Capacitor Motor	Tubeaxial	70 °C	70 °C	-40 °C	-40 °C	1.06 in H2O	264 Pa	3400 RPM	72 W		12.88 m³/min	460 CFM	59 dB(A)	Aluminum	4 Wire Leads	Ball	90 mm	CE, cUL, TUV, UL	Polybutylene Terephthalate (PBT)	230 VAC	115 VAC	0.63 A	0.31 A
Mechatronics Fan Group UF18JC23-BTHR4	4.8 lbs	2.2 kg	180 mm	180 mm	Square	0.31 A	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	Tubeaxial	70 °C	70 °C	-40 °C	-40 °C	1.06 in H2O	264 Pa	3400 RPM	72 W	230 VAC	12.88 m³/min	460 CFM	59 dB(A)	Aluminum	2 Terminals	Ball	90 mm	CE, cUL, TUV, UL	Polybutylene Terephthalate (PBT)
Mechatronics Fan Group UF18JC12-BWHR4	4.8 lbs	2.2 kg	180 mm	180 mm	Square	0.63 A	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	Tubeaxial	70 °C	70 °C	-40 °C	-40 °C	1.06 in H2O	264 Pa	3400 RPM	72 W	115 VAC	12.88 m³/min	460 CFM	59 dB(A)	Aluminum	2 Wire Leads	Ball	90 mm	CE, cUL, TUV, UL	Polybutylene Terephthalate (PBT)
Mechatronics Fan Group UF18JC12-BTHR4	4.8 lbs	2.2 kg	180 mm	180 mm	Square	0.63 A	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	Tubeaxial	70 °C	70 °C	-40 °C	-40 °C	1.06 in H2O	264 Pa	3400 RPM	72 W	115 VAC	12.88 m³/min	460 CFM	59 dB(A)	Aluminum	2 Terminals	Ball	90 mm	CE, cUL, TUV, UL	Polybutylene Terephthalate (PBT)
Mechatronics Fan Group UF18JC20-BTHR	4.8 lbs	2.2 kg	180 mm	180 mm	Square		Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	Tubeaxial	70 °C	70 °C	-40 °C	-40 °C									Aluminum	2 Terminals	Ball	90 mm	CE, cUL, TUV, UL	Polybutylene Terephthalate (PBT)
Mechatronics Fan Group UF18JC12-BTHR	4.8 lbs	2.2 kg	180 mm	180 mm	Square	0.63 A	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	Tubeaxial	70 °C	70 °C	-40 °C	-40 °C	1.06 in H2O	264 Pa	3400 RPM	72 W	115 VAC	12.88 m³/min	460 CFM	59 dB(A)	Aluminum	2 Terminals	Ball	90 mm	CE, cUL, TUV, UL	Polybutylene Terephthalate (PBT)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 108.36
		10	$ 97.38
		30	$ 96.01
		50	$ 89.84
		100	$ 87.78

Description

General part information

UF18J Series

Fan Tubeaxial 115VAC Square - 180mm L x 180mm H Ball 460.0 CFM (12.88m³/min) 2 Terminals
