UF18JC12-BTHR

Active

Mechatronics Fan Group

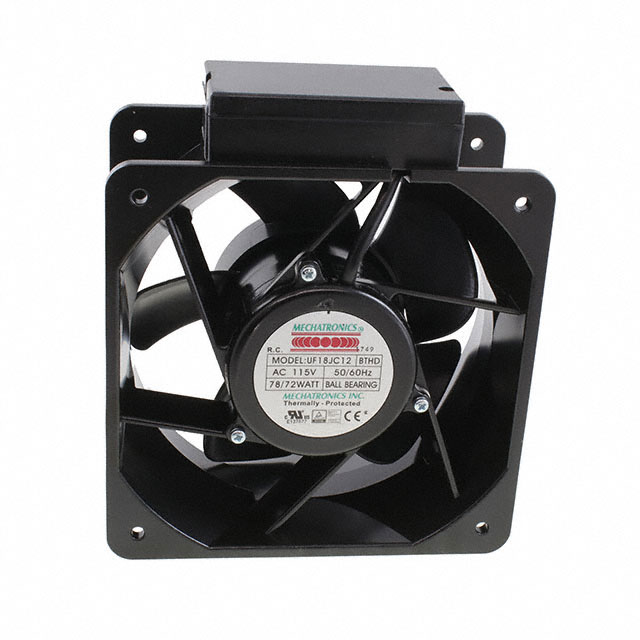

FAN AXIAL 180X90MM 115VAC TERM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet AC Axial Part Numbering Guide +1

UF18JC12-BTHR

Active

Mechatronics Fan Group

FAN AXIAL 180X90MM 115VAC TERM

Deep-Dive with AI

DocumentsDatasheet AC Axial Part Numbering Guide +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 108.36
		10	$ 97.38
		25	$ 96.01
		50	$ 89.84
		100	$ 87.78

Description

General part information

UF18J Series

Fan Tubeaxial 115VAC Square - 180mm L x 180mm H Ball 460.0 CFM (12.88m³/min) 2 Terminals

Documents

Technical documentation and resources

Datasheet

AC Axial Part Numbering Guide

Datasheet

Installation Instructions

Datasheet

Specification	UF18JC12-BTHR	UF18J Series

Air Flow	12.88 m³/min	12.88 m³/min
Air Flow	460 CFM	460 CFM
Approval Agency	CE, cUL, TUV, UL	CE, cUL, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	0.63 A	0.31 - 0.63 A
Current Rating (Amps)	-	0.63 A
Current Rating (Amps)	-	0.31 A
Fan Type	Tubeaxial	Tubeaxial
Features	Thermal Overload Protector (TOP), Permanent Split Capacitor Motor	Thermal Overload Protector (TOP), Permanent Split Capacitor Motor, Dual Voltage
Material - Blade	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Material - Frame	Aluminum	Aluminum
Noise	59 dB(A)	59 dB(A)
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-40 °C	-40 °C
Operating Temperature [Min]	-40 °C	-40 °C
Power (Watts)	72 W	72 W
RPM	3400 RPM	3400 RPM
Size / Dimension	Square	Square
Size / Dimension [x]	180 mm	180 mm
Size / Dimension [y]	180 mm	180 mm
Static Pressure	1.06 in H2O	1.06 in H2O
Static Pressure	264 Pa	264 Pa
Termination	2 Terminals	2 Wire Leads, 4 Wire Leads, 2 Terminals
Voltage - Rated	115 VAC	115 - 230 VAC
Voltage - Rated	-	230 VAC
Voltage - Rated	-	115 VAC
Weight	4.8 lbs	4.8 lbs
Weight	2.2 kg	2.2 kg
Width [x]	90 mm	90 mm

Part

Weight

Size / Dimension [y]

Size / Dimension [x]

Size / Dimension

Current Rating (Amps)

Features

Fan Type

Operating Temperature [Max]

Operating Temperature [Min]

Static Pressure

RPM

Power (Watts)

Voltage - Rated

Air Flow

Noise

Material - Frame

Termination

Bearing Type

Width [x]

Approval Agency

Material - Blade

Voltage - Rated [Max]

Voltage - Rated [Min]

Current Rating (Amps) [Max]

Current Rating (Amps) [Min]

Mechatronics Fan Group

UF18JC23-BWHR4

4.8 lbs

2.2 kg

180 mm

Square

0.31 A

Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)

Tubeaxial

70 °C

-40 °C

1.06 in H2O

264 Pa

3400 RPM

72 W

230 VAC

12.88 m³/min

460 CFM

59 dB(A)

Aluminum

2 Wire Leads

Ball

90 mm

CE, cUL, TUV, UL

Polybutylene Terephthalate (PBT)

Mechatronics Fan Group

UF18JC12/23-BWHR

4.8 lbs

2.2 kg

180 mm

Square

Dual Voltage, Permanent Split Capacitor Motor

Tubeaxial

70 °C

-40 °C

1.06 in H2O

264 Pa

3400 RPM

72 W

12.88 m³/min

460 CFM

59 dB(A)

Aluminum

4 Wire Leads

Ball

90 mm

CE, cUL, TUV, UL

Polybutylene Terephthalate (PBT)

230 VAC

115 VAC

0.63 A

0.31 A

Mechatronics Fan Group

UF18JC23-BTHR4

4.8 lbs

2.2 kg

180 mm

Square

0.31 A

Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)

Tubeaxial

70 °C

-40 °C

1.06 in H2O

264 Pa

3400 RPM

72 W

230 VAC

12.88 m³/min

460 CFM

59 dB(A)

Aluminum

2 Terminals

Ball

90 mm

CE, cUL, TUV, UL

Polybutylene Terephthalate (PBT)

Mechatronics Fan Group

UF18JC12-BWHR4

4.8 lbs

2.2 kg

180 mm

Square

0.63 A

Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)

Tubeaxial

70 °C

-40 °C

1.06 in H2O

264 Pa

3400 RPM

72 W

115 VAC

12.88 m³/min

460 CFM

59 dB(A)

Aluminum

2 Wire Leads

Ball

90 mm

CE, cUL, TUV, UL

Polybutylene Terephthalate (PBT)

Mechatronics Fan Group

UF18JC12-BTHR4

4.8 lbs

2.2 kg

180 mm

Square

0.63 A

Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)

Tubeaxial

70 °C

-40 °C

1.06 in H2O

264 Pa

3400 RPM

72 W

115 VAC

12.88 m³/min

460 CFM

59 dB(A)

Aluminum

2 Terminals

Ball

90 mm

CE, cUL, TUV, UL

Polybutylene Terephthalate (PBT)

Mechatronics Fan Group

UF18JC20-BTHR

4.8 lbs

2.2 kg

180 mm

Square

Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)

Tubeaxial

70 °C

-40 °C

Aluminum

2 Terminals

Ball

90 mm

CE, cUL, TUV, UL

Polybutylene Terephthalate (PBT)

Mechatronics Fan Group

UF18JC12-BTHR

4.8 lbs

2.2 kg

180 mm

Square

0.63 A

Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)

Tubeaxial

70 °C

-40 °C

1.06 in H2O

264 Pa

3400 RPM

72 W

115 VAC

12.88 m³/min

460 CFM

59 dB(A)

Aluminum

2 Terminals

Ball

90 mm

CE, cUL, TUV, UL

Polybutylene Terephthalate (PBT)

Part	Weight	Weight	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension	Current Rating (Amps)	Features	Fan Type	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Static Pressure	Static Pressure	RPM	Power (Watts)	Voltage - Rated	Air Flow	Air Flow	Noise	Material - Frame	Termination	Bearing Type	Width [x]	Approval Agency	Material - Blade	Voltage - Rated [Max]	Voltage - Rated [Min]	Current Rating (Amps) [Max]	Current Rating (Amps) [Min]
Mechatronics Fan Group UF18JC23-BWHR4	4.8 lbs	2.2 kg	180 mm	180 mm	Square	0.31 A	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	Tubeaxial	70 °C	70 °C	-40 °C	-40 °C	1.06 in H2O	264 Pa	3400 RPM	72 W	230 VAC	12.88 m³/min	460 CFM	59 dB(A)	Aluminum	2 Wire Leads	Ball	90 mm	CE, cUL, TUV, UL	Polybutylene Terephthalate (PBT)
Mechatronics Fan Group UF18JC12/23-BWHR	4.8 lbs	2.2 kg	180 mm	180 mm	Square		Dual Voltage, Permanent Split Capacitor Motor	Tubeaxial	70 °C	70 °C	-40 °C	-40 °C	1.06 in H2O	264 Pa	3400 RPM	72 W		12.88 m³/min	460 CFM	59 dB(A)	Aluminum	4 Wire Leads	Ball	90 mm	CE, cUL, TUV, UL	Polybutylene Terephthalate (PBT)	230 VAC	115 VAC	0.63 A	0.31 A
Mechatronics Fan Group UF18JC23-BTHR4	4.8 lbs	2.2 kg	180 mm	180 mm	Square	0.31 A	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	Tubeaxial	70 °C	70 °C	-40 °C	-40 °C	1.06 in H2O	264 Pa	3400 RPM	72 W	230 VAC	12.88 m³/min	460 CFM	59 dB(A)	Aluminum	2 Terminals	Ball	90 mm	CE, cUL, TUV, UL	Polybutylene Terephthalate (PBT)
Mechatronics Fan Group UF18JC12-BWHR4	4.8 lbs	2.2 kg	180 mm	180 mm	Square	0.63 A	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	Tubeaxial	70 °C	70 °C	-40 °C	-40 °C	1.06 in H2O	264 Pa	3400 RPM	72 W	115 VAC	12.88 m³/min	460 CFM	59 dB(A)	Aluminum	2 Wire Leads	Ball	90 mm	CE, cUL, TUV, UL	Polybutylene Terephthalate (PBT)
Mechatronics Fan Group UF18JC12-BTHR4	4.8 lbs	2.2 kg	180 mm	180 mm	Square	0.63 A	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	Tubeaxial	70 °C	70 °C	-40 °C	-40 °C	1.06 in H2O	264 Pa	3400 RPM	72 W	115 VAC	12.88 m³/min	460 CFM	59 dB(A)	Aluminum	2 Terminals	Ball	90 mm	CE, cUL, TUV, UL	Polybutylene Terephthalate (PBT)
Mechatronics Fan Group UF18JC20-BTHR	4.8 lbs	2.2 kg	180 mm	180 mm	Square		Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	Tubeaxial	70 °C	70 °C	-40 °C	-40 °C									Aluminum	2 Terminals	Ball	90 mm	CE, cUL, TUV, UL	Polybutylene Terephthalate (PBT)
Mechatronics Fan Group UF18JC12-BTHR	4.8 lbs	2.2 kg	180 mm	180 mm	Square	0.63 A	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	Tubeaxial	70 °C	70 °C	-40 °C	-40 °C	1.06 in H2O	264 Pa	3400 RPM	72 W	115 VAC	12.88 m³/min	460 CFM	59 dB(A)	Aluminum	2 Terminals	Ball	90 mm	CE, cUL, TUV, UL	Polybutylene Terephthalate (PBT)
