CDCLVD2108RGZT

Active

Texas Instruments

LOW JITTER, DUAL 1:8 UNIVERSAL-TO-LVDS BUFFER 48-VQFN -40 TO 85

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDual 1:8 Low Additive Jitter LVDS Buffer datasheet (Rev. C)Datasheet

CDCLVD2108RGZT

Active

Texas Instruments

LOW JITTER, DUAL 1:8 UNIVERSAL-TO-LVDS BUFFER 48-VQFN -40 TO 85

Deep-Dive with AI

DocumentsDual 1:8 Low Additive Jitter LVDS Buffer datasheet (Rev. C)Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CDCLVD2108RGZT	CDCLVD2108 Series

Differential - Input:Output [custom]	True	True
Differential - Input:Output [custom]	True	True
Frequency - Max [Max]	800 MHz	800 MHz
Input	LVPECL, LVCMOS, LVDS	LVPECL, LVCMOS, LVDS
Mounting Type	Surface Mount	Surface Mount
Number of Circuits	2	2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output	LVDS	LVDS

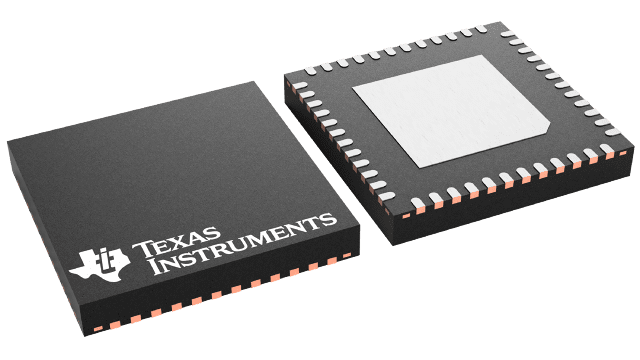

Package / Case	48-VFQFN Exposed Pad	48-VFQFN Exposed Pad
Ratio - Input:Output [custom]	1	1
Ratio - Input:Output [custom]	8	8
Supplier Device Package	48-VQFN (7x7)	48-VQFN (7x7)
Type	Fanout Buffer (Distribution)	Fanout Buffer (Distribution)
Voltage - Supply [Max]	2.625 V	2.625 V
Voltage - Supply [Min]	2.375 V	2.375 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

DigiKey	Cut Tape (CT), Digi-Reel®, Tape & Reel (TR)	1	$ 14.53
		10	$ 11.48
		25	$ 10.72
		100	$ 9.88
		250	$ 8.32
Digikey	Cut Tape (CT)	1	$ 14.11
		10	$ 12.97
		25	$ 12.43
		100	$ 10.95
	Digi-Reel®	1	$ 14.11
		10	$ 12.97
		25	$ 12.43
		100	$ 10.95
	Tape & Reel (TR)	250	$ 8.32
Mouser Electronics	N/A	1	$ 14.53
		10	$ 11.48
		25	$ 10.72
		100	$ 9.88
		250	$ 8.31
Texas Instruments	SMALL T&R	1	$ 11.04
		100	$ 9.65
		250	$ 7.44
		1000	$ 6.65

CDCLVD2108 Series

Low jitter, dual 1:8 universal-to-LVDS buffer

Part	Number of Circuits	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Output	Mounting Type	Frequency - Max [Max]	Differential - Input:Output [custom]	Differential - Input:Output [custom]	Voltage - Supply [Min]	Voltage - Supply [Max]	Type	Package / Case	Input	Ratio - Input:Output [custom]	Ratio - Input:Output [custom]
Texas Instruments CDCLVD2108RGZR	2	48-VQFN (7x7)	-40 °C	85 °C	LVDS	Surface Mount	800 MHz			2.375 V	2.625 V	Fanout Buffer (Distribution)	48-VFQFN Exposed Pad	LVCMOS, LVDS, LVPECL	1	8
Texas Instruments CDCLVD2108RGZT	2	48-VQFN (7x7)	-40 °C	85 °C	LVDS	Surface Mount	800 MHz			2.375 V	2.625 V	Fanout Buffer (Distribution)	48-VFQFN Exposed Pad	LVCMOS, LVDS, LVPECL	1	8

Description

General part information

CDCLVD2108 Series

The CDCLVD2108 clock buffer distributes two clock inputs (IN0, IN1) to a total of 16 pairs of differential LVDS clock outputs (OUT0, OUT15). Each buffer block consists of one input and 8 LVDS outputs. The inputs can either be LVDS, LVPECL, or LVCMOS.

The CDCLVD2108 is specifically designed for driving 50-transmission lines. In case of driving the inputs in single ended mode, the appropriate bias voltage (VAC_REF) should be applied to the unused negative input pin.

Using the control pin (EN) outputs can be either disabled or enabled. If the EN pin is left open all outputs are active, if switched to a logical "0" all outputs are disabled (static logical 0), if switched to a logical "1", OUT (8..15) are switched off and OUT (0..7) are active. The part supports a fail safe function. It incorporates an input hysteresis, which prevents random oscillation of the outputs in absence of an input signal.
