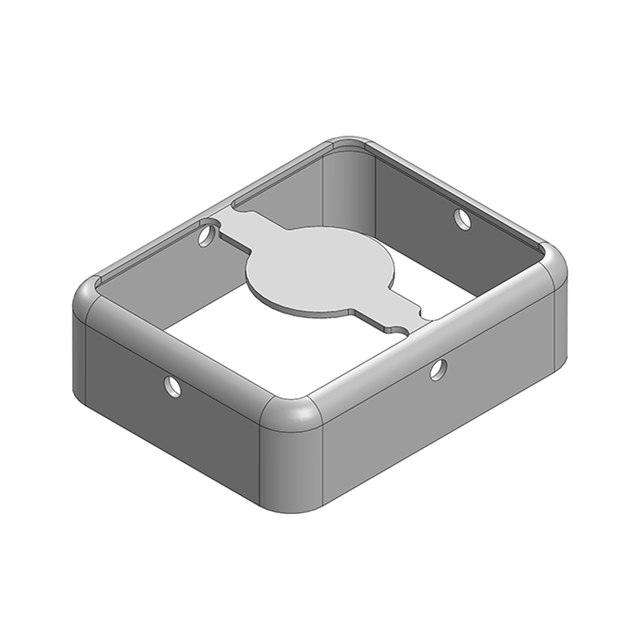

MS168-10F

Active

Masach Tech Ltd.

16.8 X 13.5 X 5MM TWO-PIECE DRAWN-SEAMLESS RF SHIELD/EMI SHIELD FRAME (CRS)

Search across all available documentation for this part.

Active

Masach Tech Ltd.

16.8 X 13.5 X 5MM TWO-PIECE DRAWN-SEAMLESS RF SHIELD/EMI SHIELD FRAME (CRS)

Technical Specifications

Parameters and characteristics commom to parts in this series

RF SHIELD 0.531"X0.661" SOLDER

Part	Height - Overall [z]	Height - Overall [z]	Length - Overall [x]	Length - Overall [x]	Mounting Type	Width - Overall [x]	Width - Overall [x]	Type	Ventilation	Height - Overall
Masach Tech Ltd. MS168-10F-NS	5 mm	0.197 in	0.661 in	16.8 mm	Solder	13.5 mm	0.531 "	Frame
Masach Tech Ltd. MS168-10F	5 mm	0.197 in	0.661 in	16.8 mm	Solder	13.5 mm	0.531 "	Frame
Masach Tech Ltd. MS168-10S-NS	5 mm	0.197 in	0.661 in	16.8 mm	Solder	13.5 mm	0.531 "	Shield, 1-Piece	Non-Vented
Masach Tech Ltd. MS168-10C-NS		0.118 in	0.677 in	17.2 mm	Snap Fit	13.9 mm	0.547 "	Cover	Non-Vented	3 mm
Masach Tech Ltd. MS168-10C		0.118 in	0.677 in	17.2 mm	Snap Fit	13.9 mm	0.547 "	Cover	Non-Vented	3 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF Shield Frame 0.531" (13.50mm) X 0.661" (16.80mm) Solder
