MS168-10C-NS

Active

Masach Tech Ltd.

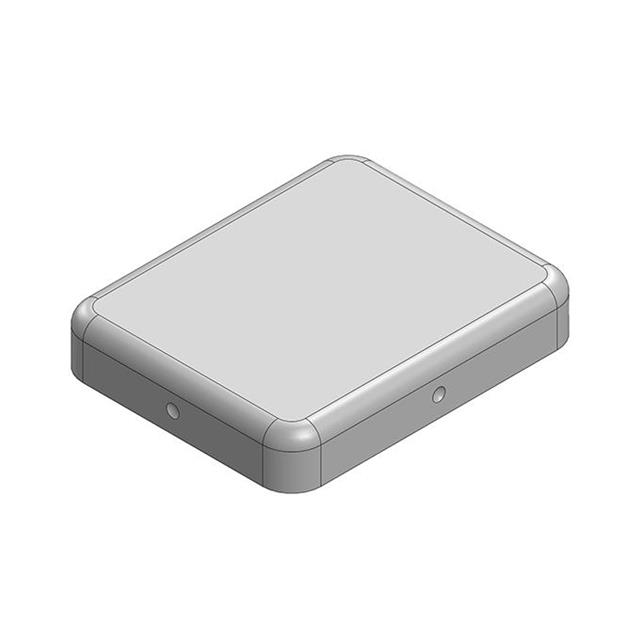

RF SHIELD 0.547X0.677" SNAP FIT

Search across all available documentation for this part.

Active

Masach Tech Ltd.

RF SHIELD 0.547X0.677" SNAP FIT

Technical Specifications

Parameters and characteristics commom to parts in this series

RF SHIELD 0.531"X0.661" SOLDER

Part	Height - Overall [z]	Height - Overall [z]	Length - Overall [x]	Length - Overall [x]	Mounting Type	Width - Overall [x]	Width - Overall [x]	Type	Ventilation	Height - Overall
Masach Tech Ltd. MS168-10F-NS	5 mm	0.197 in	0.661 in	16.8 mm	Solder	13.5 mm	0.531 "	Frame
Masach Tech Ltd. MS168-10F	5 mm	0.197 in	0.661 in	16.8 mm	Solder	13.5 mm	0.531 "	Frame
Masach Tech Ltd. MS168-10S-NS	5 mm	0.197 in	0.661 in	16.8 mm	Solder	13.5 mm	0.531 "	Shield, 1-Piece	Non-Vented
Masach Tech Ltd. MS168-10C-NS		0.118 in	0.677 in	17.2 mm	Snap Fit	13.9 mm	0.547 "	Cover	Non-Vented	3 mm
Masach Tech Ltd. MS168-10C		0.118 in	0.677 in	17.2 mm	Snap Fit	13.9 mm	0.547 "	Cover	Non-Vented	3 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF Shield Cover 0.547" (13.90mm) X 0.677" (17.20mm) Non-Vented Snap Fit

Technical documentation and resources
