SSA-LXH1025YD

Active

Lumex Opto/Components Inc.

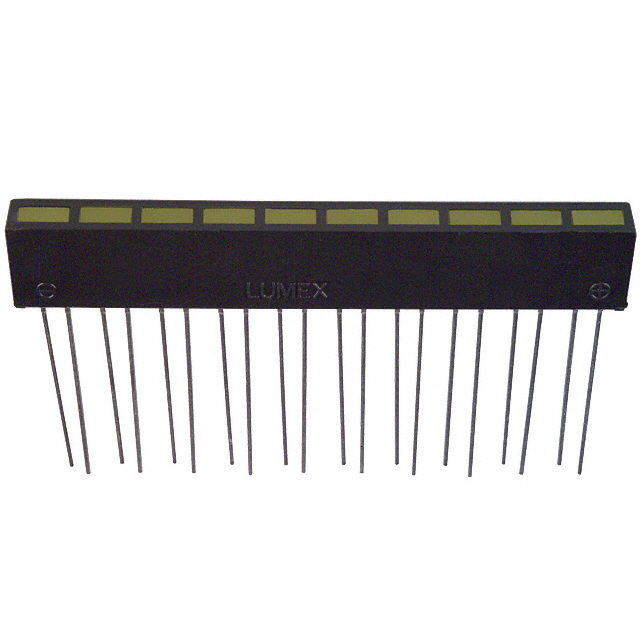

LED CBI 5X2.5MM 10-SEG YLW VERT

Deep-Dive with AI

Search across all available documentation for this part.

SSA-LXH1025YD

Active

Lumex Opto/Components Inc.

LED CBI 5X2.5MM 10-SEG YLW VERT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SSA-LXH1025YD	SSA-LXH1025 Series

Color	Yellow	Red (x 10), Yellow, Green (x 10), Green, Red
Configuration	Bar, SIP	Bar, SIP
Configuration [y]	10	10
Current	30 mA	25 - 30 mA
Current	-	20mA Green, 20mA Yellow, 20mA Red
Lens Size [x]	5 mm	5 mm
Lens Size [y]	2.5 mm	2.5 mm
Lens Style	Rectangle with Flat Top	Rectangle with Flat Top
Lens Type	Tinted, Diffused	Tinted, Diffused, Yellow, Red, Green
Millicandela Rating	10 mcd	10 - 50 mcd
Mounting Type	Through Hole	Through Hole
Viewing Angle	110 °	60 - 110 °
Voltage Rating	2.1 V	1.7 - 2.2 V
Wavelength - Peak	585 nm	565 - 660 nm

SSA-LXH1025 Series

LED CBI 5X2.5MM 10-SEG RED VERT

Part	Lens Size [y]	Lens Size [x]	Lens Type	Color	Mounting Type	Voltage Rating	Viewing Angle	Lens Style	Configuration	Configuration [y]	Wavelength - Peak	Millicandela Rating	Current	Current
Lumex Opto/Components Inc. SSA-LXH1025ID	2.5 mm	5 mm	Diffused, Tinted	Red (x 10)	Through Hole	2 V	110 °	Rectangle with Flat Top	Bar, SIP	10	635 nm	10 mcd	30 mA
Lumex Opto/Components Inc. SSA-LXH1025YD	2.5 mm	5 mm	Diffused, Tinted	Yellow	Through Hole	2.1 V	110 °	Rectangle with Flat Top	Bar, SIP	10	585 nm	10 mcd	30 mA
Lumex Opto/Components Inc. SSA-LXH1025GD	2.5 mm	5 mm	Diffused, Tinted	Green (x 10)	Through Hole		60 °	Rectangle with Flat Top	Bar, SIP	10	565 nm	10 mcd	25 mA
Lumex Opto/Components Inc. SSA-LXH1025SUGD	2.5 mm	5 mm	Diffused	Green	Through Hole		110 °	Rectangle with Flat Top	Bar, SIP	10		50 mcd
Lumex Opto/Components Inc. SSA-LXH1025SRD	2.5 mm	5 mm	Diffused, Tinted	Red (x 10)	Through Hole	1.7 V	110 °	Rectangle with Flat Top	Bar, SIP	10	660 nm	50 mcd	30 mA
Lumex Opto/Components Inc. SSA-LXH1025G8Y1I1D	2.5 mm	5 mm	Diffused, Green, Red, Yellow	Green, Red, Yellow	Through Hole	2 V, 2 V, 2.2 V	110 °	Rectangle with Flat Top	Bar, SIP	10	565 nm, 585 nm, 635 nm	10 mcd, 10 mcd, 15 mcd		20mA Green, 20mA Red, 20mA Yellow

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SSA-LXH1025 Series

LED Circuit Board Indicator LED Circuit Board Indicator Bar - 10 Wide, SIP Yellow (x 10) Diffused, Tinted 2.1V 30mA Rectangle with Flat Top 5.00mm x 2.50mm Through Hole
