SSA-LXH1025SRD

Active

Lumex Opto/Components Inc.

LED CBI 5X2.5MM 10-SEG RED VERT

Deep-Dive with AI

Search across all available documentation for this part.

SSA-LXH1025SRD

Active

Lumex Opto/Components Inc.

LED CBI 5X2.5MM 10-SEG RED VERT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SSA-LXH1025 Series

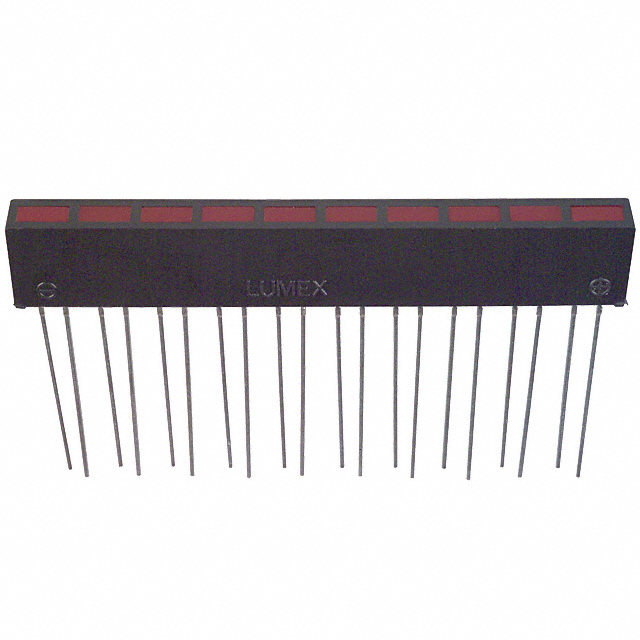

LED Circuit Board Indicator LED Circuit Board Indicator Bar - 10 Wide, SIP Red (x 10) Diffused, Tinted 1.7V 30mA Rectangle with Flat Top 5.00mm x 2.50mm Through Hole

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SSA-LXH1025SRD	SSA-LXH1025 Series

Color	Red (x 10)	Red (x 10), Yellow, Green (x 10), Green, Red
Configuration	Bar, SIP	Bar, SIP
Configuration [y]	10	10
Current	30 mA	25 - 30 mA
Current	-	20mA Green, 20mA Yellow, 20mA Red
Lens Size [x]	5 mm	5 mm
Lens Size [y]	2.5 mm	2.5 mm
Lens Style	Rectangle with Flat Top	Rectangle with Flat Top
Lens Type	Tinted, Diffused	Tinted, Diffused, Yellow, Red, Green
Millicandela Rating	50 mcd	10 - 50 mcd
Mounting Type	Through Hole	Through Hole
Viewing Angle	110 °	60 - 110 °
Voltage Rating	1.7 V	1.7 - 2.2 V
Wavelength - Peak	660 nm	565 - 660 nm

SSA-LXH1025 Series

LED CBI 5X2.5MM 10-SEG RED VERT

Part	Lens Size [y]	Lens Size [x]	Lens Type	Color	Mounting Type	Voltage Rating	Viewing Angle	Lens Style	Configuration	Configuration [y]	Wavelength - Peak	Millicandela Rating	Current	Current
Lumex Opto/Components Inc. SSA-LXH1025ID	2.5 mm	5 mm	Diffused, Tinted	Red (x 10)	Through Hole	2 V	110 °	Rectangle with Flat Top	Bar, SIP	10	635 nm	10 mcd	30 mA
Lumex Opto/Components Inc. SSA-LXH1025YD	2.5 mm	5 mm	Diffused, Tinted	Yellow	Through Hole	2.1 V	110 °	Rectangle with Flat Top	Bar, SIP	10	585 nm	10 mcd	30 mA
Lumex Opto/Components Inc. SSA-LXH1025GD	2.5 mm	5 mm	Diffused, Tinted	Green (x 10)	Through Hole		60 °	Rectangle with Flat Top	Bar, SIP	10	565 nm	10 mcd	25 mA
Lumex Opto/Components Inc. SSA-LXH1025SUGD	2.5 mm	5 mm	Diffused	Green	Through Hole		110 °	Rectangle with Flat Top	Bar, SIP	10		50 mcd
Lumex Opto/Components Inc. SSA-LXH1025SRD	2.5 mm	5 mm	Diffused, Tinted	Red (x 10)	Through Hole	1.7 V	110 °	Rectangle with Flat Top	Bar, SIP	10	660 nm	50 mcd	30 mA
Lumex Opto/Components Inc. SSA-LXH1025G8Y1I1D	2.5 mm	5 mm	Diffused, Green, Red, Yellow	Green, Red, Yellow	Through Hole	2 V, 2 V, 2.2 V	110 °	Rectangle with Flat Top	Bar, SIP	10	565 nm, 585 nm, 635 nm	10 mcd, 10 mcd, 15 mcd		20mA Green, 20mA Red, 20mA Yellow
