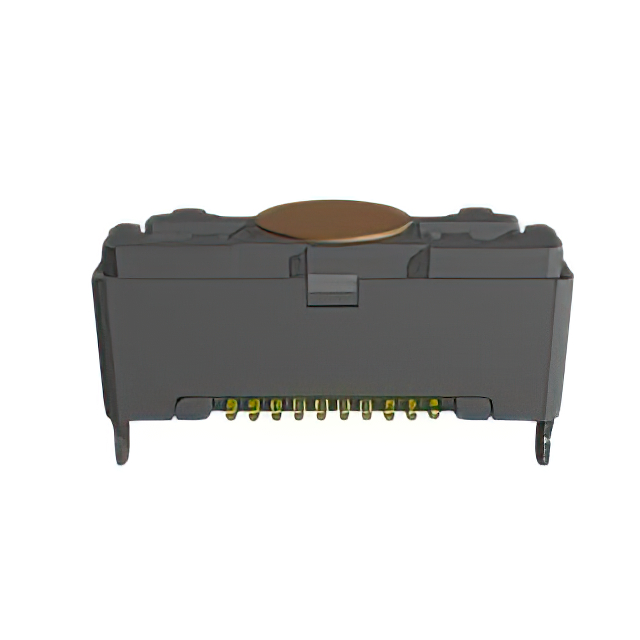

LSHM-110-02.5-F-DV-A-S-K-TR
ActiveSamtec Inc.
CONN SELF-MATE 20POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
LSHM-110-02.5-F-DV-A-S-K-TR
ActiveSamtec Inc.
CONN SELF-MATE 20POS SMD GOLD
Technical Specifications
Parameters and characteristics for this part
| Specification | LSHM-110-02.5-F-DV-A-S-K-TR |
|---|---|
| Connector Type | Self Mating, Non-Gendered, Hermaphroditic |
| Contact Finish | Gold |
| Contact Finish Thickness | 3 Áin |
| Contact Finish Thickness | 0.076 Ám |
| Features | Pick and Place, Board Guide, Shielded |
| Height Above Board [z] | 3.96 mm |
| Height Above Board [z] | 0.156 in |
| Mated Stacking Heights | 8.5 mm, 5 mm, 6.5 mm, 5.5 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 750 | $ 2.53 | |
| 1500 | $ 2.37 | |||
| 3750 | $ 2.25 | |||
Description
General part information
LSHM-110 Series
20 Position Connector Self Mating, Non-Gendered, Hermaphroditic Surface Mount Gold
