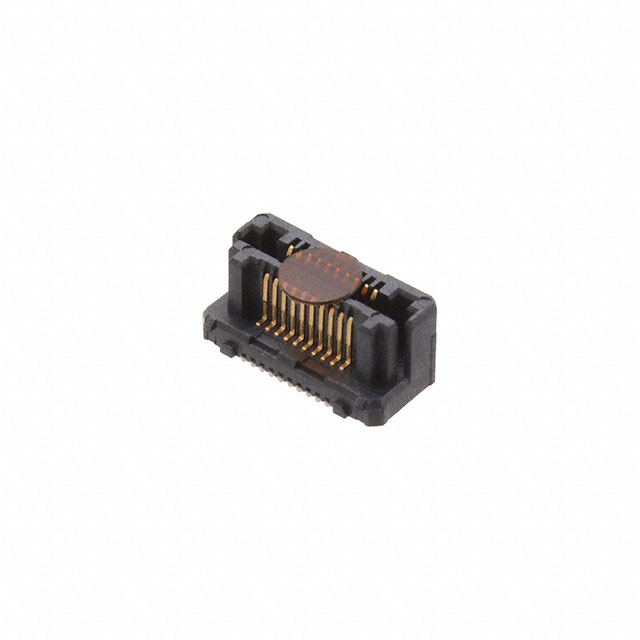

LSHM-110-03.0-L-DV-A-N-K-TR

Active

Samtec Inc.

CONN SELF-MATE 20POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsLSHM Series Other Related Documents 03 0.50 mm Razor Beam™ High-Speed Hermaphroditic Terminal/Socket Strip, Optional Shielding +3

LSHM-110-03.0-L-DV-A-N-K-TR

Active

Samtec Inc.

CONN SELF-MATE 20POS SMD GOLD

Deep-Dive with AI

DocumentsLSHM Series Other Related Documents 03 0.50 mm Razor Beam™ High-Speed Hermaphroditic Terminal/Socket Strip, Optional Shielding +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LSHM-110-03.0-L-DV-A-N-K-TR

Connector Type	Self Mating, Non-Gendered, Hermaphroditic
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Pick and Place, Board Guide
Height Above Board	0.175 in
Height Above Board	4.45 mm
Mated Stacking Heights	6 mm, 9 mm, 5.5 mm, 7 mm
Mounting Type	Surface Mount
Number of Positions	20
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

LSHM-110 Series

Part	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Mated Stacking Heights	Pitch [x]	Pitch [x]	Height Above Board	Height Above Board	Contact Finish	Connector Type	Number of Positions	Number of Rows	Features	Height Above Board	Height Above Board [z]	Height Above Board [z]
Samtec Inc. LSHM-110-04.0-L-DV-A-N-TR	10 Áin	0.25 Ám	Surface Mount	6.5 mm 7 mm 8 mm 10 mm	0.5 mm	0.02 in	0.215 in	5.46 mm	Gold	Self Mating Non-Gendered Hermaphroditic	20	2	Board Guide
Samtec Inc. LSHM-110-04.0-L-DV-A-S-K-TR	10 Áin	0.25 Ám	Surface Mount	6.5 mm 7 mm 8 mm 10 mm	0.5 mm	0.02 in	0.215 in	5.46 mm	Gold	Self Mating Non-Gendered Hermaphroditic	20	2	Board Guide Pick and Place Shielded
Samtec Inc. LSHM-110-03.0-L-DV-A-N-K-TR	10 Áin	0.25 Ám	Surface Mount	5.5 mm 6 mm 7 mm 9 mm	0.5 mm	0.02 in	4.45 mm		Gold	Self Mating Non-Gendered Hermaphroditic	20	2	Board Guide Pick and Place	0.175 in
Samtec Inc. LSHM-110-03.0-F-DV-A-S-TR	3 Áin	0.076 Ám	Surface Mount	5.5 mm 6 mm 7 mm 9 mm	0.5 mm	0.02 in	4.45 mm		Gold	Self Mating Non-Gendered Hermaphroditic	20	2	Board Guide Shielded	0.175 in
Samtec Inc. LSHM-110-01-L-DH-A-S-TR	10 Áin	0.25 Ám	Surface Mount Right Angle		0.5 mm	0.02 in	5.13 mm		Gold	Self Mating Non-Gendered Hermaphroditic	20	2	Board Guide Shielded	0.202 in
Samtec Inc. LSHM-110-02.5-F-DV-A-S-K-TR	3 Áin	0.076 Ám	Surface Mount	5 mm 5.5 mm 6.5 mm 8.5 mm	0.5 mm	0.02 in			Gold	Self Mating Non-Gendered Hermaphroditic	20	2	Board Guide Pick and Place Shielded		3.96 mm	0.156 in
Samtec Inc. LSHM-110-03.0-F-DV-A-S-K-TR	3 Áin	0.076 Ám	Surface Mount	5.5 mm 6 mm 7 mm 9 mm	0.5 mm	0.02 in	4.45 mm		Gold	Self Mating Non-Gendered Hermaphroditic	20	2	Board Guide Pick and Place Shielded	0.175 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.29
		100	$ 2.94
		250	$ 2.65
	Digi-Reel®	1	$ 3.29
		100	$ 2.94
		250	$ 2.65
	Tape & Reel (TR)	700	$ 2.30
		1400	$ 2.17
		3500	$ 2.04

Description

General part information

LSHM-110 Series

20 Position Connector Self Mating, Non-Gendered, Hermaphroditic Surface Mount Gold

Documents

Technical documentation and resources

LSHM Series Other Related Documents 03

0.50 mm Razor Beam™ High-Speed Hermaphroditic Terminal/Socket Strip, Optional Shielding

LSHM Series Datasheet 03

Datasheet

LSHM Datasheet

Datasheet
