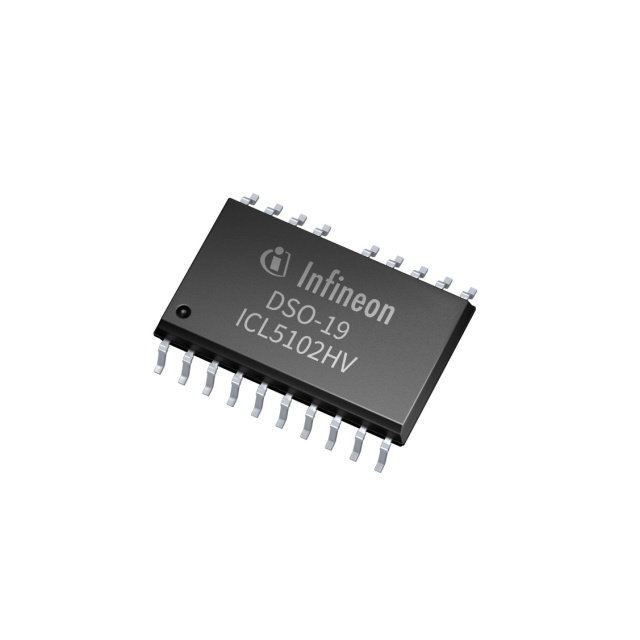

ICL5102HVXUMA1

Active

Infineon Technologies

INFINEON'S CONTROL IC ICL5102HV FOR LED DRIVERS IN AN EXCEPTIONAL ONE-CHIP SOLUTION

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

ICL5102HVXUMA1

Active

Infineon Technologies

INFINEON'S CONTROL IC ICL5102HV FOR LED DRIVERS IN AN EXCEPTIONAL ONE-CHIP SOLUTION

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ICL5102HVXUMA1

Applications	Lighting
Dimming	False
Frequency	1.3 MHz
Internal Switch(s)	False
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	20-SOIC
Package / Case	19 Leads, 0.295 in
Package / Case	7.5 mm
Supplier Device Package	PG-DSO-19-1
Topology	Half-Bridge
Type	AC DC Offline Switcher
Voltage - Supply (Max) [Max]	18 V
Voltage - Supply (Min) [Min]	8.5 V

ICL5102 Series

Part	Supplier Device Package	Voltage - Supply (Min) [Min]	Type	Package / Case	Package / Case [x]	Package / Case [y]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply (Max) [Max]	Mounting Type	Topology	Number of Outputs	Frequency	Package / Case	Package / Case	Applications	Features	Supplied Contents	Current - Output / Channel	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output [Max]	Voltage - Output [Min]	Utilized IC / Part	Outputs and Type	Outputs and Type
Infineon Technologies ICL5102XUMA1	PG-DSO-16-23	8.5 V	AC DC Offline Switcher	16-SOIC	0.154 in	3.9 mm	-40 °C	125 ¯C	18 V	Surface Mount	Half-Bridge	1	1.3 MHz
Infineon Technologies ICL5102HVXUMA1	PG-DSO-19-1	8.5 V	AC DC Offline Switcher	20-SOIC			-40 °C	150 °C	18 V	Surface Mount	Half-Bridge	1	1.3 MHz	0.295 in 19 Leads	7.5 mm	Lighting
Infineon Technologies REFICL5102U100WLCCTOBO1																	Dimmable	Board(s)	1.82 A	90 VAC	267 VAC	55 V	20 V	ICL5102	Non-Isolated	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.08
		10	$ 2.76
		25	$ 2.61
		100	$ 2.26
		250	$ 2.15
		500	$ 1.93
	Digi-Reel®	1	$ 3.08
		10	$ 2.76
		25	$ 2.61
		100	$ 2.26
		250	$ 2.15
		500	$ 1.93
	Tape & Reel (TR)	1000	$ 1.44
Newark	Each (Supplied on Cut Tape)	1	$ 3.27

Description

General part information

ICL5102 Series

ICL5102HV control IC forLED driversoffers a unique one-package solution forlighting applicationsup to 350W, supporting LLC/LCC topology. It is particularly designed to deliver best performance of total harmonic distortions (THD) and power factor (PF). Compared to level-shifter technology, the integrated coreless transformer not only further reduces the loss at high operation frequency, but also enhances the capability of handling huge negative voltage (-600V on HSGND). Reduce the number of external components to optimize form factor and reduce bill of material (BOM) with the integrated two-stage combination controller (PFC + LLC/LCC) for lighting applications. Simplify your design and scale down time-to-market. For lower AC voltage, Infineon also offersICL5102in a DSO-16 package.
