IPUSB-2WPAWPB-2M

Active

Sure-Seal Legacy

CBL USB2.0 A PLUG-B PLUG W/COUPL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

IPUSB-2WPAWPB-2M

Active

Sure-Seal Legacy

CBL USB2.0 A PLUG-B PLUG W/COUPL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 7.49

Description

General part information

IPUSB Series

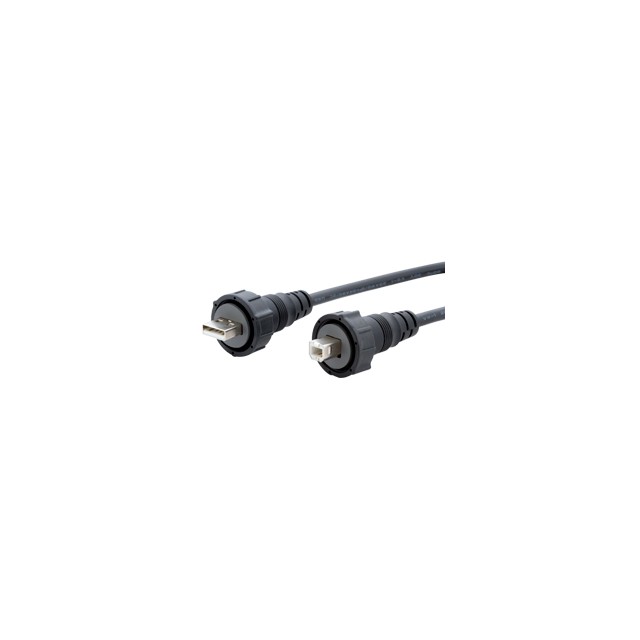

USB 2.0 Cable A Male to B Male (Circular Coupling) 6.56' (2.00m) Shielded

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	IPUSB-2WPAWPB-2M	IPUSB Series

Color	Black	Black, Multiple
Configuration	A Male to B Male	A Male to B Male, A Female to A Male (Circular Coupling), B Female to A Male (Circular Coupling), B Male to B Male (Circular Coupling), A Female to Wire Leads (Circular Coupling)
Connector Type	-	USB-A (USB TYPE-A), USB-B
Contact Finish	-	Gold
Convert From (Adapter End)	-	USB-A (USB TYPE-A), Receptacle
Convert To (Adapter End)	-	USB-A (USB TYPE-A), Receptacle
Current Rating (Amps)	-	1.5 A
Features	Data Transfer and Charge, Industrial Environments - IP67, Panel Mount	Data Transfer and Charge, Industrial Environments - IP67, Panel Mount, Circular Threaded Coupling
Gender	-	Receptacle
Ingress Protection	-	IP67 - Dust Tight, Waterproof
Length [x]	2 m	1 - 500 m
Length [x]	6.56 ft	1.64 - 6.56 ft
Mating Cycles	-	1000
Mounting Feature	-	Bulkhead - Front Side Nut; Vertical
Mounting Type	-	Through Hole, Panel Mount, Panel Mount, Bulkhead - Front Side Nut
Number of Contacts	-	4
Number of Ports	-	1
Operating Temperature	-	80 - 85 °C
Operating Temperature	-	-40 - -20 °C
Shielding	Shielded	Shielded, Unshielded
Specifications	USB 2.0	USB 2.0
Termination	-	Solder
Transfer Rate	480 Mbps	480 Mbps
Voltage - Rated	-	30 V
Wire Gauge	28 AWG, 24 AWG	20 - 28 AWG

IPUSB Series

CBL USB2.0 A PLUG-B PLUG W/COUPL

Part	Features	Color	Shielding	Specifications	Length [x]	Length [x]	Transfer Rate	Wire Gauge	Configuration	Mating Cycles	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Ingress Protection	Mounting Feature	Mounting Type	Current Rating (Amps)	Connector Type	Termination	Number of Contacts [custom]	Gender	Voltage - Rated	Number of Ports	Convert To (Adapter End)	Convert From (Adapter End)
Sure-Seal Legacy IPUSB-2WPAWPB-2M	Data Transfer and Charge, Industrial Environments - IP67, Panel Mount	Black	Shielded	USB 2.0	2 m	6.56 ft	480 Mbps	24 AWG, 28 AWG	A Male to B Male
Sure-Seal Legacy IPUSB-2WJAPA-2M	Data Transfer and Charge, Industrial Environments - IP67, Panel Mount	Black	Shielded	USB 2.0	2 m	6.56 ft	480 Mbps	24 AWG, 28 AWG	A Female to A Male (Circular Coupling)
Sure-Seal Legacy IPUSBM-2JAPC	Circular Threaded Coupling		Unshielded	USB 2.0						1000	85 °C	-40 °C	Gold	IP67 - Dust Tight, Waterproof	Bulkhead - Front Side Nut; Vertical	Panel Mount, Through Hole	1.5 A	USB-A (USB TYPE-A)	Solder	4	Receptacle	30 V	1
Sure-Seal Legacy IPUSB-2WJBPA-2M	Data Transfer and Charge, Industrial Environments - IP67, Panel Mount	Black	Shielded	USB 2.0	2 m	6.56 ft	480 Mbps	24 AWG, 28 AWG	B Female to A Male (Circular Coupling)
Sure-Seal Legacy IPUSB-2WPBPB-1M	Data Transfer and Charge, Industrial Environments - IP67, Panel Mount	Black	Shielded	USB 2.0	1 m	3.28 ft	480 Mbps	24 AWG, 28 AWG	B Male to B Male (Circular Coupling)
Sure-Seal Legacy IPUSB-2WJBPA-1M	Data Transfer and Charge, Industrial Environments - IP67, Panel Mount	Black	Shielded	USB 2.0	1 m	3.28 ft	480 Mbps	24 AWG, 28 AWG	B Female to A Male (Circular Coupling)
Sure-Seal Legacy IPUSB-2WJBPA-05M	Data Transfer and Charge, Industrial Environments - IP67, Panel Mount	Black	Shielded	USB 2.0	500 mm	1.64 ft	480 Mbps	24 AWG, 28 AWG	B Female to A Male (Circular Coupling)
Sure-Seal Legacy IPUSB-2AABHD																Panel Mount, Bulkhead - Front Side Nut								Receptacle, USB-A (USB TYPE-A)	USB-A (USB TYPE-A), Receptacle
Sure-Seal Legacy IPUSB-2JBFL	Data Transfer and Charge, Industrial Environments - IP67, Panel Mount	Multiple	Unshielded	USB 2.0	500 mm	1.64 ft	480 Mbps	20 AWG, 28 AWG	A Female to Wire Leads (Circular Coupling)
Sure-Seal Legacy IPUSBM-2WJAPA-05M	Data Transfer and Charge, Industrial Environments - IP67, Panel Mount	Black	Shielded	USB 2.0	500 mm	1.64 ft	480 Mbps	24 AWG, 28 AWG	A Female to A Male (Circular Coupling)
