IPUSBM-2JAPC

Active

Sure-Seal Legacy

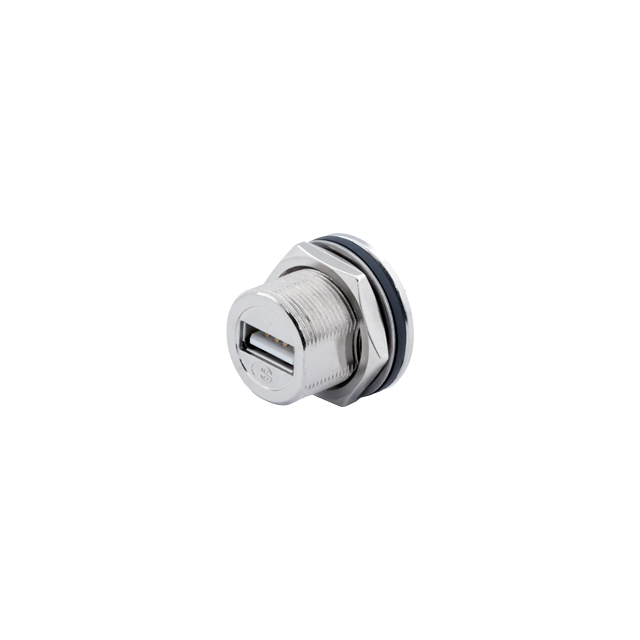

JACK PNL USB 2.0 A MTL/PC TAIL

Deep-Dive with AI

Search across all available documentation for this part.

IPUSBM-2JAPC

Active

Sure-Seal Legacy

JACK PNL USB 2.0 A MTL/PC TAIL

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

IPUSB Series

USB-A (USB TYPE-A) USB 2.0 Receptacle Connector 4 Position Panel Mount, Through Hole

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	IPUSBM-2JAPC	IPUSB Series

Color	-	Black, Multiple
Configuration	-	A Male to B Male, A Female to A Male (Circular Coupling), B Female to A Male (Circular Coupling), B Male to B Male (Circular Coupling), A Female to Wire Leads (Circular Coupling)
Connector Type	USB-A (USB TYPE-A)	USB-A (USB TYPE-A), USB-B
Contact Finish	Gold	Gold
Convert From (Adapter End)	-	USB-A (USB TYPE-A), Receptacle
Convert To (Adapter End)	-	USB-A (USB TYPE-A), Receptacle
Current Rating (Amps)	1.5 A	1.5 A
Features	Circular Threaded Coupling	Data Transfer and Charge, Industrial Environments - IP67, Panel Mount, Circular Threaded Coupling
Gender	Receptacle	Receptacle
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Length	-	1 - 500 m
Length	-	1.64 - 6.56 ft
Mating Cycles	1000	1000
Mounting Feature	Bulkhead - Front Side Nut; Vertical	Bulkhead - Front Side Nut; Vertical
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount, Panel Mount, Bulkhead - Front Side Nut
Number of Contacts [custom]	4	4
Number of Ports	1	1
Operating Temperature [Max]	85 °C	80 - 85 °C
Operating Temperature [Min]	-40 °C	-40 - -20 °C
Shielding	Unshielded	Shielded, Unshielded
Specifications	USB 2.0	USB 2.0
Termination	Solder	Solder
Transfer Rate	-	480 Mbps
Voltage - Rated	30 V	30 V
Wire Gauge	-	20 - 28 AWG

IPUSB Series

CBL USB2.0 A PLUG-B PLUG W/COUPL

Part	Features	Color	Shielding	Specifications	Length [x]	Length [x]	Transfer Rate	Wire Gauge	Configuration	Mating Cycles	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Ingress Protection	Mounting Feature	Mounting Type	Current Rating (Amps)	Connector Type	Termination	Number of Contacts [custom]	Gender	Voltage - Rated	Number of Ports	Convert To (Adapter End)	Convert From (Adapter End)
Sure-Seal Legacy IPUSB-2WPAWPB-2M	Data Transfer and Charge, Industrial Environments - IP67, Panel Mount	Black	Shielded	USB 2.0	2 m	6.56 ft	480 Mbps	24 AWG, 28 AWG	A Male to B Male
Sure-Seal Legacy IPUSB-2WJAPA-2M	Data Transfer and Charge, Industrial Environments - IP67, Panel Mount	Black	Shielded	USB 2.0	2 m	6.56 ft	480 Mbps	24 AWG, 28 AWG	A Female to A Male (Circular Coupling)
Sure-Seal Legacy IPUSBM-2JAPC	Circular Threaded Coupling		Unshielded	USB 2.0						1000	85 °C	-40 °C	Gold	IP67 - Dust Tight, Waterproof	Bulkhead - Front Side Nut; Vertical	Panel Mount, Through Hole	1.5 A	USB-A (USB TYPE-A)	Solder	4	Receptacle	30 V	1
Sure-Seal Legacy IPUSB-2WJBPA-2M	Data Transfer and Charge, Industrial Environments - IP67, Panel Mount	Black	Shielded	USB 2.0	2 m	6.56 ft	480 Mbps	24 AWG, 28 AWG	B Female to A Male (Circular Coupling)
Sure-Seal Legacy IPUSB-2WPBPB-1M	Data Transfer and Charge, Industrial Environments - IP67, Panel Mount	Black	Shielded	USB 2.0	1 m	3.28 ft	480 Mbps	24 AWG, 28 AWG	B Male to B Male (Circular Coupling)
Sure-Seal Legacy IPUSB-2WJBPA-1M	Data Transfer and Charge, Industrial Environments - IP67, Panel Mount	Black	Shielded	USB 2.0	1 m	3.28 ft	480 Mbps	24 AWG, 28 AWG	B Female to A Male (Circular Coupling)
Sure-Seal Legacy IPUSB-2WJBPA-05M	Data Transfer and Charge, Industrial Environments - IP67, Panel Mount	Black	Shielded	USB 2.0	500 mm	1.64 ft	480 Mbps	24 AWG, 28 AWG	B Female to A Male (Circular Coupling)
Sure-Seal Legacy IPUSB-2AABHD																Panel Mount, Bulkhead - Front Side Nut								Receptacle, USB-A (USB TYPE-A)	USB-A (USB TYPE-A), Receptacle
Sure-Seal Legacy IPUSB-2JBFL	Data Transfer and Charge, Industrial Environments - IP67, Panel Mount	Multiple	Unshielded	USB 2.0	500 mm	1.64 ft	480 Mbps	20 AWG, 28 AWG	A Female to Wire Leads (Circular Coupling)
Sure-Seal Legacy IPUSBM-2WJAPA-05M	Data Transfer and Charge, Industrial Environments - IP67, Panel Mount	Black	Shielded	USB 2.0	500 mm	1.64 ft	480 Mbps	24 AWG, 28 AWG	A Female to A Male (Circular Coupling)
